Wired Wall Touchless Switch Hand-Waving Exit Button


These types of switches are often used in public spaces, hospital, and other places where touchless operation is desirable to reduce the risk of spreading germs.

Wired Wall Touchless Switch Hand-Waving Exit Button Open Door With Led

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Wired Wall Touchless Switch Hand-Waving Exit Button With Receiver Modal No: MR-WNTEB505 Capacitive sensing distance: 5cm

Wired Wall Touchless Switch Hand-Waving Exit Button With Led

What is Hand Wave Sensor Button?

Hand Wave Sensor Button It is activated by hands waving. After correctly connecting this sensor with your power supply and access control system, when you wave your hand at the sensor, the door will turn on automatically.

Specification:

ParametersDescription
Power Supply (Transmitter)AC/DC 12-24V
Action Current42mA (when DC12V power supply)
Quiescent current7.3mA (when DC12V power supply)
Relay outputNormally open/Normally closed
Relay contact capacityDC24V 1A
Infrared modulation frequency38KHz
Response time30ms
Infrared sensing distance3-17cm adjustable
Working temperature-42ºC∼45ºC
Working humidity10-90%RH
Appearance size86 x 86mm (panel)

Wired Wall Touchless Switch Hand-Waving Exit Button

Wired Wall Touchless Switch Hand-Waving Exit Button With Led

Benefits:

MR-WNTEB505MH induction adopts infrared modulation and demodulation, which is not easy to be misjudged by interference. Non-contact induction on the front of the hand or reflective object, clean and sanitary. The sensing distance is adjustable from 3-30cm and can be adjusted by itself for different occasions. High-sensitivity infrared pair of tubes, Induction is timely and convenient.

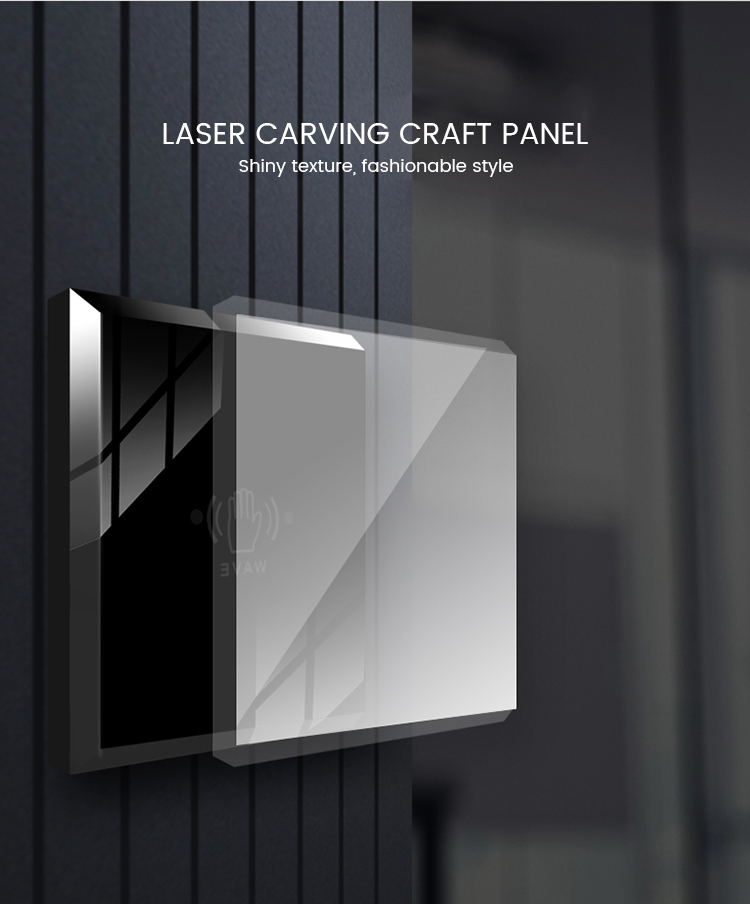

The standard Wall Touchless Switch 86 switch panel design is convenient for installation on various occasions. The panel adopts laser carving technology, which is fashionable and fashionable. The relay dry contact output is convenient for the connection with various door control equipment.

Infrared sensing distance: 3~17cm adjustable

Wired Wall Touchless Switch Hand-Waving Exit ButtonWith Led

Wired Wall Touchless Switch Hand-Waving Exit Button With Led

Wired Wall Touchless Switch Hand-Waving Exit Button With Led

Dimensions

 Wired Wall Touchless Switch Hand-Waving Exit Button With Led

Wiring Diagram

 Wired Wall Touchless Switch Hand-Waving Exit Button With Led

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
ParametersDescription
Power Supply (Transmitter)AC/DC 12-24V
Action Current42mA (when DC12V power supply)
Quiescent current7.3mA (when DC12V power supply)
Relay outputNormally open/Normally closed
Relay contact capacityDC24V 1A
Infrared modulation frequency38KHz
Response time30ms
Infrared sensing distance3-17cm adjustable
Working temperature-42ºC∼45ºC
Working humidity10-90%RH
Appearance size86 x 86mm (panel)
