Electric Lock with Key and Delay Unlock for Door
The lock is suitable for mounting on the door leaf and not suitable for mounting on the door frame.
Electric Lock with Key and Delay Unlock for Door Drop Bolt Lock
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
An electric lock with a key and a delay unlock features is a type of lock that is used to secure doors and can be opened using a physical key or an electronic keypad. The delay unlock feature allows the lock to remain locked for a set period of time after it has been opened, providing an additional layer of security. This electric lock features is often used in commercial and industrial settings where it is important to restrict access to certain areas or to prevent unauthorized entry.
Specification:
| Working voltage | DC12V±10% (DC24V±10%) |
| Working current | Starting current 1000mA working current 140mA |
| Lock delay | 0/3/6/9 seconds tunable |
| Lock tongue size | 12.6mm stainless steel lock tongue with an extension length of 15mm±1mm |

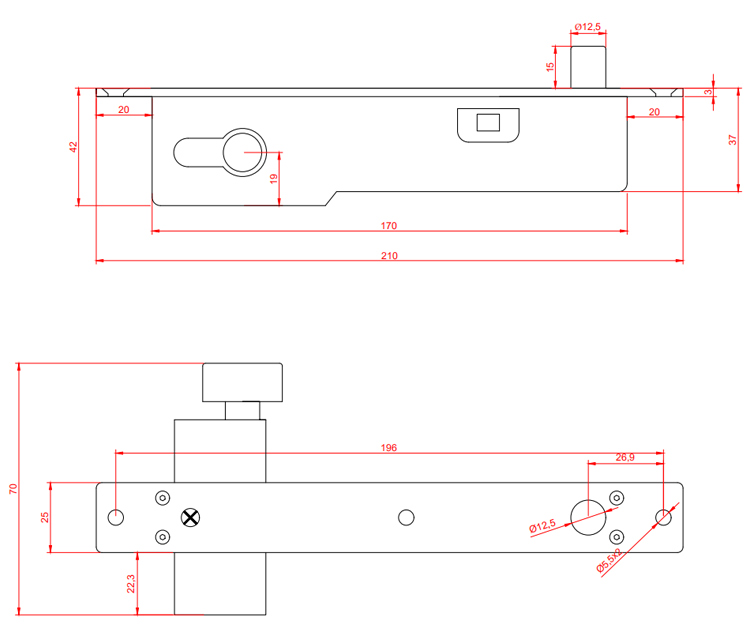

| Panel size | 210 L*25W*3H(mm) |
| The size of the lock | 170L*24W*34H(mm) |
| The size of the latch plate | 90L*25W*3H(mm) |

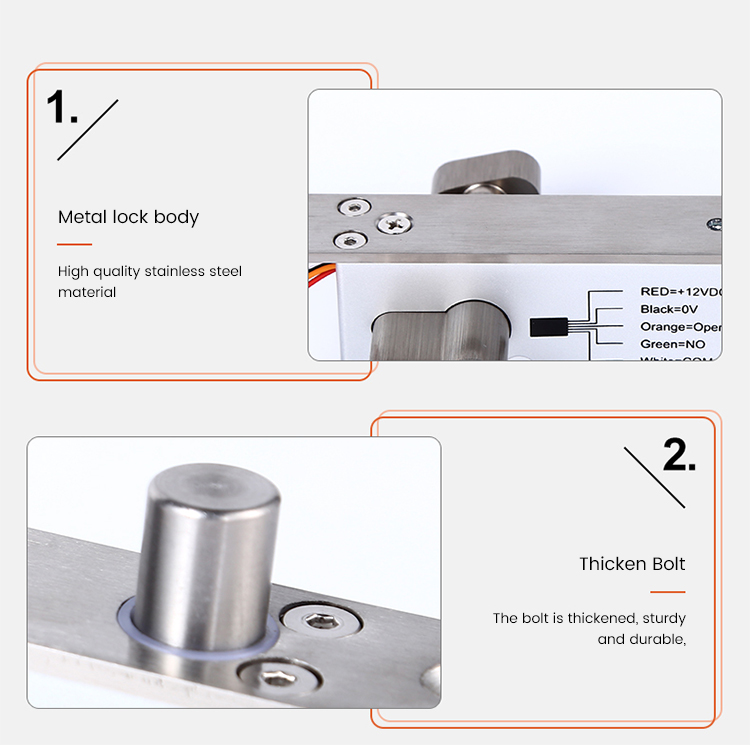

| Unlocking Mode | The black line (negative electrode) and orange line are short to open, lock, LED display, latch state display, lock tongue retraction is red, lock tongue is green when extended. |
Features of Electric Lock with Key and Delay Unlock for Door:

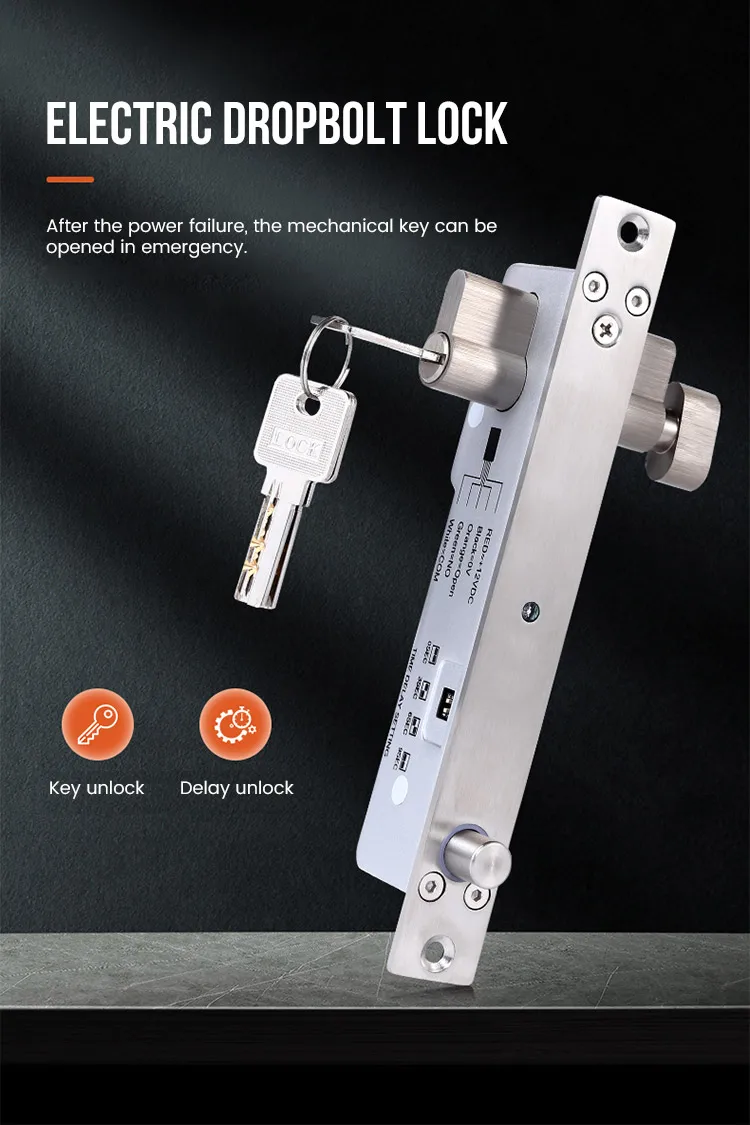

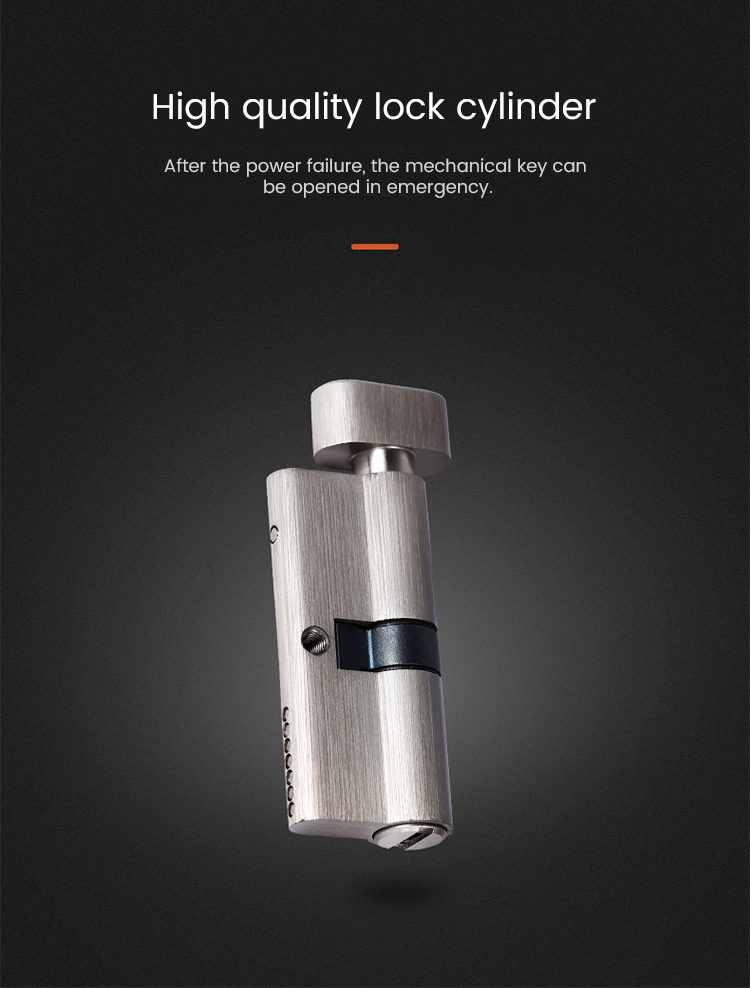

- After the power failure, the mechanical key can be opened in an emergency.
- Working voltage: DC12V ±10% (DC24V ±10%)

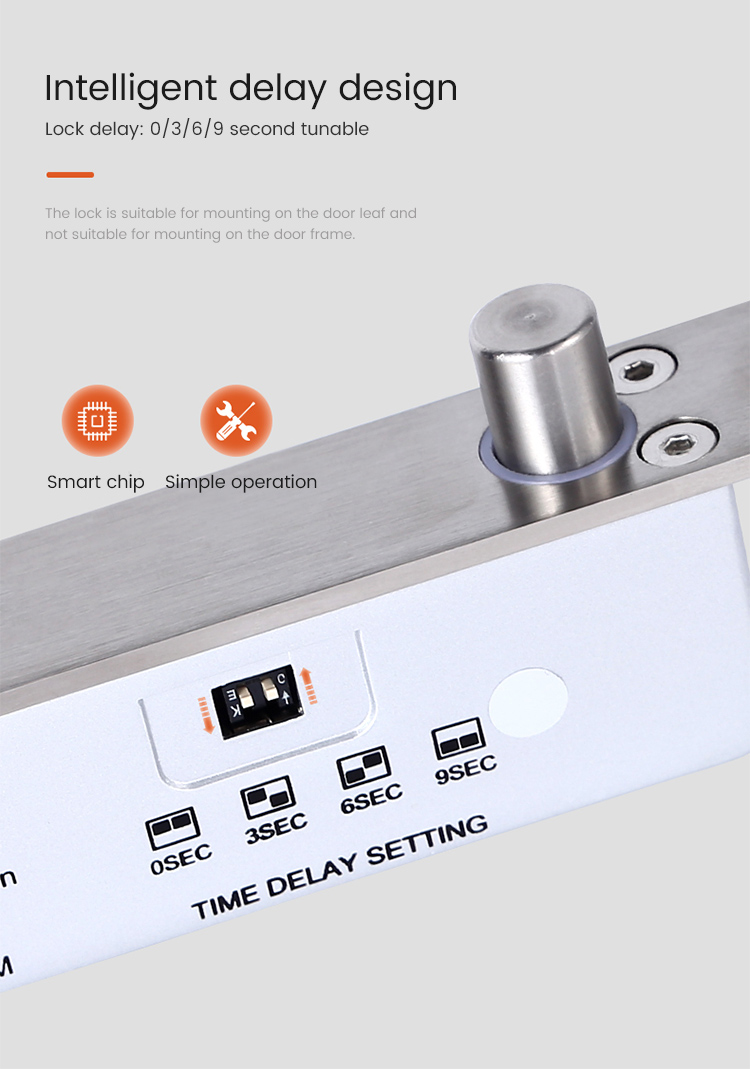

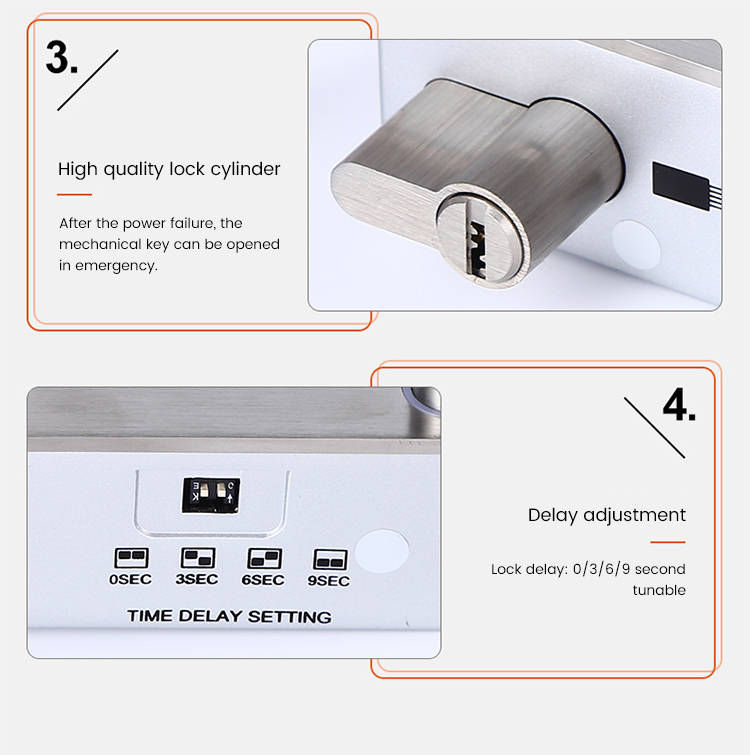

- Electric Lock delay: 0/3/6/9 second tunable
- Working current: Starting current 1000mA working current 140mA.
- The operating voltage is 12VDC
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
| Working voltage | DC12V±10% (DC24V±10%) |
| Working current | Starting current 1000mA working current 140mA |
| Lock delay | 0/3/6/9 seconds tunable |
| Lock tongue size | 12.6mm stainless steel lock tongue with an extension length of 15mm±1mm |
| Panel size | 210 L*25W*3H(mm) |
| The size of the lock | 170L*24W*34H(mm) |
| The size of the latch plate | 90L*25W*3H(mm) |
| Unlocking Mode | The black line (negative electrode) and orange line are short to open, lock, LED display, latch state display, lock tongue retraction is red, lock tongue is green when extended. |
