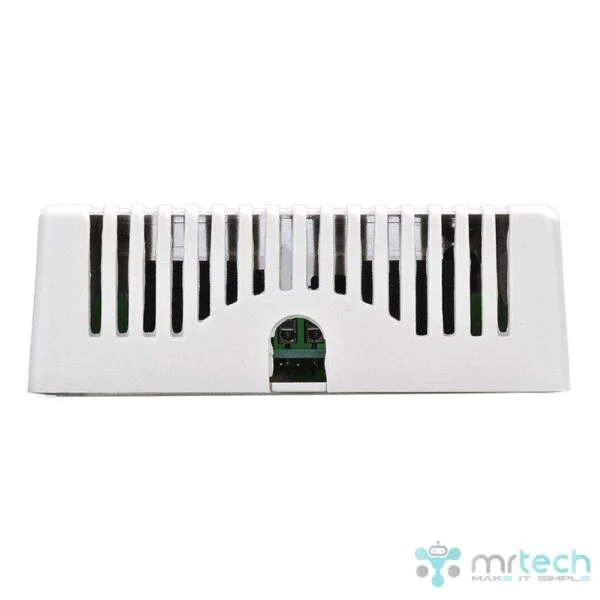

MR RL12PC-R1 RF Wireless automatic door and window 315mhz433mhz 12 channel relay controller receiver
RF remote controls are being used for more and more control systems, including televisions, sound systems, lighting, and other home environment controls. Because these remotes transmit their signals using radio frequency (RF), they do not need to be operated within the line of sight of the device they are controlling.
|Model No||MR RL12PC-R1|
|Product Name||12 Channel Relay Controller Receiver 315mhz 433mhz|
|Working Voltage||Default: 12v / Optional: 24v|
|Code Type||Learning Code|
|Remote Distance||1000m( in space place)|
|Install Way||Stiletto Installation|
|Battery Type||23A 12V|
|Application||Universal | Electronic Door | Auto Doors | Garage door | Rolling Door | Road Barrier | Motor|
Other advanced features- Such as voice control, capacitive touch, haptic feedback, and Multi-standard Connectivity are also being incorporated into these devices.
How to use the 12 Channel Relay Controller Receiver:
1)1-12 Toggle/Self-Lock: Press->On; Press again->Off (Press key 1 to learn)
Press one button once the time is working/ON Press the same button again is stop/OFF. (press 1,1 relay works, press 1 again,1
relay stops working,2-12 works like this)
2)1-12 Latched/Inter-Lock: Press->On; Press other button->Off (Press key 3 to learn)
Press one button is working/ON, press another button is stop/OFF.(press 1,1 relay works, press 2,1 relay stops working,2 relay
works,3-12 works like this)
- Pairing techniques
3)1-12 Momentary/Jog: Press and hold->On; Release->Off (Press key 2 to learn)
Keep pressing one button is working /ON. loosen your finger is stop/OFF.(press 1 and hold,1 relay works,release key 1,1 relay
stops working,2-12 works like this)
4)1-6 Toggle 7-12 Momentary (Press key 4 to learn)
5) 1 Toggle 2-12 Momentary (Press key 5 to learn)
(The original Setting is Toggle, Change it by yourself.)
|Notice||If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you!|
Product highlight of 12 Channel Relay Controller Receiver:
- Wireless control, easy to install.
- One/Several transmitters can control one / several receivers simultaneously.
- The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristics, jump line or dial the code switch coding
