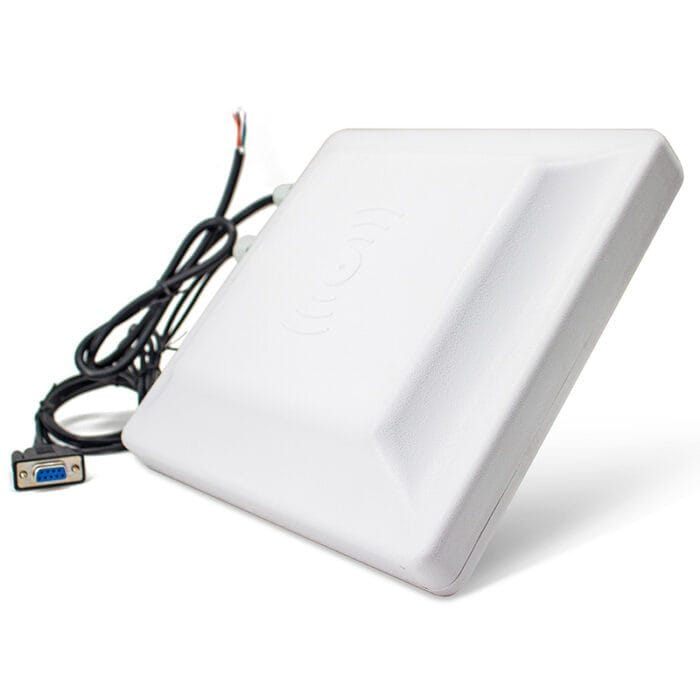

Long Range Rfid UHF Reader MR-UHFRFID5


A Long Range Rfid UHF Reader is a device using an Ultra-High Frequency (UHF) range, between 840MHz and 960 MHz its Extended read range compared to HF NFC readers enables one reader to interact with many tags at the same time, at a very high speed.

Long Range Rfid UHF Reader MR-UHFRFID5

  • Working Frequency: National standard (920~925MHz), America standard (902~928MHz), or customize other frequency ISO18000-6C(EPC GEN2)
  • Frequency Power: 0~30dBm, be adjusted by software
NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Introduction

The Long Range Rfid UHF Reader has many advantages more protocol support, fast reading, more label identification, circular polarization antenna, and compact design. This reader is widely used in all kinds of RFID systems.

Application:

  1. Logistics and Warehouse management;
  2. Parking control system;
  3. Manufacturing management;
  4. Products anti-counterfeiting detection;
  5. Other fields: club management, library, student school rolls, attendance management and swimming pool system, etc.

Specification of Long Range Rfid UHF Reader :

Working FrequencyNational standard ( 920∼925MHz), American standard (902∼928MHz, or customize other frequency
Support ProtocolISO18000-6B, ISO18000-6C (EPC GEN 2)
Frequency HoppingFHSS or fixed frequency set by software
Working WayAutomatically reading cards at a regular time, can set reading card way
Frequency Power0∼30dbm, be adjusted by software
Reading Distance1-5M
Reading SensitivityDual-polarization reading
Reading Speedone label 64-bit ID number < 6ms
AntennaBuild-in circular polarization antenna, gain 8db / build-in linear polarization antenna , gain 12dbi
InterfaceRS485, RS232,Wiegand26, Wiegand34, RJ4
Working voltageDC12V
Working Status IndicationBuzzer
Power1W
Working Temperature-20ºc∼80ºc
Storage Temperature-40ºc∼125ºc
Working Humidity20%∼95% ( no condensing)
Dimension227 x 227 x 60mm

Signal Definition:

NameCable ColorFunction
DC+12VRed+9V∼+15V
GNDBlackNegative
TXDBrownRS232 signal output (PIN2)
RXDYellowRS232 signal input (PIN3)
GNDBlueRS232 grounding (PIN5)
TriggerGreyTrig pin
DATA0/485A+GreenWiegand data 0 or 485 interface positive port
DATA1/485B-WhiteWiegand data 1 or 485 interface negative port

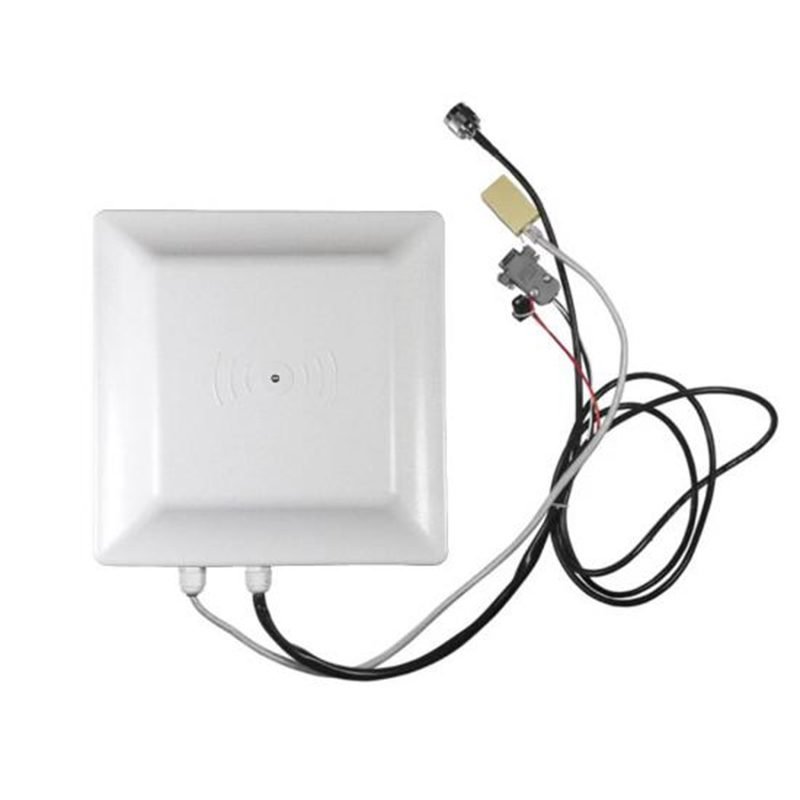

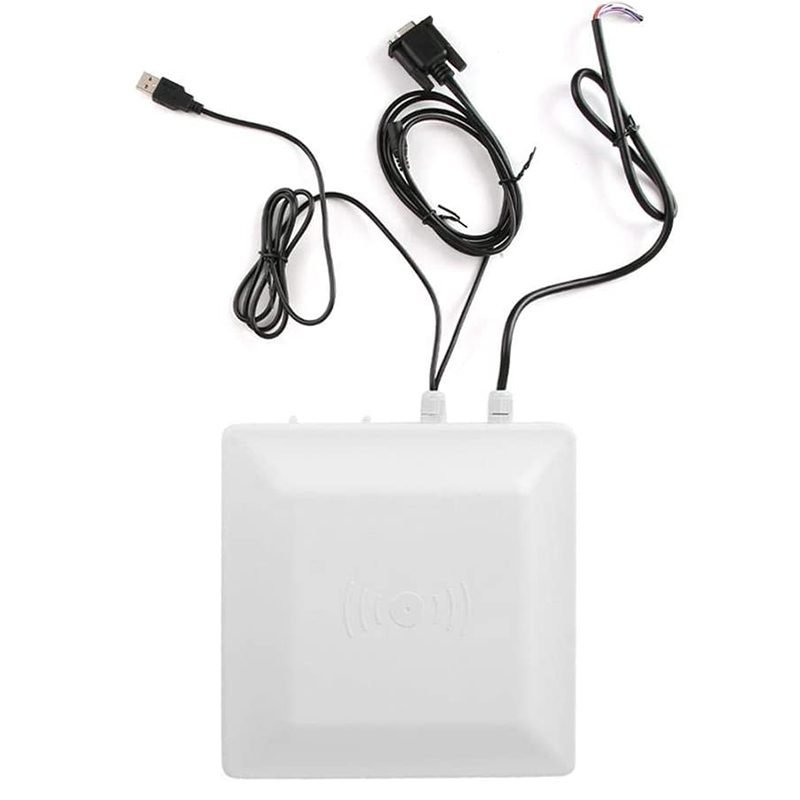

Long Range Rfid UHF Reader MR-UHFRFID5

Long Range Rfid UHF Reader MR-UHFRFID5Long Range Rfid UHF Reader MR-UHFRFID5Long Range Rfid UHF Reader MR-UHFRFID5

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
Working FrequencyNational standard ( 920∼925MHz), American standard (902∼928MHz, or customize other frequency
Support ProtocolISO18000-6B, ISO18000-6C (EPC GEN 2)
Frequency HoppingFHSS or fixed frequency set by software
Working WayAutomatically reading cards at a regular time, can set reading card way
Frequency Power0∼30dbm, be adjusted by software
Reading Distance1-5M
Reading SensitivityDual-polarization reading
Reading Speedone label 64-bit ID number < 6ms
AntennaBuild-in circular polarization antenna, gain 8db / build-in linear polarization antenna , gain 12dbi
InterfaceRS485, RS232,Wiegand26, Wiegand34, RJ4
Working voltageDC12V
Working Status IndicationBuzzer
Power1W
Working Temperature-20ºc∼80ºc
Storage Temperature-40ºc∼125ºc
Working Humidity20%∼95% ( no condensing)
Dimension227 x 227 x 60mm
