Vehicle Automatic Door Smart RFID Tag

Vehicle Automatic Door Smart RFID Tag

A vehicle automatic door smart RFID tag is a hands-free radio-frequency identification device placed on a car—usually on the windshield—that communicates with a gate or garage door reader to open it automatically

Wireless Bluetooth Connection Automatic Door Opening Smart Tag With Mobile Phone App Control For Household Car

Mobile Control Automatic Door Intelligent Tag Sets, it’s the convenient choice for your automatic door.

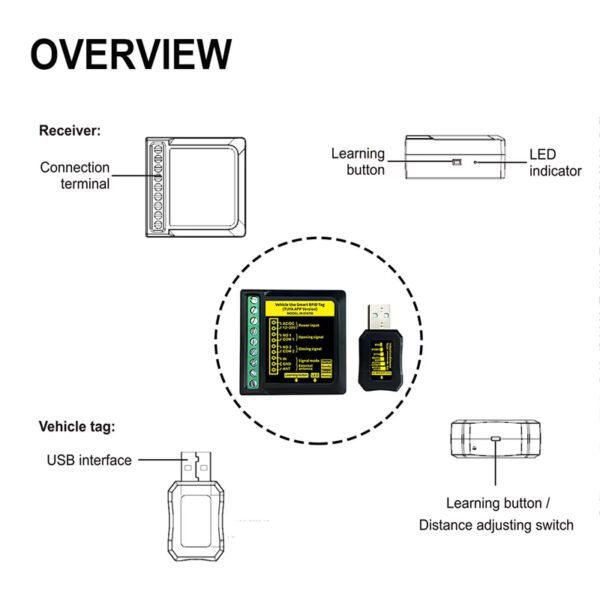

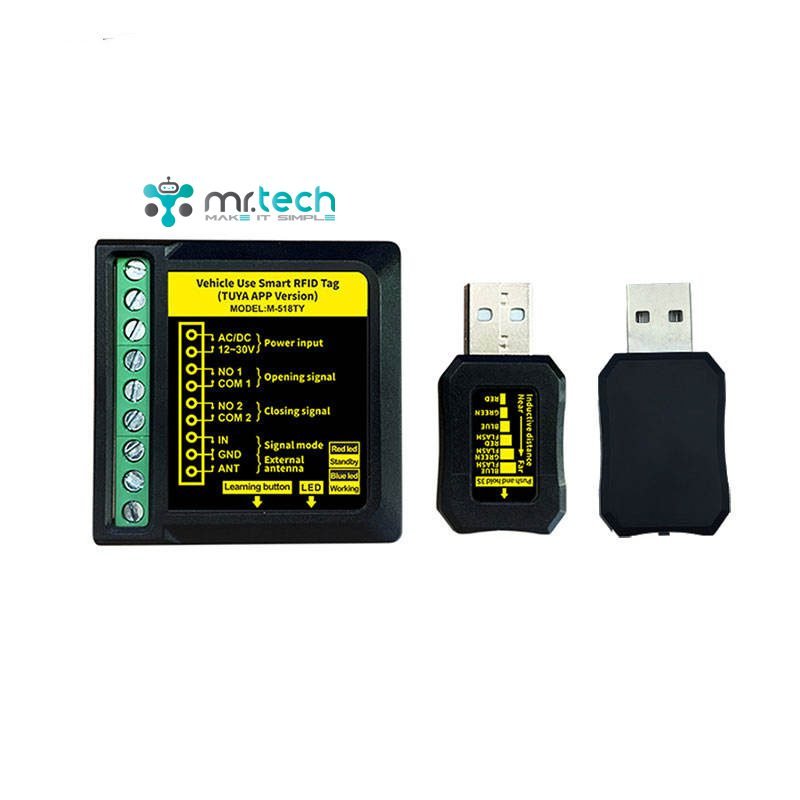

The smart vehicle tag sets is consist of a smart USB tag and a receiver. They are use RFID technology to communicate between your smart vehicle tag and the receiver to activate your automatic door. And also can be control by mobile APP.

They can replace the function of the switch and control access system. The receiver is connected with automatic door machine, the electronic tag is inserted with USB port. After the receiver and tag learn to pair, the door will open automatically when they are close to a certain range.

For the garage door, it offers the most convenient way for you to drop off your car at home. Directly drive into the garage, the door opens and closes automatically, no need to press the remote control, no need to stop and wait.

Or the tag can be matched with “TUYA” app through Bluetooth, and then open the door with this mobile app. No other inconvenient keys or controllers, directly connected to the phone by Bluetooth, then can be controlled. It’s suitable for courtyard door, garage door, warehouse door, service robots, AGV truck, etc. Also Wi-Fi version is also available.

It is compatible with any brands gate motors; All products will pass the quality test when they leave the factory and have one-year free warranty.

How It Works

• Vehicle Tag: A passive or active UHF RFID sticker (often placed on the windshield) or a plug-in USB/battery tag stores a unique digital identification code.
• Receiver/Reader: Positioned near the gate or garage entrance, the reader emits a radio frequency signal.

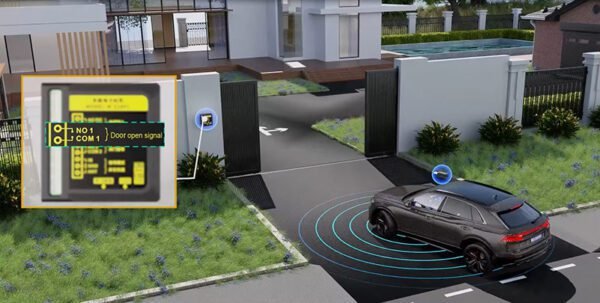

• Automatic Trigger: As the car approaches, the reader detects the tag, verifies the ID code against a database or paired system, and signals the gate motor to open automatically.
  Operating current

Features

1. Advanced software algorithm, strong anti-interference ability;
2. The response distance is adjustable in three gears, making it more flexible to use;
3. Receiver with wide voltage input design, 12~30V DC power input;
4. Unique frequency hopping technology, and high wireless transceiver stability.
5. The opening and closing of automatic door can be controlled by mobile phone APP with Bluetooth connection.
