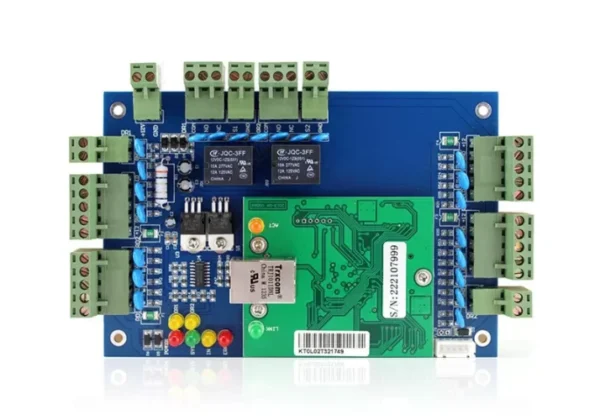

Double Door TCP/IP Network Access Control Board MR-ACB2
TCP/IP Network Access Control Board MR-ACB2 Double door Network access control board built-in TCP/IP, Support APP/4G/Web-server with free software.
Double Door TCP/IP Network Access Control Board MR-ACB2
What does Network Access Control do?
Network access control is the act of keeping unauthorized users and devices out of a private network. Double Door TCP/IP Network Access Control Board, or NAC, is one aspect of network security. There are many NAC tools available, and the functions are often performed by a network access server.
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
Specification of Double Door TCP/IP Network Access Control Board:
| Parameter | Multi Door (2) Control Panel | ||
| Model | MR-ACB-002 | ||
| Communication | TCP/IP 10M/100M adaptive | ||
| Description | Control 2 door, get in by swiping the card and get out the door by button | ||
| Size of PCB board | 160mm x 106mm | ||
| Size of case | 273mm x 228mm x 65mm | ||
| Power Supply | 12V DC 4-7A | ||
| Power Consumption of circuit board | Less than 100mA | ||
| Input Format of Reader | Wiegand 26 ( All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc ) | ||
| Quantity of Readers | 4 pcs | ||
| Door Controlled | 2 Doors | ||
| Door opening time extending setting | 1-600 seconds ( adjustable) | ||
| Max. Qty of Controller | No limit | ||
Double Door TCP/IP Network Access Control Board, Support APP/4G/Web-server with free software.
Double Door TCP/IP Network Access Control Board with SDK Free Software
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
| Model # | MR-ACB-001 | MR-ACB-002 | MR-ACB-004 |
| Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
| Description | Control 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get outdoors by button |
| Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
| Size of Case | 273mm*228mm*65mm | ||
| Power Supply | 12VDC 4-7A | ||
| Power Consumption of Circuit Board | Less than 100mA | ||
| Input Format of Reader | Wiegand 26 (All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
| Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
| Door Controlled | 1 door | 2 doors | 4 doors |
| Door opening time extending setting | 1-600 seconds(adjustable) | ||
| Max q ‘ ty of controller | No limit | ||
| Operation Temperature | -40℃~70℃ | ||
| Operation Humidity | 10-90 % RH , No Condensation | ||
| Q ‘ ty of users | 20,000 Users | ||
| Q ‘ ty of Event Buffers(offline) | 100,000 event buffers | ||
| Power interruption protection measure | High-Speed Memory, Records never lose | ||
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
| Max Distance between Controllers | TCP/IP: Depends on net coverage area | ||
| Package included: | PCB board, software, manual, certificate. carton | ||
| Alarm for long time door open, illegal break-in, intimidate | Yes | ||
| Fire and alarm linkage | If no connection with the expansion board, only has a software interface alarm and drives the computer speaker. If connected with an expansion board, is able to alarm by hardware, if connected with a strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 | ||
| The compulsive opening and close doors at a long time | Yes | ||
| Open door in the remote distance | Yes | ||
| Interlock | No | Yes | Yes |
| Anti-pass back and tail | Yes | Yes | Yes |
| Multi-card open door | Yes | ||
| Open a long time at a specified time | Yes | ||
| Electronic map | Yes | ||
| Urgency locking | Yes | ||
| First card unlocking | Yes | ||
| Unlock based on internal and external validation | Yes | ||
| Keypad (card+passwor, supper password) | Yes | ||
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
| Parameter | Multi Door (2) Control Panel | ||
| Model | MR-ACB-002 | ||
| Communication | TCP/IP 10M/100M adaptive | ||
| Description | Control 2 door, get in by swiping the card and get out the door by button | ||
| Size of PCB board | 160mm x 106mm | ||
| Size of case | 273mm x 228mm x 65mm | ||
| Power Supply | 12V DC 4-7A | ||
| Power Consumption of circuit board | Less than 100mA | ||
| Input Format of Reader | Wiegand 26 ( All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc ) | ||
| Quantity of Readers | 4 pcs | ||
| Door Controlled | 2 Doors | ||
| Door opening time extending setting | 1-600 seconds ( adjustable) | ||
| Max. Qty of Controller | No limit | ||
