Single Door TCP/IP Network Access Control Board MR-ACB1


Single Door TCP/IP Network Access Control Board the controller fits any type of installations up to 20,000 users from single building to multiple sites, spread over remote locations and linked via TCP/IP to a remote computer.

Single Door TCP/IP Network Access Control Board MR-ACB1

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Access control is focused on controlling who has access, e.g. to an office or facility. Single Door TCP/IP Network Access Control Board is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.

Single Door TCP/IP Network Access Control Board MR-ACB1 With Software For 1 Door

Specification of Single Door TCP/IP Network Access Control Board :

ParameterSingle Door Control Panel
ModelMR-ACB-001
CommunicationTCP/IP 10M/100M adaptive
DescriptionControl 1 door, get in by swiping the card and get out the door by button
Size of PCB board160mm x 106mm
Size of case273mm x 228mm x 65mm
Power Supply12V DC 4-7A
Power Consumption of circuit boardLess than 100mA
Input Format of ReaderWiegand 26 ( All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc )
Quantity of Readers 2 pcs
Door Controlled 1 Door
Door opening time extending setting 1-600 seconds ( adjustable)

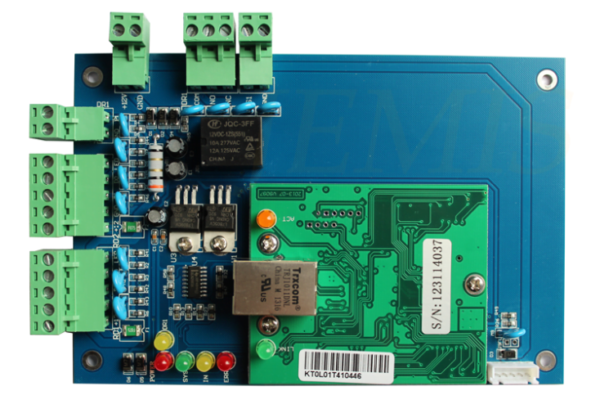

Single Door TCPIP Network Access Control Board MR-ACB1

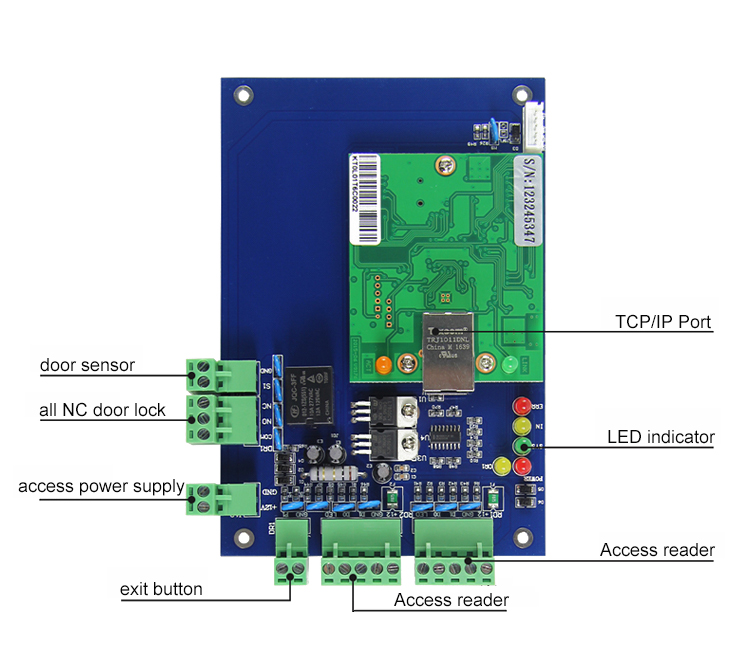

Single Door TCPIP Network Access Control Board MR-ACB1

Single Door TCP/IP Network Access Control Board Features:

  • The installation is set up within a few minutes.
  • Programming can be done locally with a laptop or remotely with any computer running the Mrtech Software.
  • In case of power cut, a back-up battery ( up to 12V-17 A/h) can ensure numerous hours of full autonomy.
  • Visual LED lights indicate the inputs, outputs and communication status.



door Access Control Board

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
ParameterSingle Door Control Panel
ModelMR-ACB-001
CommunicationTCP/IP 10M/100M adaptive
DescriptionControl 1 door, get in by swiping the card and get out the door by button
Size of PCB board160mm x 106mm
Size of case273mm x 228mm x 65mm
Power Supply12V DC 4-7A
Power Consumption of circuit boardLess than 100mA
Input Format of ReaderWiegand 26 ( All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc )
Quantity of Readers 2 pcs
Door Controlled 1 Door
Door opening time extending setting 1-600 seconds ( adjustable)
