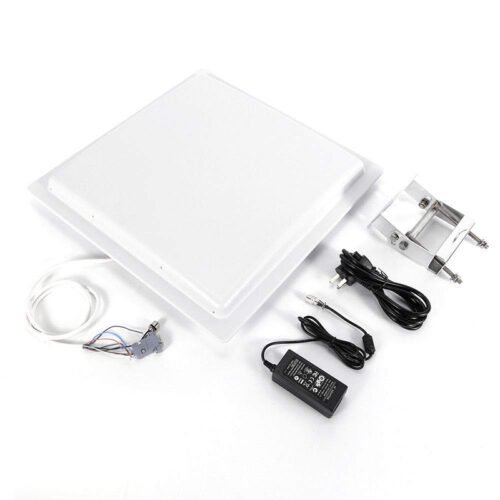

UHF Long Range Reader for Parking Lot Access Control System
high-performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces, and ease of installation. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems, production process control, and many other applications.
UHF RFID Reader 6, 15, 20 meters Reader Free SDK 860-960Mhz UHF Long Range Reader For Parking Lot Access Control System
UHF is a fixed compact reader, compatible with ISO 18000-6C and ISO 18000-6B standards, with an operating frequency of 902MHz~928MHz, exquisite appearance, and outstanding reading and writing performance. The reader can be widely used in warehousing logistics management, retail logistics center management, enterprise transportation management, and automated production line management.
Product features:
- Adopt high-performance modules;
- Low power consumption, stable and reliable reading and writing distance;
- Fast data reading rate; Read more than 200 tags per second
- Tag wake-up recognition;
- Multi-area multi-tag reading;
- Multi-protocol compatibility;
- Waterproof appearance design;
Parameters
| System parameters | ARM7 |
| Working frequency | National standard (920~ 9251Hz), American standard (902~ 928MHz), European standard (865~ 868MHz), Other multinational frequency standards (customized) |
| Recognition distance | >6 meters, >15 meters, >25 meters |
| Antenna DBI Power | 8, 8, 9 |
| Chipset | M100 same as ZKTECO, Fudan Micro (better), better than ZKTECO |
| Group reading performance | >200 tags |
| Tag protocol | Support IS01 8000-6B, IS018000-6C (EPC GEN2) protocol electronic tags |
| Frequency hopping mode | Broad spectrum frequency hopping FHSS) or fixed frequency, can be set by software; |
| Working mode | Active mode, response mode, passive mode, etc. |
| RF power | 0-33dBm (power software adjustable) |
| Antenna parameters | 9dBi linear polarization antenna (built-in) |
| Supported interface | Standard RS485, Wieg and26, Wieg and34, USB, optional RJ45, WIFI, GPRS, etc. |
| Communication | Wiegand 26/34 RS232 RS485 TCP IP and WIFI Optional (adding relay & USB is free of charge but if add USB,can not add RS232&RS485) |
| Working voltage | +12V |
| Recognition prompt | Buzzer or LED flashing |
| Power consumption | <12W |
| Frequency | 860-960mhz |
| Working temperature | -20℃ ~ +70℃ (customization required if out of range) |
| Working humidity | 20% ~ 95% (no condensation) |
| Storage temperature | -40℃ ~ +125℃ |
| Appearance/packaging size | 260*260*70mm/ 355*260*80mm |
| Net weight | 2400G |
| Gross weight | 3700KG |
| Selling Units | Single item |
| Single package size | 55X40X51 cm |
| Single gross weigh | 19 kg |
Secondary development
Provide dynamic link library (DLL) and demonstration software source code to support secondary development.
UHF RFID Remarks
The recognition distance and group reading performance depend on the tag performance and specific application scenarios and can be customized as required
UHF RFID Reader Application areas:
- Logistics and warehousing management: flow and warehousing management of goods, as well as flow management of mail, parcels, and transport luggage;
- Intelligent parking management: parking lot management and charging automation;
- Production line management: identification of fixed points in production processes;
- Product anti-counterfeiting detection: using the write protection function of the memory in the tag to identify the authenticity of the product.
- Other areas: It has been widely used in club management, library, student enrollment, consumption management, attendance management, dining management, swimming pool management, and other systems.
