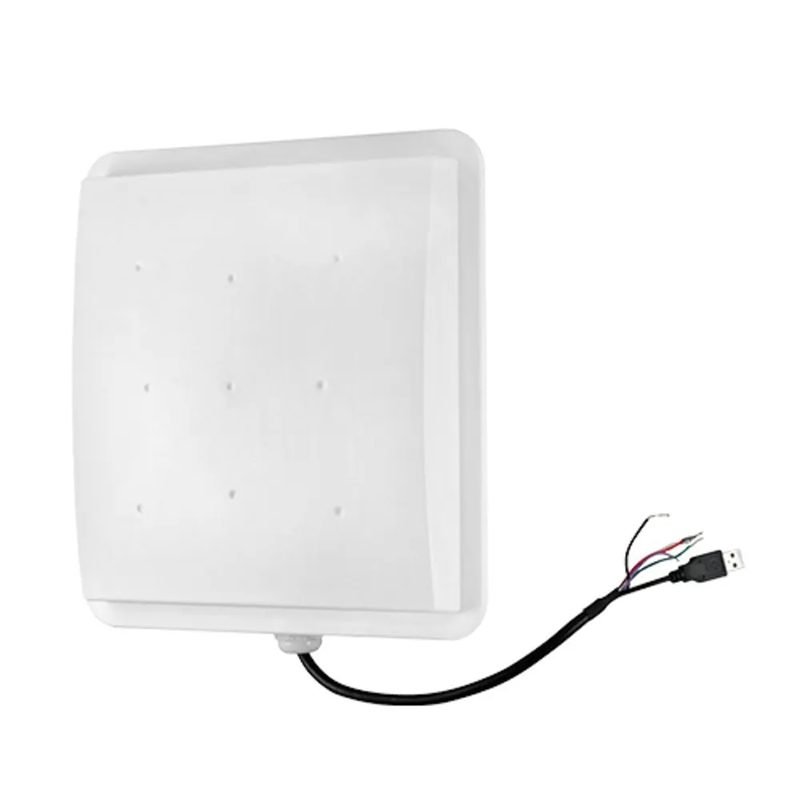

UHF Long Range RFID Reader MR-UHFRFID15
- Access Control Board : Control 1/2/4 doors, TCP/IP + WEB server + APP/3G/4G
- UHF Long Range Rfid Reader: 1-5M. 15M and 20M are available for the parking lot
- Standalone access control: Easy to install and program without software
- Fingerprint access control & time attendance: Easy to install and program with software, and keep a record in the UHF Long Range RFID Reader
- Facial access control terminals: Face to open the door or to record
- Guard tour probe: Available with GPRS,3G, and 4G to customize
- Electromagnetic lock/Bolt lock/Strike lock: available with OEM&ODM design
- Exit push button > Crypton can resell it. Original cost, no profit for valuable clients. No Problem
- No-Touch, Touch-Sensor, Stainless Steel, Aluminum, Plastic, etc
- Access Power supply : 220V / 110V, 5A / 3A
- Proximity Card Reader / Keyfobs / Cards:ID – 125KHz, Mifare – 13.56MHz, HID, Â RFID & Mifare etc
Working Frequency:
National standard (920~925MHz), America standard (902~928MHz), or customize other frequency ISO18000-6C(EPC GEN2)
Frequency Power:
0~30dBm, be adjusted by software
UHF Long Range RFID Reader Specification:
| Working Frequency | National standard ( 920∼925MHz), American standard (902∼928MHz, or customize other frequency |
| Support Protocol | ISO18000-6B, ISO18000-6C (EPC GEN 2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Working Way | Automatically reading cards at a regular time can set the reading card way |
| Frequency Power | 0∼30dbm, be adjusted by software |
| Reading Distance | 5-15M |
| Reading Sensitivity | Dual-polarization reading |
| Reading Speed | one label 64-bit ID number < 6ms |
| Antenna | Build-in circular polarization antenna, gain 8db / build-in linear polarization antenna , gain 12dbi |
| Interface | RS485, RS232,Wiegand26, Wiegand34, RJ4 |
| Working voltage | DC12V |
| Working Status Indication | Buzzer |
| Power | 1W |
| Working Temperature | -20ºc∼80ºc |
| Storage Temperature | -40ºc∼125ºc |
| Working Humidity | 20%∼95% ( no condensing) |
| Dimension | 450 x 450 x 120mm |
| Weight | 9.5 KG |

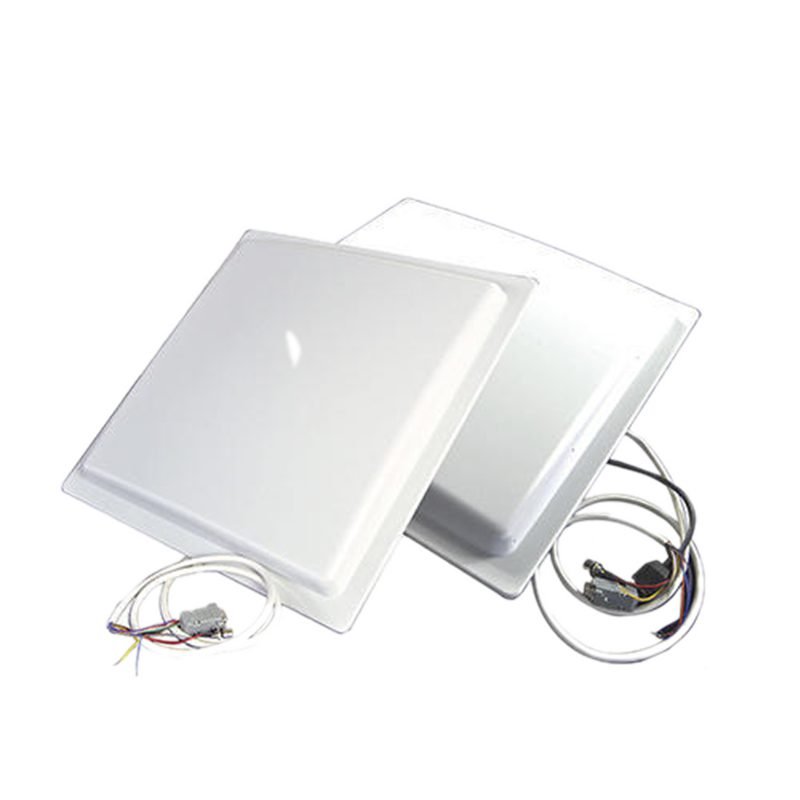

Signal Definition:
| Name | Cable Color | Function |
| DC+12V | Red | +9V∼+15V |
| GND | Black | Negative |
| TXD | Brown | RS232 signal output (PIN2) |
| RXD | Yellow | RS232 signal input (PIN3) |
| GND | Blue | RS232 grounding (PIN5) |
| Trigger | Grey | Trig pin |
| DATA0/485A+ | Green | Wiegand data 0 or 485 interface positive port |
| DATA1/485B- | White | Wiegand data 1 or 485 interface negative port |

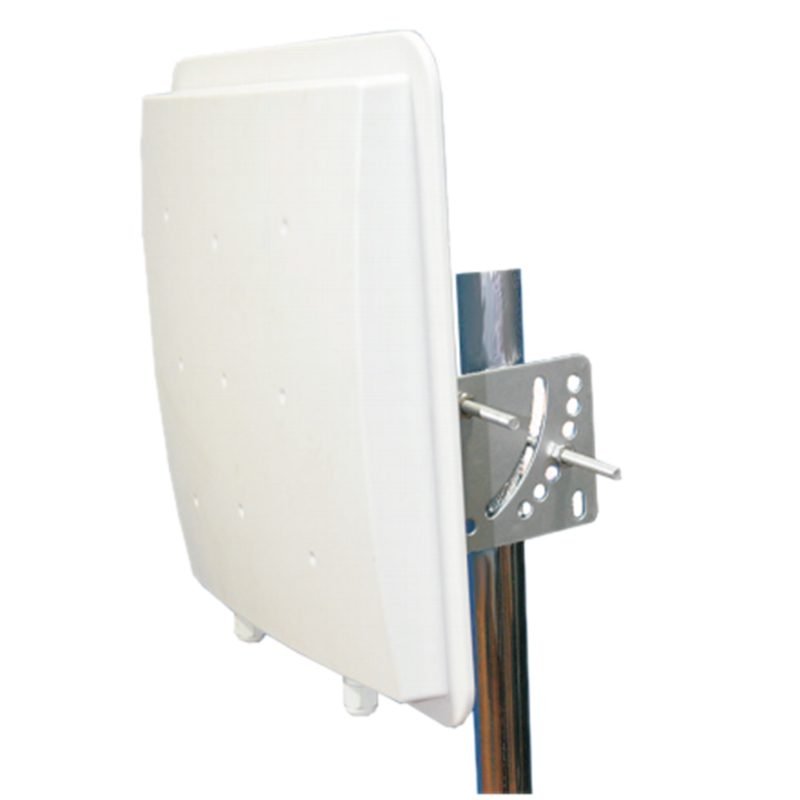

RFID Long Range Integrated Reader
MR15UR is one of the most powerful all-weather ruggedized integrated RFID readers designed with an advanced digital signal processing algorithm to support high & accurate read – write operation. It works on global UHF frequency (865-868MHz, 902-928 Mhz) standards and has a read range of Up to 15 mt (adjustable), which makes it an ideal and most widely used UHF Long Range RFID reader for applications like gate automation, parking management, personal tracking and material asset identification.
It comes with a 12dbi integrated antenna, which provides an excellent tag identification rate even in the most adverse and harsh environments. This reader supports RS232, RS485, Wiegand, TCP/IP (RJ45) interface via which the data is transmitted to the connected system. The product is IP 65 rated and has a built-in LED and buzzer. It comes with mounting accessories, an adapter, and an SDK for configuration and integration with third-party software.
