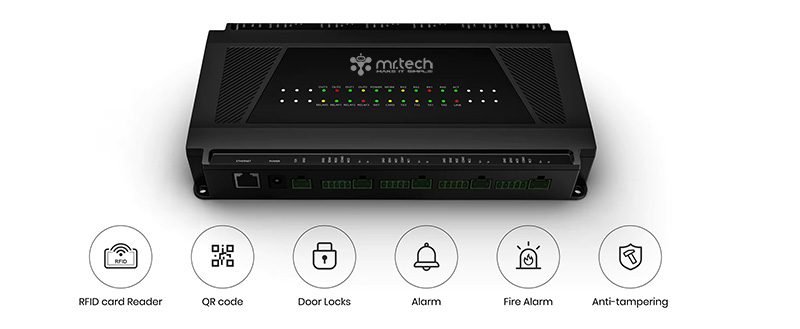

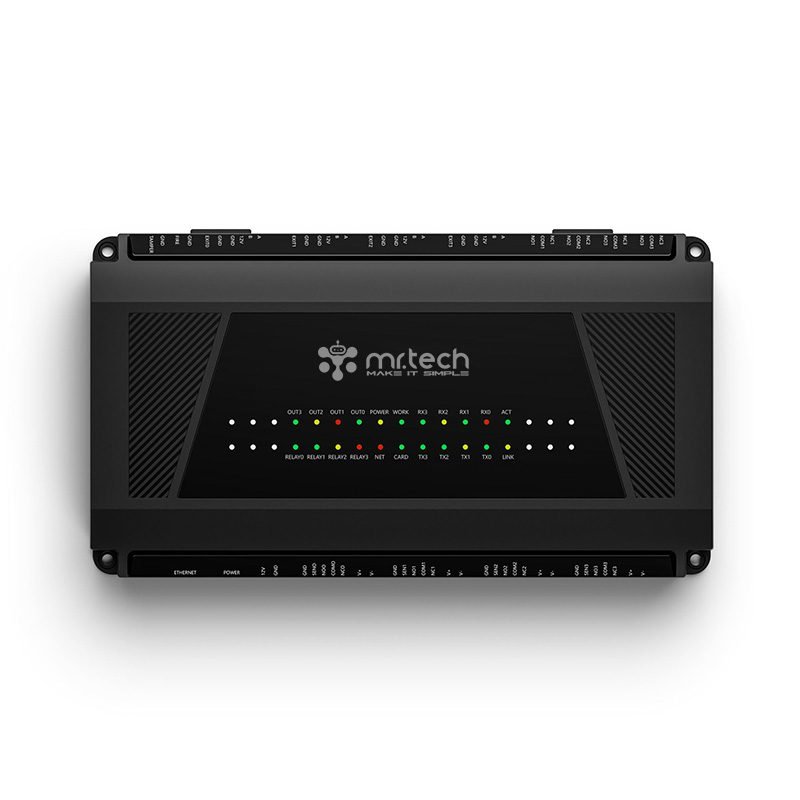

The Ethernet turnstile gate two-way access controller is one of the TCP/IP access control series. It uses standard industrial TCP/IP network communication, and the number of devices in a management system is not limited; 2 Wiegand card readers can be connected externally. It realizes 1 entrance and exit card swiping.

The access controller has a built-in web management platform, which can directly set up and manage the controller; the access controller is a new generation of access control products designed by the most advanced integrated solution. It has the characteristics of stable performance, fast communication, large capacity, strong compatibility, and convenient networking. Its excellent performance has been widely confirmed in many large-scale access control system projects and all-in-one card systems at home and abroad.

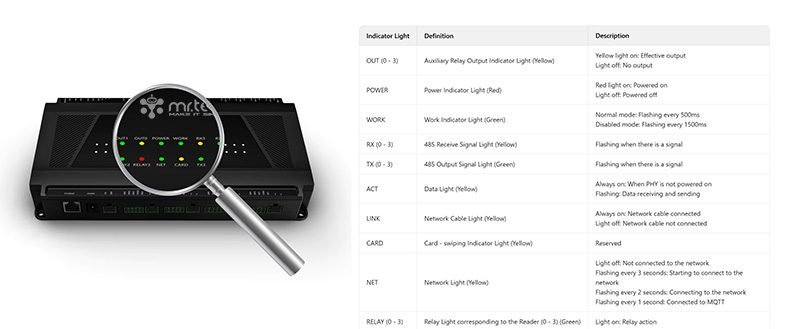

TCP IP Controller Performance Characteristics

•  Directly integrate 10M TCP/IP communication (expandable 485 communication), with excellent transmission performance
• Large-capacity Flash memory card, saves data without losing power for 10 years
• All input interfaces are equipped with optocoupler protection, making the system more stable
• The opening time of each door is up to 16 groups, and each group can choose different identification methods
• Multiple authentication methods: card, card + password, password, dual card, free passage, timing door opening and closing, timing alarm
• Support remote operation of opening and closing doors, opening and closing fire alarms, and alarms
• Support software or Web operation to lock the door; support cross-machine area anti-submarine return; support interlock
• Support multiple event alarm outputs, such as invalid card, invalid time, door alarm, and door open timeout
• Data is sent actively, and the transmission is not limited by the number of controllers
• Support to set the validity period of each card individually
• All access control equipment supports mixed installation
• The built-in WEB interface adopts a new appearance, which is smoother and more professional.
• Support 2 WG card reader interfaces, support WG26, WG34, and other protocols.

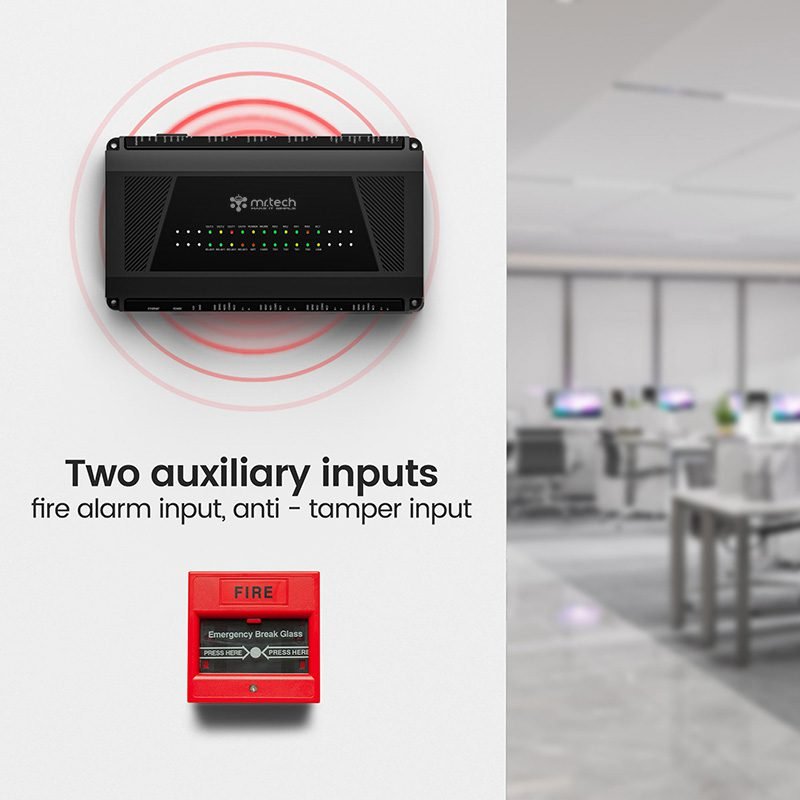

• 2 groups of button switch inputs, 1 alarm input, 1 fire alarm input, 2 relay control outputs, and 1 relay alarm.

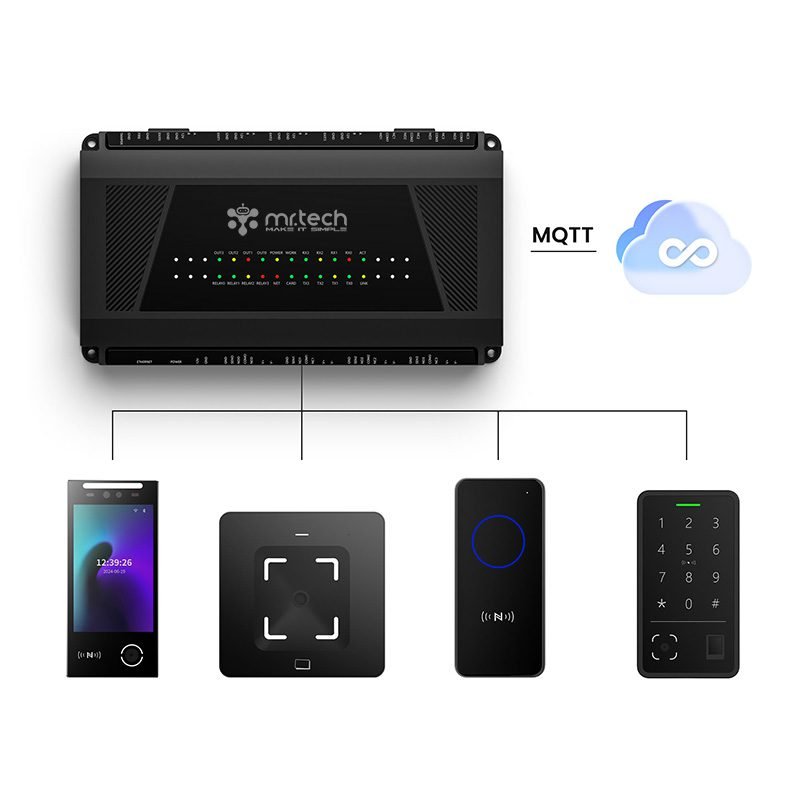

• 485 expansion interface directly 232 two-dimensional code conversion board, 2 kinds of 485 reading head, voice board, LCD display screen.

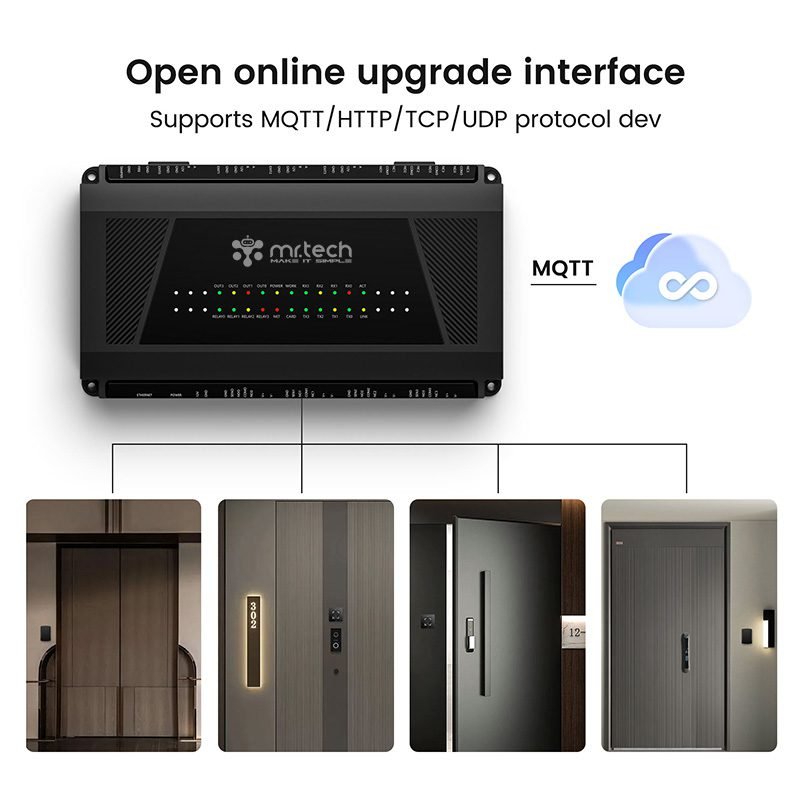

• Support TCP/IP, configurable as a domain name and client mode; realize access to the cloud server.
• 485 supports a voice module, real-time live broadcast of synthesized voice, such as “Manager Li! Welcome”. Support custom sentences.
• 485 supports 485 types of reading heads, including 485 reading heads with display screens.
• Support LCD screen display to realize on-site screen display.
• Opening time supports card, card or password, password, card plus password, timing, and other modes.
• Support TCP door and 485 direct communication, and implement custom 485 device docking.
• Support pass judgment to realize whether a pass is detected.
• Support anti-submarine return, support the time limit of swiping cards, and limit the number of swiping cards.
• Provide SDK development kit and Demo code. Support the controller to directly initiate the pull command data, making the communication process easier.

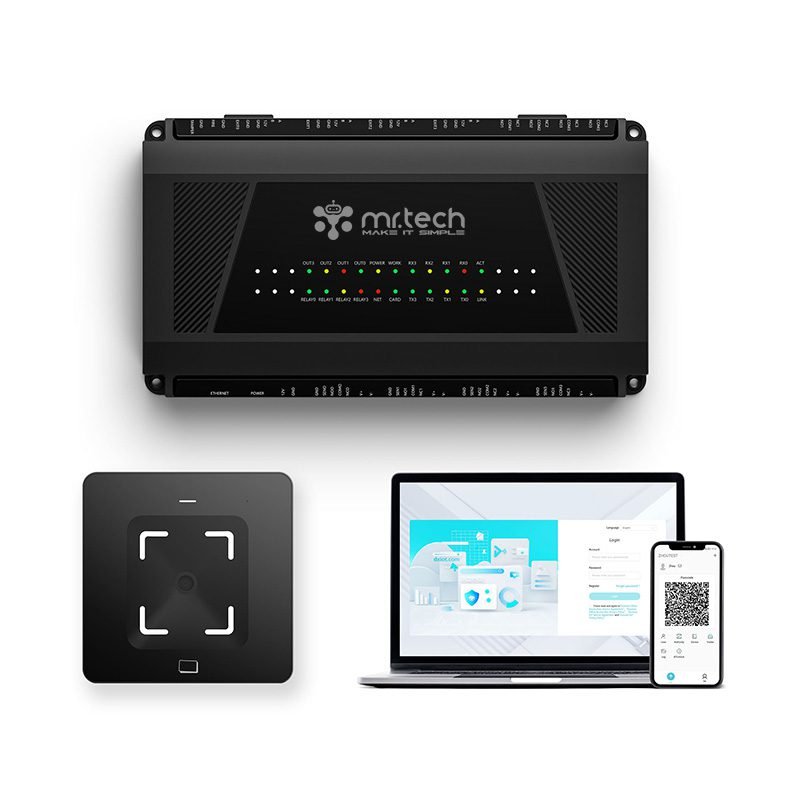

• Application software: Intelligent access control management system version 2019; the same set of software management as other networked access controllers; add equipment model to the software, channel gate access controller model selection: “turnstile gate.”

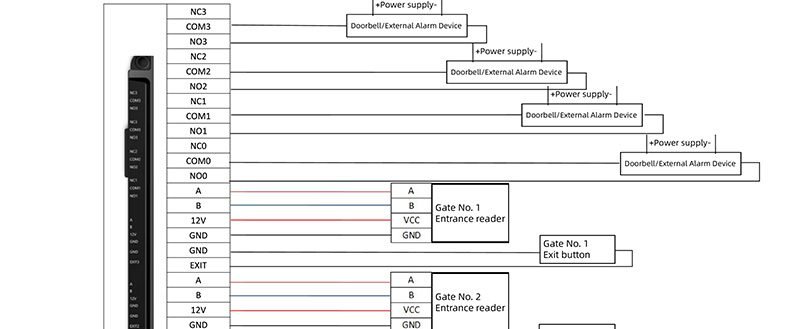

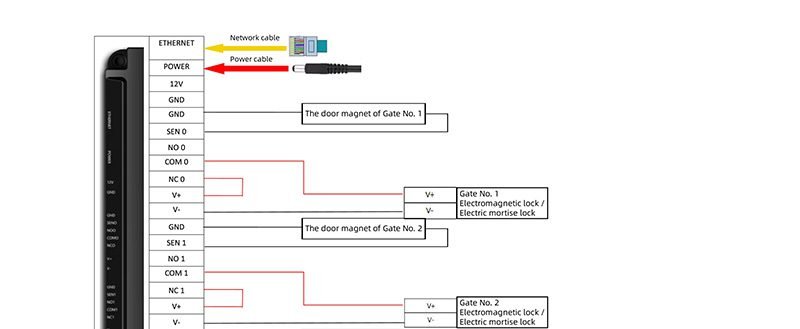

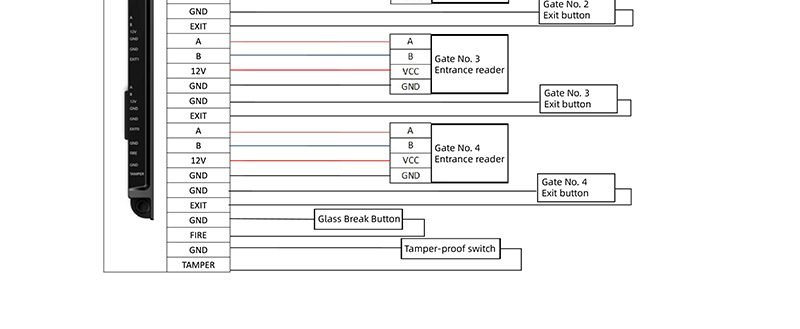

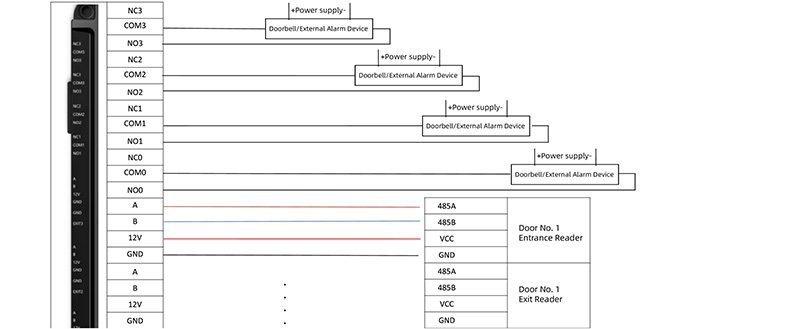

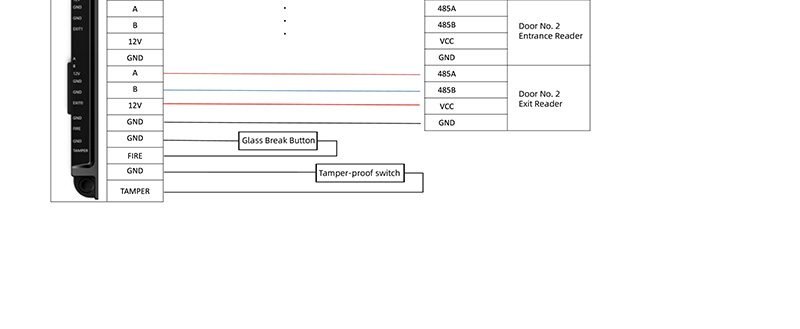

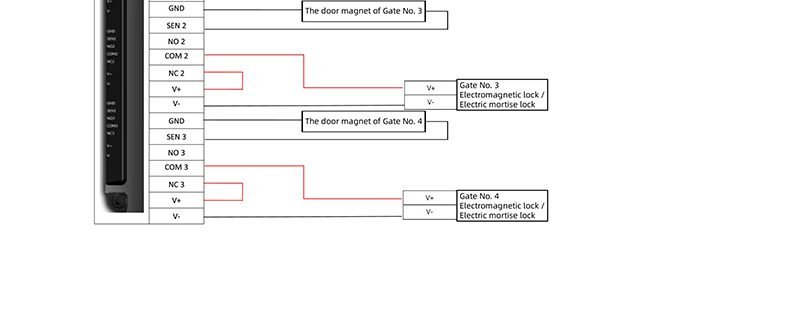

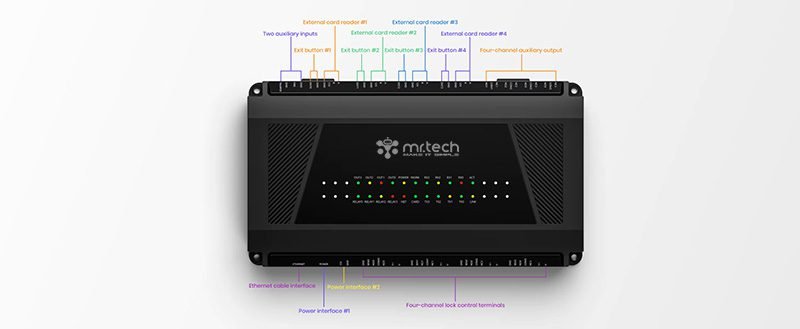

TCP/IP turnstile access controller wiring diagram explanation

TCP IP Access Performance Parameter

1. Card capacity: 45000
2. Record stock: 21,000
3. Alarm capacity: 12800
4. Communication method: TCP/IP
5. Communication distance: Software management is not limited by distance
6. Know the device: Wiegand protocol
7. Door opening method: single RFID card, password, RFID card + password, dual RFID card, software remote, free passage, button, timing

TCP Door Application Field

• Government agencies, scientific research institutions, factories, and mining enterprises
• Smart building, office building, office building
• Smart community, high-end villa
• Bank financial institution
• Colleges, universities, hospitals, and hotels
