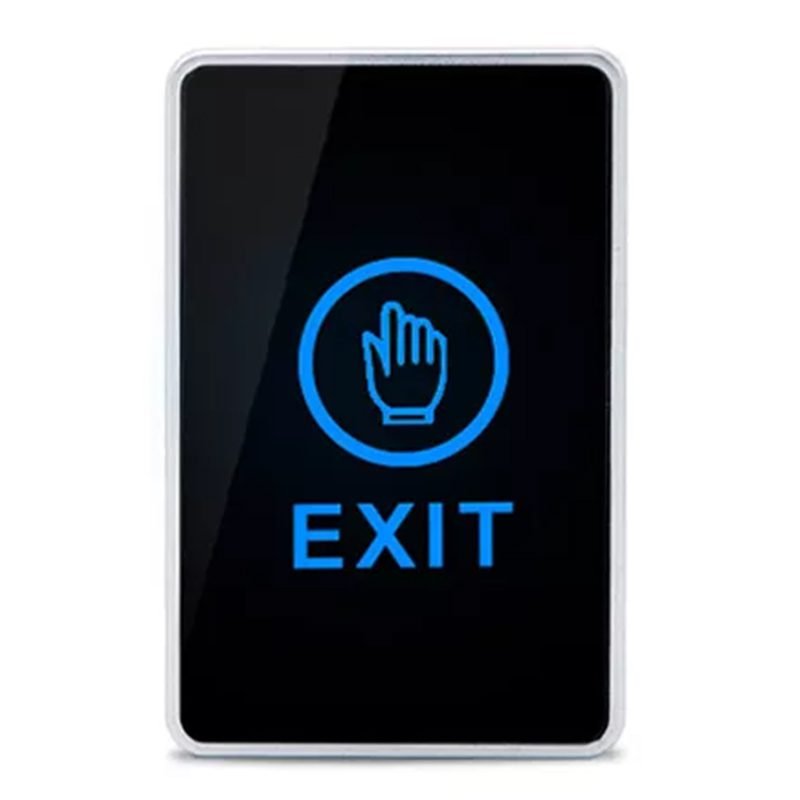

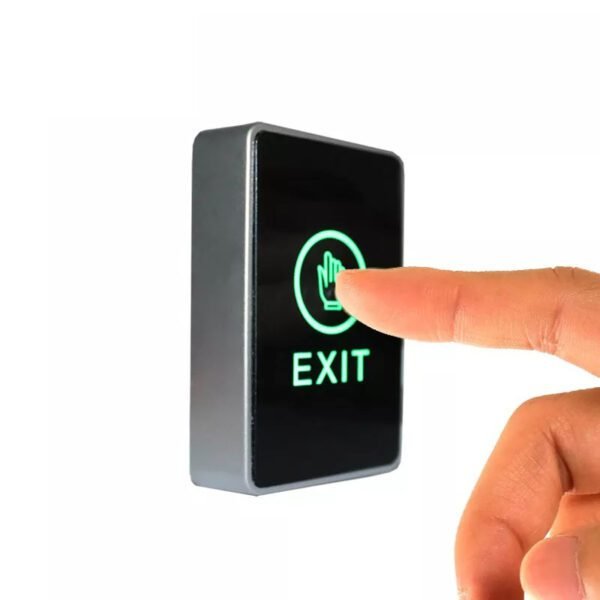

Power Switch Access Control Exit Switch Button
This device is an electronic touch-sensor exit release button primarily used in door access control systems. It is commonly installed inside secure buildings next to electronically locked doors, allowing occupants to trigger the lock mechanism and exit.
Specifications & Features
- Mechanism: Capacitive touch panel or proximity infrared sensor.
- LED Feedback: Features a dual-color LED backlight. It typically glows blue during standby mode and switches to green when actively touched or triggered.
- Wiring System: Connects using standard NO (Normally Open), NC (Normally Closed), and COM (Common) relay configurations.
- Power Supply: Typically operates on a standard 12V DC input
- [Material] – Quality PC and acrylic material, it is firm and durable, which has long service time. Exquisite workmanship makes it delicate, which looks generous and stylish.
- [Door Touch Sensor] – Touch sensor button, which is easy to operate and convenient for using.
- [Door Release Exit Button] – 500, 000 aging tests, which ensures its qualified quality.
- [WIDLY APPLICATION] – Applicable Type All Kinds of Narrow Door Frames. Suitable for access control system, entrance and exit switch, etc, which is very practical.
- [100% Brand New & High Quality] – If you have any questions, you are welcome to contact us, and I will be happy to help you.
Model No: EB-11
Access Control Exit Switch Button is a spring-loaded button which is often mounted on a stainless steel plate or Aluminum, etc… It can be a simple or large button, green, or button that illuminates LED lights. The exit push-button is used to “Exit” devices in the access control system that is used on doors, exits, gates, automation control, and so forth.
They are designed to allow people to quickly and easily open a door in the event of an emergency, such as a fire, so that they can evacuate the building.
Specifications of Access Control Exit Switch Button
| Parameters | Description |
| Dimensions | 86 x 50 x 20mm |
| Standard structure | Stainless steel panel, Steel Button |
| Current Rating | 3A, 36V DC MAX |
| Output Contact | +12V GND NO NC COM |
| Mechanical Life | 1000000 tested |
| Suitable for door | Hollow Door |
| Operating Temperature | -10ºC∼+55ºC (14∼131F) |
| Operating Humidity | 0-95% (Non-condensing) |
| Applicable to variety of places Family residential area, |
villa, office, schools, shopping mall and clubs. |
How Does the Access Control Exit Switch Button Work?
The push to exit button is connected to the access control applications, which controls the locking mechanism of the door, using wires. Any individuals that needs to exit the building or pass through the door simply has to push or press the button.
