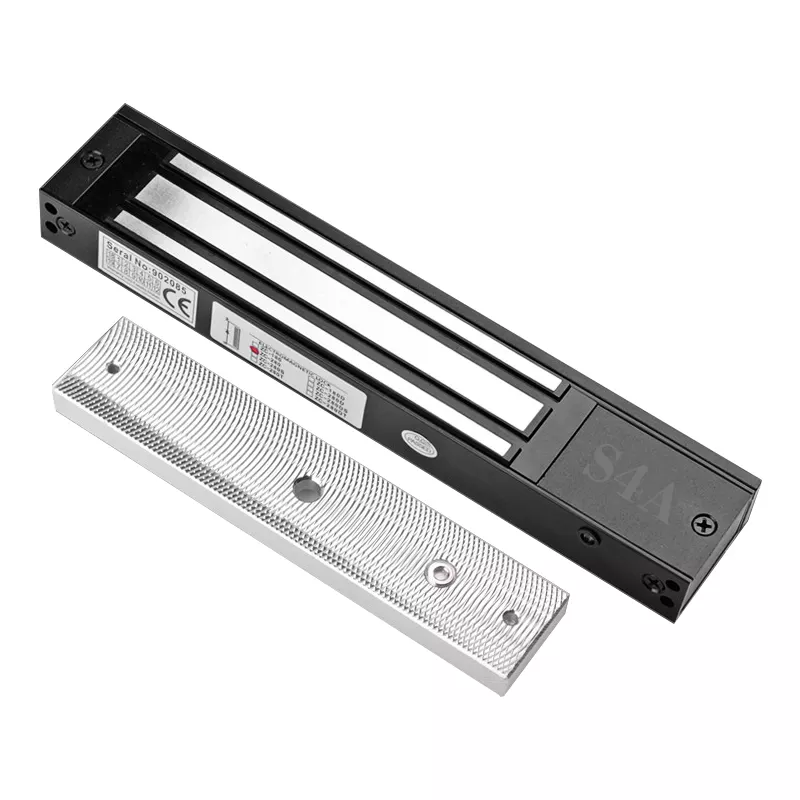

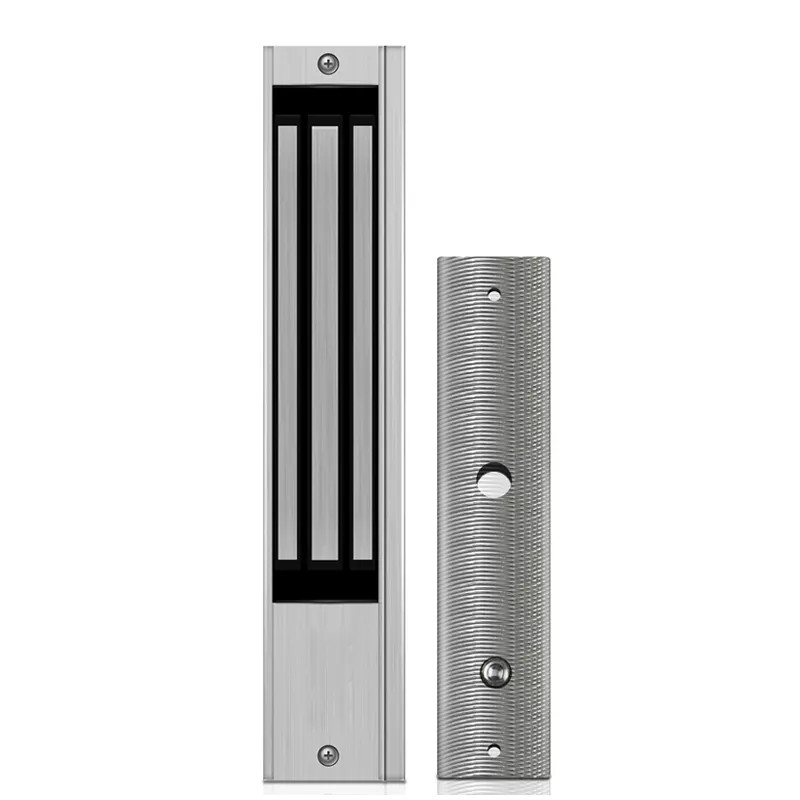

Security Electromagnetic Door Lock MR-EML280


Mounting brackets form an integral part in installation of magnetic locks to both in-swing and out-swing doors. The magnetic lock comes in variety of models to suit various entry and exit applications.

Security Electromagnetic Door Lock MR-EML280

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

 What is Electromagnetic Lock?

Security Electromagnetic Door Lock MR-EML280 consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Security System Electromagnetic Magnetic Door Lock MR-EML280

Specification of Security Electromagnetic Door Lock MR-EML280

EL-600DWithout indicator lights
EL-600DSWith LED ( Red only)
EL-600DSDWith LED, door Sensor
EL-600DSTLED, Door sensor, Time delay
Lock size500L x 48.5W x 25H (mm)
Armature plate180L x 38W x 11H (mm)
Holding Force280kg x 2 (350Lbs x 2)
voltageDC12V or DC24V (adjustable)
Current Draw12V / 500mA x 2 24V / 250mA x 2
Signal OutputDry contact, Max Rating of contact current 3 A
Surface Temperature≤20ºC
Operating Temperature-10ºC∼55ºC(14ºF – 131ºF)
Suitable Humidity0∼90%(non-condensing)
Finishes for ShellAnodized Aluminum surface texture processing
Finishes For MagneticZinc
Finishes For ArmatureZinc
Weight4KG
Standard Packing4pcs

Security System Electromagnetic Magnetic Door Lock MR-EML280

How to Enroll and program new users, in Security Electromagnetic Door Lock MR-EML280 as below:

 Available to enroll 2 types of cards:

1: Master Card

2: Security Card

1. How to register the Master Card?

After the lock was installed, we hear di-di beeps. it keeps beeping for around 20 seconds, meanwhile, we punch the blank card on the reader until the beeps stop.

Then remove Master Card, power it off, and re-power it on. Setting to Succeed.

2. If the Master card is lost, how to register a new one?

Move the jumper to Delete Position, register new blank cards  as new Master Cards (follow the step1)

3. How to register a new user?

Punch Master Card, we hear di beeping for 1 time and hold it until getting the 2nd di beeps,

remove Master Card and punch the blank user’s card, then punch Master Card to exit.

4. How to set up Security Card?

Punch Master Card and keep it for 5 seconds, after hearing di beeps, remove Master Card,

then punch the security card and keep it for 5 seconds. Then punch Master Card to exit.

280KG Electric Magnetic Lock Door Access Control Security System Electromagnetic Magnetic Door Lock MR-EML280

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
EL-600DWithout indicator lights
EL-600DSWith LED ( Red only)
EL-600DSDWith LED, door Sensor
EL-600DSTLED, Door sensor, Time delay
Lock size500L x 48.5W x 25H (mm)
Armature plate180L x 38W x 11H (mm)
Holding Force280kg x 2 (350Lbs x 2)
voltageDC12V or DC24V (adjustable)
Current Draw12V / 500mA x 2 24V / 250mA x 2
Signal OutputDry contact, Max Rating of contact current 3 A
Surface Temperature≤20ºC
Operating Temperature-10ºC∼55ºC(14ºF – 131ºF)
Suitable Humidity0∼90%(non-condensing)
Finishes for ShellAnodized Aluminum surface texture processing
Finishes For MagneticZinc
Finishes For ArmatureZinc
Weight4KG
Standard Packing4pcs
