Security Electric Magnetic Door Rim Lock With Key

The Advanced electric lock comes in variety of models to suit various entry and exit applications. Mounting brackets form an integral part in installation of magnetic locks to both in-swing and out-swing doors

2 Items sold in last 2 days



    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add 35,000.00 and we will send you the order for free shipping!
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1


    1138 People watching this product now!

    Payment Methods:



    Security Electric Magnetic Door Rim Lock With Key

    NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

    All entrance doors should be unlocked by access control card or remote control which support long-distance high-speed card reading within external dual reader card. It can be used for both in-swinging and out-swinging doors. For In-swinging doors, the lock is usually installed at the opening corner of the door. For out-swinging door the lock is usually installed on the side of the door header. SS304 Stainless steel Electric RIM lock with double cylinder.

    Security Electric Magnetic Door Rim Lock With Key

    Double Electric Rim door lock Features:

    Magnetic Lock has Security Electric Magnetic Door Rim Lock With Key features has listed below;

    • High-strength stainless steel lock housing
    • Elegant surface finish: stainless steel brushed
    • Single Cylinder or Double Cylinder are available
    • Solid brass ball latch
    • Solid brass cylinder and deadbolt
    • Reversible deadbolt
    • Fail secure, pulse to open
    • Reliable locking mechanism (Up to 1000000 operations)
    • High security, low noise

    Specification of Automatic Security Electric Magnetic Door Rim Lock With Key:

    ModelER-D2; ER-S1
    CylinderSingle or Double cylinder
    FinishStainless Steel Brushed
    Lock Size148 x 107 x 60mm
    Thickness of the lock body and strike2.0mm
    Voltage12V DC(plus)
    Working Current3A
    Consumption Power10W
    Unlock timePulse to unlock, within 1sec
    Service life1,000,000 times
    Operating Tempunder 40ºC ∼ 50ºC

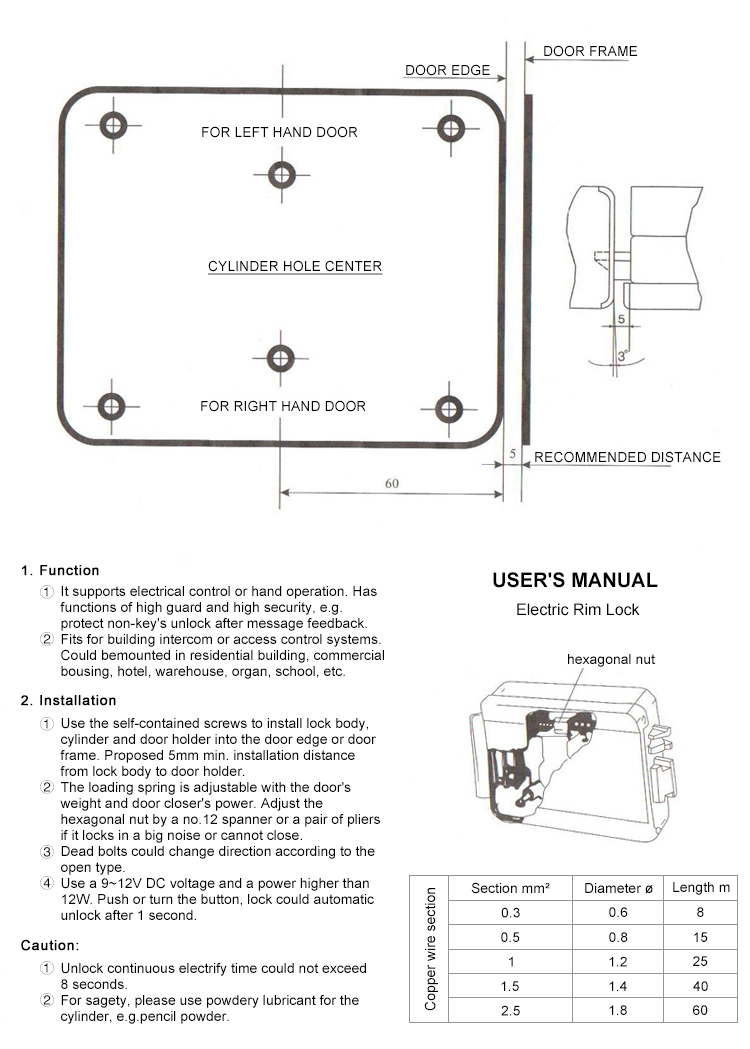

    Standard Electric Door Rim Lock With Key Security Smart Magnetic Electronic 12V Metal Electric Gate Lock
