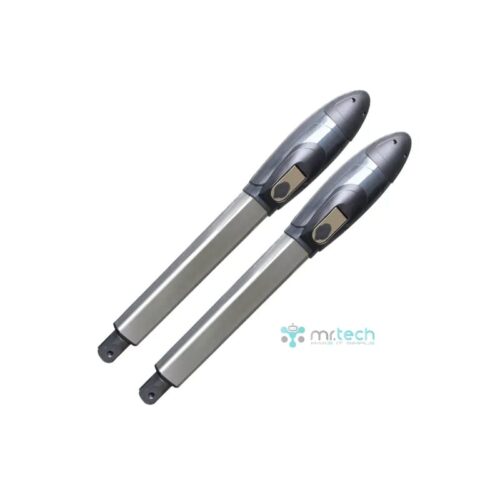

Automatic Swing Gate Operator MR-SWGM300

Automatic Swing Gate Operator has Anti-theft clutch design can switch the operation to manual control easily when power failure. The advance features secure the property from outsider.

(2 customer reviews)
2 Items sold in last 2 days



    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add  31,850.00 and we will send you the order for free shipping!
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1


    262 People watching this product now!

    Payment Methods:



    Automatic Swing Gate Operator MR-SWGM300

    The automatic Swing Gate Operator features an Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates Automatic Feature Learning will learn all features of the remote with a simple pairing process
    Adjustable Automatic Close time of up to 2 minutes this can be toggled by remote, keypad, or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.

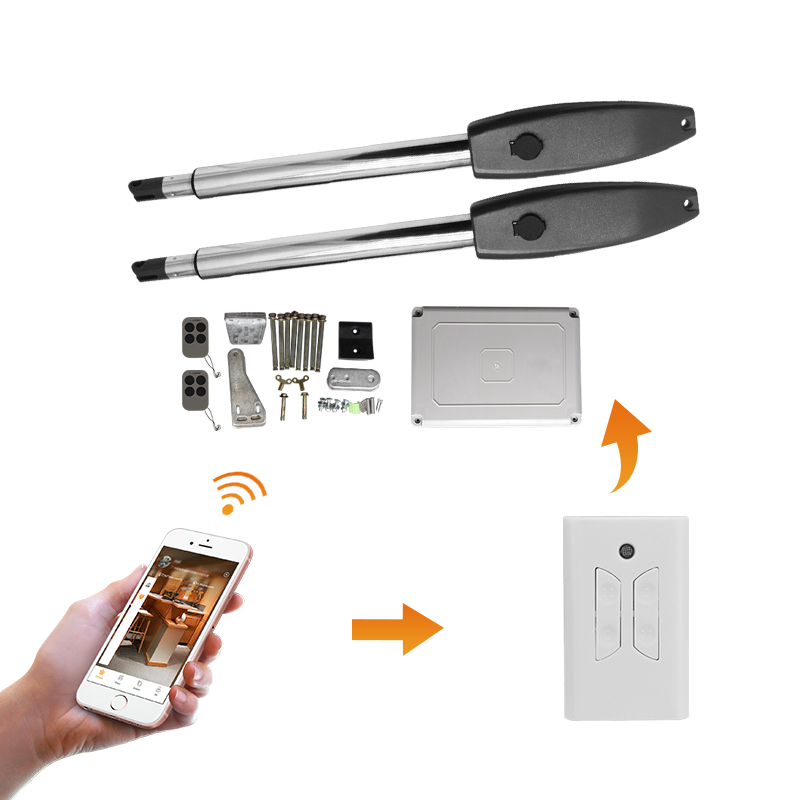

    Swing Gate Opener (Double)  per set including:

    2*Swing Gate Motor
    1*Control Panel
    2*Remote Controllers
    1*Handle Hardware Accessories 1*Manual

    NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!


    Brand Name MRTECH
    Model NumberMR-SWGM300
    Type Automatic Gate Operator
    NameAutomatic Swing Gate Operator
    Material Aluminum & Plastic
    Power Supply 220v / 110v
    Max. Operating Current 4A for maximum 10 seconds
    Max. Gate weight 300kg per leaf
    Max gate length 3 meters
    Operating Temperature -20ºc ∼ +50ºc
    Duty Cycle 20%
    Motor Weight 6.25 kg
    MOQ 3 Set
    Application Residentials, Apartments


    Accessories Included With Automatic Swing Gate OperatorControl Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, and Wall Mount Kit.
    Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

    Automatic Swing Gate Operator MR-SWGM250


    Automatic swing gate opener MR-SWGM300

    • Single leaf or double leaves operation.
    • Metal Pinion gear driving design with low working noise.
    • Automatic Swing Gate Motor can be Adjust the Opening/Closing interval time of double gate leaves.
    • Auto-stop if any obstacles are detected during operation.
    • Manual release with the secure customized key in case of power failure in automatic Swing Gate Motor
    • Soft Start and Slow stop functions, which can extend the life of the gate opener and safer.
    • Built-in Max motor running time adjustable for multiple Safety protection.
    • Separately adjust the force of double gate leaves.
    • Easy installation and low maintenance.

    Automatic Swing Gate Operator MR-SWGM250

    Automatic Swing Gate Operator MR-SWGM250
