Swing Gate Motors MR-SWGM150


Swing Gate Motors MR-SWGM150 are motorized model which used for residential, apartments for lesser space area, they are too modernized and technical specification varies according to working nature.

Swing Gate Motors MR-SWGM150

This is the Swing Gate Motors MR-SWGM150 swing gate opener, which suits a light weight gate and has the best competitive price.
NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Accept wifi receiver connect to make the gate opener can be controlled by mobile APP. Accept camera connection to make the gate opener can be monitored and controlled by HOUSE mobile APP. Digital LED swing board to make the all value set can be much correct. The software system can be customized based on big quantity needs. Offer the customized gate bracket for different install environment use.

Specification:

ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SWGM150
Type Automatic Gate Operator
Name Swing Gate Motors
Material Aluminum & Plastic / Stainless Steel
Power Supply 220v / 110v
Max. Operating Current 4A for maximum 10 seconds
Max. Gate weight 150kg per leaf
Max gate length 2.8 meters
Operating Temperature -20ºc ∼ +50ºc
Duty Cycle 20%
Motor Weight 5.30kg
MOQ 3 Set
Application Residentials, Apartments

Swing Gate Motors MR-SWGM150

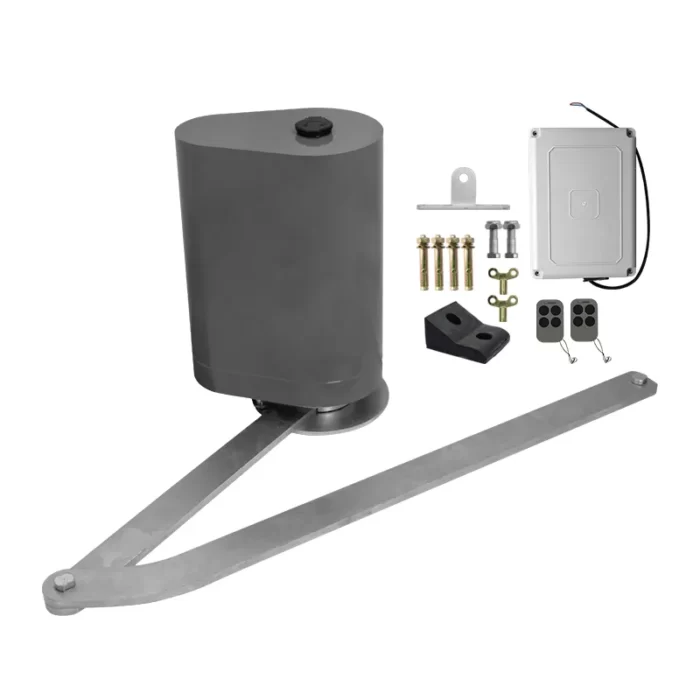

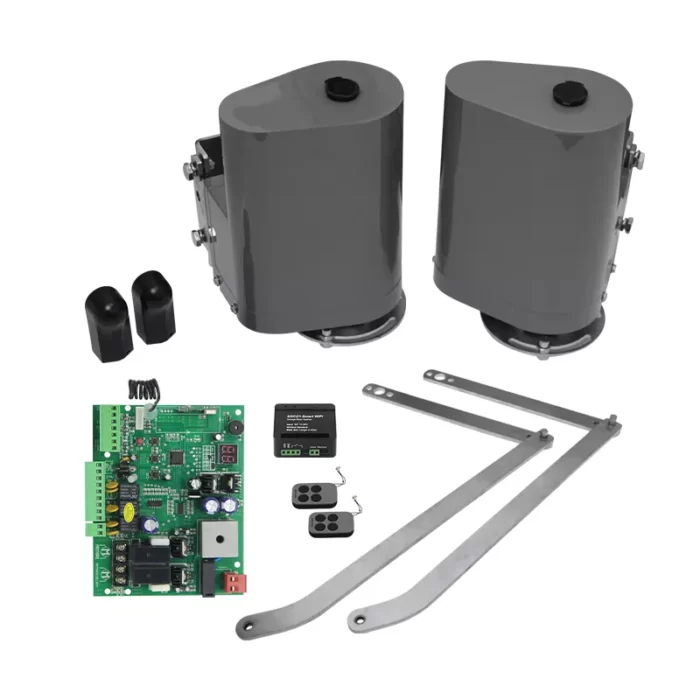

Accessories Included With Swing Gate Motors MR-SWGM150Control Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, Wall Mount Kit.
Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
Automatic Swing Gate Motors MR-SWGM150, Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates Automatic Feature Learning will learn all features of the remote with a simple pairing process
Adjustable Automatic Close time of up to 2 minutes this can be toggled by remote, keypad, or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Swing Gate Motors MR-SWGM150

Benefits of Swing Gate Motors MR-SWGM150

  1. Metal pinion gear driving design with low working noise.
  2. Manual release with the secure customized key in case of power failure.
  3. Soft start and slow stop function.
  4. Adjust the opening/closing interval time of double gate leaves.
  5. Auto-stop if any obstacles are detected during operation.
  6. Automatic Swing Gate Opener, Built-in max motor running time adjustable for multiple safety protection.
  7. Separately adjust the force of double gate leaves.
  8. Single leaf or double leaves operation.
  9. Easy installation and low maintenance.
  10. 12 months guarantee, lifelong post-sales service
NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!



ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SWGM150
Type Automatic Gate Operator
Name Swing Gate Motors
Material Aluminum & Plastic / Stainless Steel
Power Supply 220v / 110v
Max. Operating Current 4A for maximum 10 seconds
Max. Gate weight 150kg per leaf
Max gate length 2.8 meters
Operating Temperature -20ºc ∼ +50ºc
Duty Cycle 20%
Motor Weight 5.30kg
MOQ 3 Set
Application Residentials, Apartments



Accessories Included With Swing Gate Motors MR-SWGM150Control Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, Wall Mount Kit.
Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
