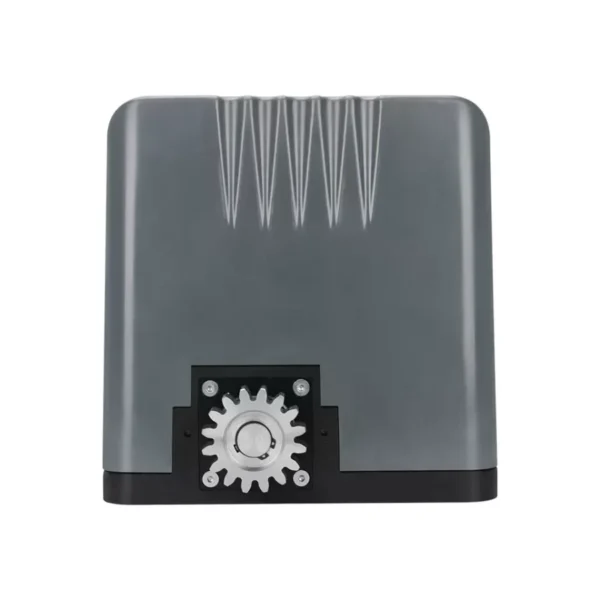

Sliding Gate Motor MR-SLGM500


Gate Motor is designed to operate sliding gates up to 500 kg in weight. Automatic sliding gate motor can be controlled by remote.

Sliding Gate Motor MR-SLGM500

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Specification:

ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SLGM500
Type Automatic Gate Operator
Name Sliding Gate Motor
Material Aluminum & Plastic
Power Supply 220v AC / 110v AC / 24DCV
Rated Motor power 120W
Max. Loading 500 KG
Output Speed 50 r/min
Open/close Speed 15 m/min
Limit Switch Type Magnetic / Spring
Output Torque 20N.m
Max. pull force1200N
MOQ3 Set
ApplicationResidentials, Apartments, Commercials, Industrials, etc.



Accessories Included With MotorControl Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion , Fitting Accessories.
Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

Features of Sliding Gate Motor MR-SLGM500:

  • AC/DC motor with built-in control panel.
  • Built-in manual override with 2 supplied unique override keys in case of emergency or power failure.
  • All metal gears make them durable and long-lasting.
  • Soft start and soft stop.
  • Resistance sensitivity and auto-closing delay time adjustable.
  • Stop/Reverse in case of obstruction during gate opening /closing.
  • Reliable mechanical spring limit or magnetic limit optional.
  • The aluminum alloy base makes it available for all kinds of bad weather.
  • Backup batteries and solar systems are available for DC Sliding Gate motors.
  • 12 months guarantee; lifelong post-sales service.
Sliding Gate Motor MR-SLGM500Sliding Gate Motor MR-SLGM500
Sliding Gate Motor MR-SLGM500

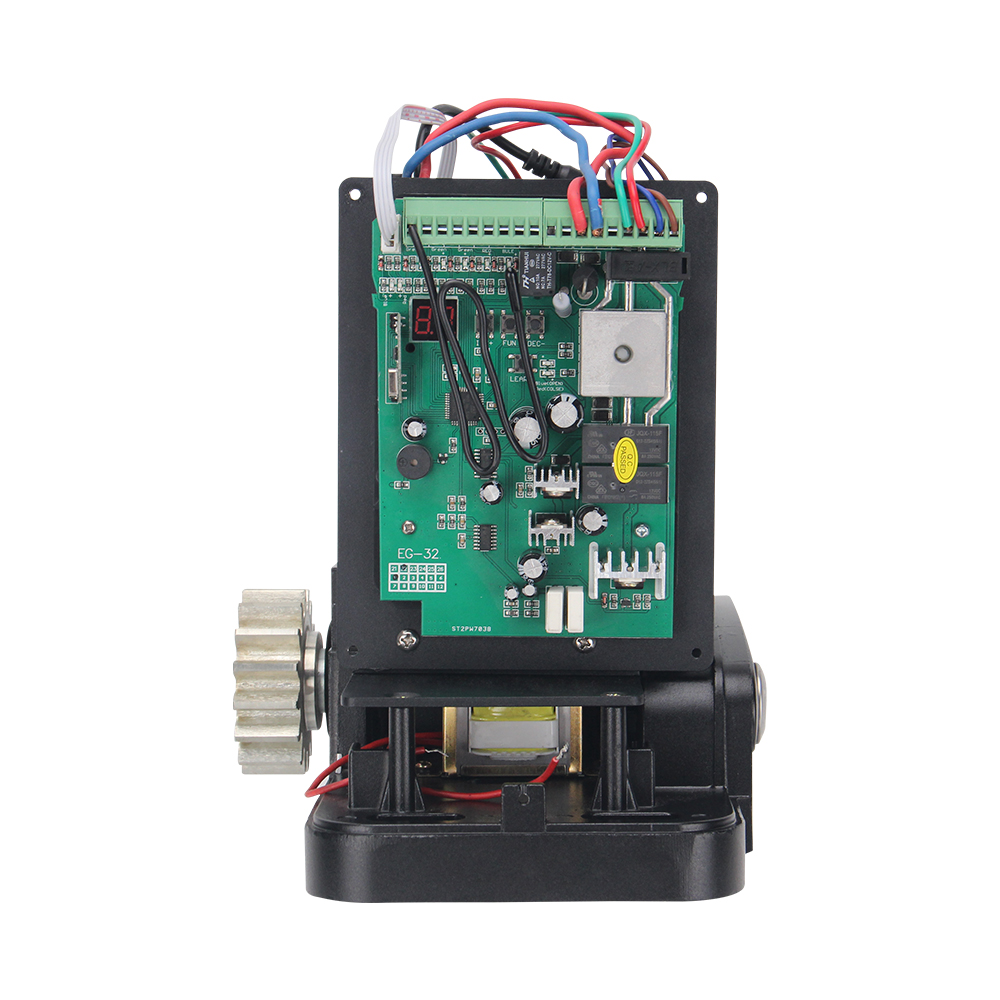

This is an all-in-one motor. battery

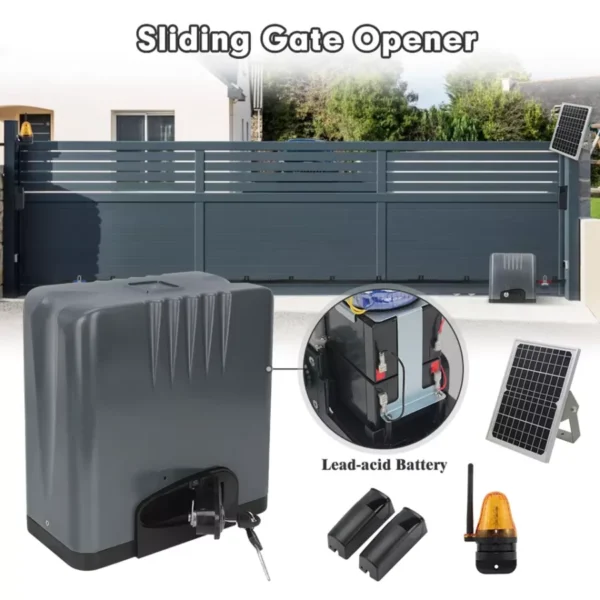

DC24v Sliding Gate Motor MR-SLGM500 24dc sliding gate opener with solar panel

Rated Voltage220v±10% / 110v±10%
50Hz / 60Hz
220v±10% / 110v±10%
50Hz / 60Hz
220v±10% / 110v±10%
50Hz / 60Hz
220v±10% / 110v±10%
50Hz / 60Hz
Max Loading Weight500kg600kg800kg1300
Gear ModulusM=4M=4M=4M=4
Open/Close speed15m / min12m / min12m / min12  m / min
Electric Motor24v DC220v AC / 110v AC220v AC / 110v AC220v AC / 110v AC
Rated motor Power120W200W280W380W
Output Speed5or/min±10%5or/min±10%5or/min±10%5or/min±10%
Output Torque(N.m)16.8-32 N.m16.8-32 N.m16.8-32 N.m16.8-32 N.m
Limit switchSpring / MagneticSpring / MagneticSpring / MagneticSpring / Magnetic
Working Temperature-20ºC ∼ +55ºC-20ºC ∼ +55ºC-20ºC ∼ +55ºC-20ºC ∼ +55ºC

Specification:

  1. Totally integrated electrical mechanical system (excludes racks).
  2. Control board interface for optional impact-proof infrared photocells.
  3. Can connect flashing lights and keypads and electric locks and so on.
  4. Automatic delayed closing.
  5. Adjustable resistance sensitivity.
  6. The auto gate stops and re-opens when an obstacle is encountered.
  7. Wireless remote control or wired remote control is optional.
  8. 24VDC Sliding Gate Motor opener can connect the transformer and backup battery.

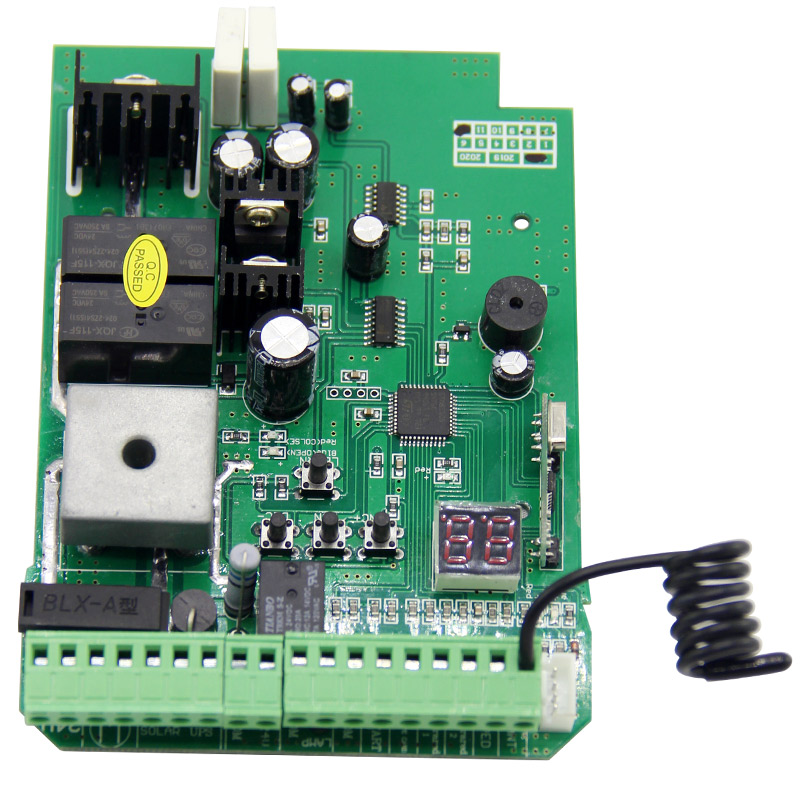

Control board
Sliding Gate Motor MR-SLGM500Sliding Gate Motor MR-SLGM500
Function

Single button control circularly /three buttons control can be chosen
Alarm lamp interface
Automatic closing time adjustable
Pedestrian mode
Condominium mode
Limit switch NC/NO optional
Photocell NC/NO optional
Switch the power on/off button on the board
Open and close motor sensitivity setting separately
Terminal for open only, close only for the external control device.
Adjustable resistance sensitivity.
The gate will auto-stop and re-open when an obstacle is encountered

Sliding Gate Motor MR-SLGM500
ModelMR-SLGM500
Voltage220V / 110V
ModulationASK
Frequency433.92Mhz
Board Memory50 pcs remote control
Output VoltageAC 24v
NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!



ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SLGM500
Type Automatic Gate Operator
Name Sliding Gate Motor
Material Aluminum & Plastic
Power Supply 220v AC / 110v AC / 24DCV
Rated Motor power 120W
Max. Loading 500 KG
Output Speed 50 r/min
Open/close Speed 15 m/min
Limit Switch Type Magnetic / Spring
Output Torque 20N.m
Max. pull force1200N
MOQ3 Set
ApplicationResidentials, Apartments, Commercials, Industrials, etc.



Accessories Included With MotorControl Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion , Fitting Accessories.
Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
