Automatic Frequency Conversion Circuit Board Industrial Gate Opener
Closing the sliding gate can be utilized by an automatic time delay facility as well as inputs from other sources time delay can be adjusted between any time intervals by plc by integrating frequency control to the control electronics movement control of the gate is achieved for example slow start for an adjustable period fast linear motion for another adjustable period and finally again an adjustable slow stop can be achieved this facility allows the user to adjust the gate speed according to the requirements without losing torque
MAIN FEATURES
- Space saver
- Smooth operator, soft start and slow stop
- No gates left open!
- Increased privacy no uninvited visitors
- Greater convenience and improved quality of life
- Safety devices as standard
- Various control options
- Gates can be locked in open or closed position
- Suitable for industrial use
- Very easy to install on both new and existing gate
- Control to stop anytime while the gate is moving
- Emergency clutch key: In case of power failure just unlock the device with a personalized key
- Overheating protector: when the motor temperature reaches the rated value, it will automatically power off and protect the motor
- Wide range of electromechanical operators for sliding gates up to 4000kg weight
Industrial Gate Motor Optional Used
Sliding gates, Sectional sliding gates, Telescope Sliding gates, Cantilever Sliding gates, Skylight glass roof, Curved folding Sliding gates
Specifications Technical data
Type | Frequency Conversion Circuit Board Industrial Gate Motor |
Model | MR SGFM4000 |
Project Solution Capability | Total Solution for Projects |
Power Supply | AC 220VAC/ 50Hz or 380v / 50Hz |
Motor Power | 750W/1100W |
Control Model | Frequency Converter |
Gate Moving Speed | 12m/min |
Motor Speed | 1400rpm |
Maximum Weight of Gate | 4000kg |
Customise Weight of Gate Motor | 3000kg / 3500kg / 4000kg / 4500kg / 5000kg |
Max. Output Torque | 220 nm |
Limit Switch | Encoder, Magnetic, or Spring limit switches |
Noise | <60dB |
Working Duty | no limit |
Working Temperature | -45ºC ~+65ºC |
IP Grade | IP44 |
Feature | Easy Install |
Warranty | 1 year |

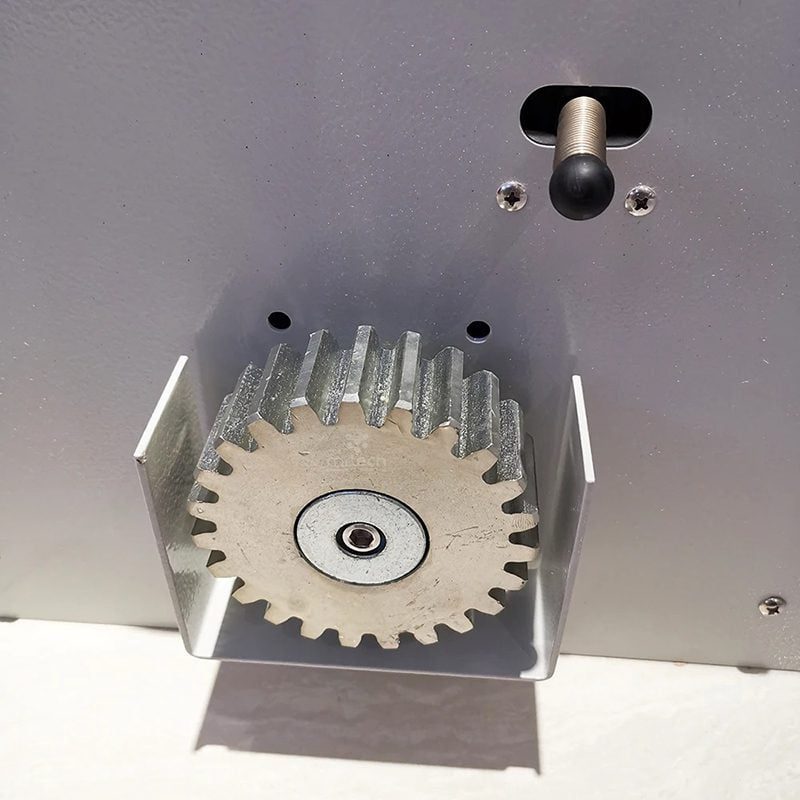

Driven Mode | Gear |
Gaer Teeth | 23T |

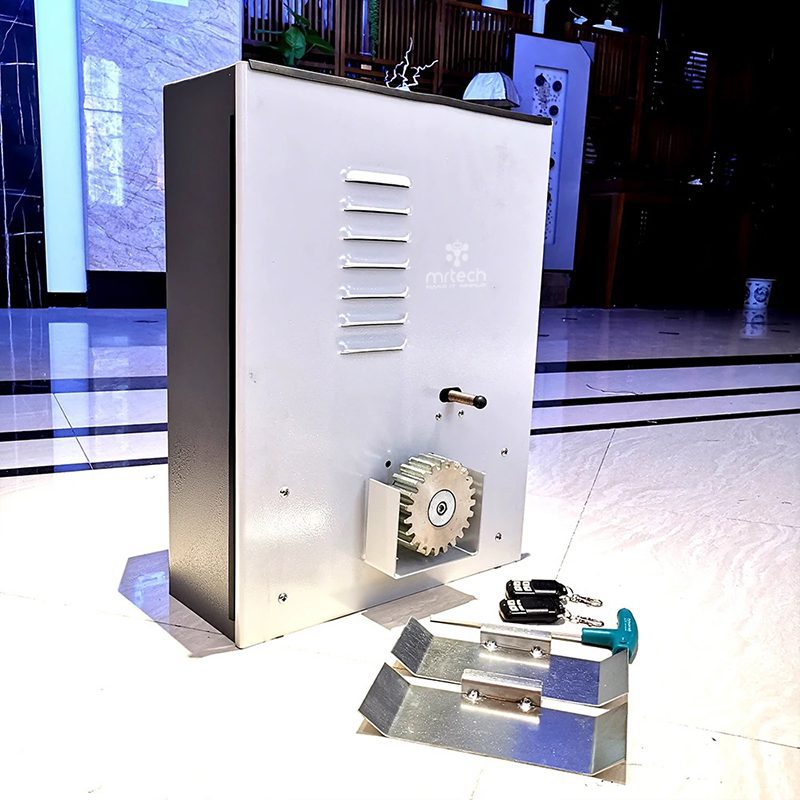

Standard Configuration | 1 motor, 1 control box, 2 remote controls, 2keys, 2magneetic limit switches, 1 mounting plate, fixing accessories |
Optional Accessories
Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. Circuit Board Industrial Gate Opener
Optional Used
Sliding gates, Sectional sliding gates, Telescope Sliding gates, Cantilever Sliding gates, Skylight glass roof, Curved folding Sliding gates
Circuit Board Industrial Gate Opener Application
Medical Stores, Houses, Industries, Stores, Warehouses, restaurants, etc
