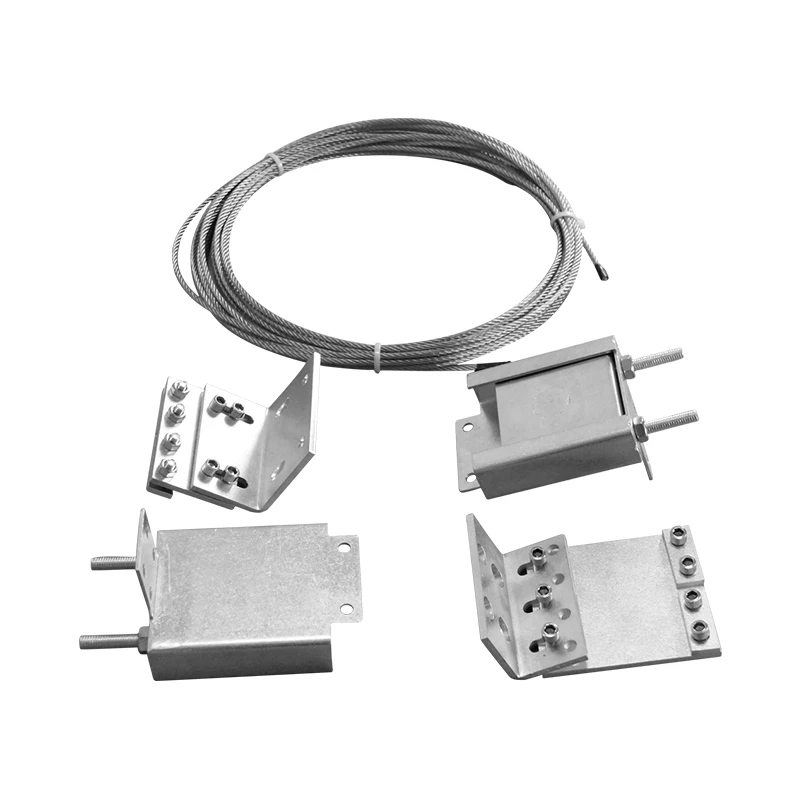

Telescopic Sliding Gate Hardware
- Telescopic gates allow an access point to be opened twice as fast as a traditional sliding gate.
- Different types of sliding gates are available to offer a range of solutions for each application.
- In particular, if maneuvering space is limited, the ideal solution for closing large access points is the telescopic sliding gate.
- This solution makes it possible to minimize as much as possible the space occupied by the gate in the maneuvering space.
- MR. TECH has designed a new range of accessories for the construction of telescopic sliding gates with two or more panels that slide on the same number of tracks on the ground.
- They also make kits containing the accessories necessary for assembling a telescopic system.
The Telescopic gate hardware system allows Sliding gates to be installed in areas where space is limited while the gate is in the open position. Gates are built-in segments that are connected by a cable-guide system to keep the gate leaves synchronized and slide seamlessly. The Telescopic Sliding Gate Hardware can be augmented with a gate automation system.
Features of Telescopic Sliding Gate Hardware kits
- The Telescopic gate hardware system is available in a two-leaf configuration(4 sizes) and a three-leaf configuration (2 sizes)
- The Mr. tech dual sliding gate system provides the ultimate space-saving solution for wider driveways.
- Simple Design and easy to install for professional or D.I.Y
- Unique patented anodized aluminum extruded guide channel system that can be customized to allow for timber cladding pickets or wrought iron spears
- Easily assembled and cut to the desired length for driveway openings up to 7.3m. Custom Sizes available upon request
Telescopic Single Sliding gates require the entire driveway width of +300 to 400mm for them to open fully, while a dual sliding or telescopic gate, only requires a little over half, giving you a wider driveway opening overall.
This is a standalone system that can be mounted to any style of gate you may choose, these gates also travel twice as fast as normal gates which is great for getting on and off busy roads, safety devices are highly recommended
Optional Complete Telescopic Sliding Gate Hardware Kits:
Including motors, remotes, safety devices, and other associated hardware available upon inquiry.
Three Standard size kits available:
- 2M- for driveways up to 3.3M
- 3M- for driveways up to 5.3M
- 4M- for driveways up to 7.3M
Telescopic Gate Kit Optional Accessories
| Optional Accessories for Telescopic Sliding Gate Hardware Set | Sliding Gate Wheels, Gate Stopper, Concreted and Drilled fixing Track, End Cap with Nylon Roller, Connection 4 rollers support for telescopic gate, Telescopic sliding gate nylon roller bracket, Telescopic sliding gate U rail, Dust cover, Connection bracket |
Our usual packing details：
Plastic bag + Standard export master box + wooden pallet.
All the boxes will be put inside a wooden pallet and then wrapped with a plastic sheet to protect them from rain and then shrink-wrapped.
All the boxes will be put inside a wooden pallet and then wrapped with a plastic sheet to protect them from rain and then shrink-wrapped.
