UHF RFID Reader, RFID Reader, RFID Reader & Writer

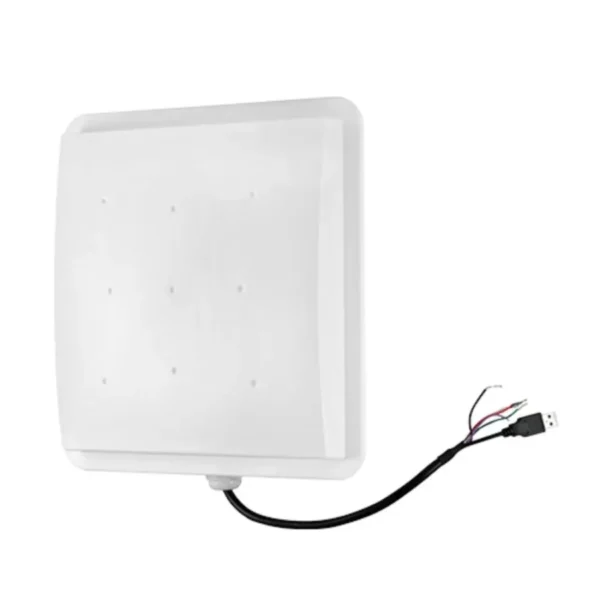

UHF Long Range Rfid Reader MR-UHFRFID15
A UHF RFID reader is a device using an Ultra-High Frequency (UHF) range, between 840MHz and 960 MHz its Extended read range compared to HF NFC readers enables one reader to interact with many tags at the same time, at a very high speed.
UHF Long Range Rfid Reader MR-UHFRFID15
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
- Access Control Board : Control 1/2/4 doors, TCP/IP + WEB server + APP/3G/4G
- UHF Long Range Rfid Reader: 1-5M. 15M and 20M are available for the parking lot
- Standalone access control: Easy to install and program without software
- Fingerprint access control & time attendance: Easy to install and program with software and keep a record in UHF Long Range Rfid Reader
- Facial access control terminals: Face to open the door or do record
- Guard tour probe: Available with GPRS,3G, and 4G to customize
- Electromagnetic lock/Bolt lock/Strike lock: available with OEM&ODM design
- Exit push button > Crypton can resell it Original cost, No profit for valuable clients. No Problem
- No-Touch, Touch-Sensor, Stainless Steel, Aluminum, Plastic, etc
- Access Power supply : 220V / 110V, 5A / 3A
- Proximity Card Reader / Keyfobs / Cards:ID – 125KHz, Mifare – 13.56MHz, HID, RFID & Mifare etc
Working Frequency:
National standard (920~925MHz), America standard (902~928MHz), or customize other frequency ISO18000-6C(EPC GEN2)
Frequency Power:
0~30dBm, be adjusted by software
UHF Long Range Rfid Reader Specification:
| Working Frequency | National standard ( 920∼925MHz), American standard (902∼928MHz, or customize other frequency |
| Support Protocol | ISO18000-6B, ISO18000-6C (EPC GEN 2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Working Way | Automatically reading cards at a regular time, can set reading card way |
| Frequency Power | 0∼30dbm, be adjusted by software |
| Reading Distance | 5-15M |
| Reading Sensitivity | Dual-polarization reading |
| Reading Speed | one label 64-bit ID number < 6ms |
| Antenna | Build-in circular polarization antenna, gain 8db / build-in linear polarization antenna , gain 12dbi |
| Interface | RS485, RS232,Wiegand26, Wiegand34, RJ4 |
| Working voltage | DC12V |
| Working Status Indication | Buzzer |
| Power | 1W |
| Working Temperature | -20ºc∼80ºc |
| Storage Temperature | -40ºc∼125ºc |
| Working Humidity | 20%∼95% ( no condensing) |
| Dimension | 450 x 450 x 120mm |
| Weight | 9.5 KG |
Signal Definition:
| Name | Cable Color | Function |
| DC+12V | Red | +9V∼+15V |
| GND | Black | Negative |
| TXD | Brown | RS232 signal output (PIN2) |
| RXD | Yellow | RS232 signal input (PIN3) |
| GND | Blue | RS232 grounding (PIN5) |
| Trigger | Grey | Trig pin |
| DATA0/485A+ | Green | Wiegand data 0 or 485 interface positive port |
| DATA1/485B- | White | Wiegand data 1 or 485 interface negative port |
| Working Frequency | National standard ( 920∼925MHz), American standard (902∼928MHz, or customize other frequency. |
| Support Protocol | ISO18000-6B, ISO18000-6C (EPC GEN 2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Working Way | Automatically reading cards at a regular time, can set reading card way |
| Frequency Power | 0∼30dbm, be adjusted by software |
| Reading Distance | 5-15M |
| Reading Sensitivity | Dual-polarization reading |
| Reading Speed | one label 64-bit ID number < 6ms |
| Antenna | Build-in circular polarization antenna, gain 8db / build-in linear polarization antenna , gain 12dbi |
| Interface | RS485, RS232,Wiegand26, Wiegand34, RJ4 |
| Working voltage | DC12V |
| Working Status Indication | Buzzer |
| Power | 1W |
| Working Temperature | -20ºc∼80ºc |
| Storage Temperature | -40ºc∼125ºc |
| Working Humidity | 20%∼95% ( no condensing) |
| Dimension | 450 x 450 x 120mm |
| Weight | 9.5 KG |
