Bifold Swing Gate Motor MR-SWGM250


Control Panel Voltage: AC24V, available for 24 V backup battery Bifold Swing Gate Motor MR-SWGM250 are used for Residential, Apartments.

Bifold Swing Gate Motor MR-SWGM250

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Specification:

ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SWGM250
Type Automatic Gate Operator
Name Bifold Swing Gate Motor
Material Aluminum & Plastic / Stainless Steel
Power Supply 220v / 110v  50Hz /60Hz
Max. Operating Current 4A for maximum 10 seconds
Max. Gate weight 250kg per leaf
Max gate length 2.5 meters
Operating Temperature -20ºc ∼ +50ºc
Duty Cycle 20%
Motor Weight 6.30kg
MOQ 3 Set
Application Residentials, Apartments

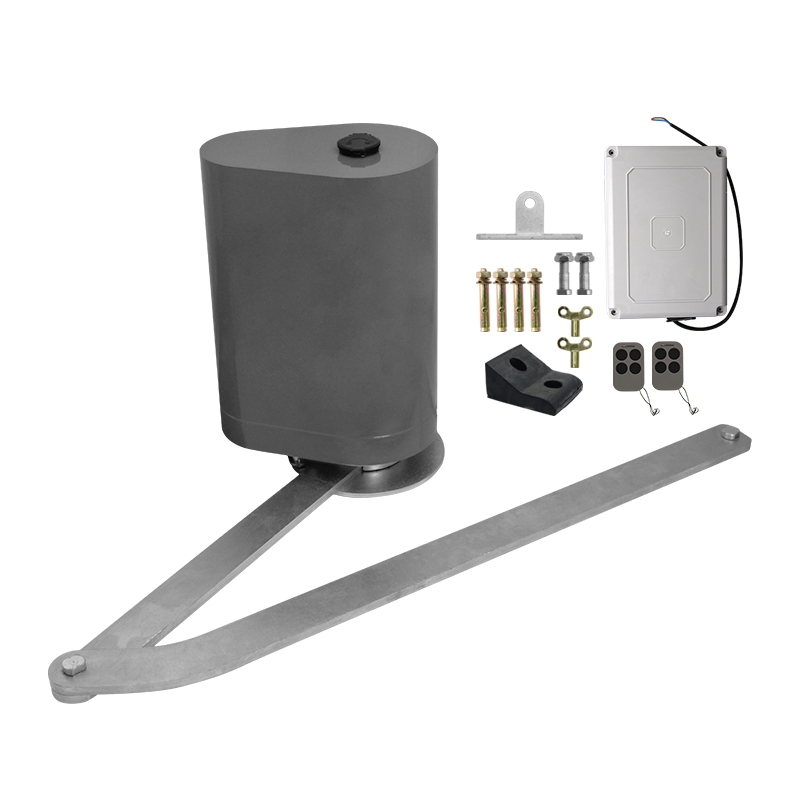

Accessories Included With Bifold Swing Gate MotorControl Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, Wall Mount Kit.
Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

Technical Parameters:

  1. Control Panel Voltage: AC24V, available for 24 V backup battery.
  2. Applicable Range: Suitable for double arms swing gate opener.
  3. Encoder For a transmitter: Our own customized rolling code.
  4. Support remote control: Can memorize 120PCS transmitters at most
  5. Motor character: 24V DC motor x 2
Bifold Swing Gate Motor MR-SWGM250Bifold Swing Gate Motor MR-SWGM250
Bifold Swing Gate Motor MR-SWGM250

250Kgs Auto System Gate Operators Trackless Bifold Swing Gate Motor
Bifold Swing Gate Motor MR-SWGM250
Bifold Swing Gate Motor MR-SWGM250
Bifold Swing Gate Motor MR-SWGM250
Bifold Swing Gate Motor MR-SWGM250
Control Board: MR-22B
  1. set the soft start time
  2. set the level of stall force
  3. set the auto close time after swiping the card
  4. set the interval time
  5. set auto close time
  6. set lamp/alarm output control
  7. set lock time
  8. choose single/double gate open
  9. choose photocell work in NC or NO
  10. reset
Bifold Swing Gate Motor MR-SWGM250
NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!



ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SWGM250
Type Automatic Gate Operator
Name Bifold Swing Gate Motor
Material Aluminum & Plastic / Stainless Steel
Power Supply 220v / 110v  50Hz /60Hz
Max. Operating Current 4A for maximum 10 seconds
Max. Gate weight 250kg per leaf
Max gate length 2.5 meters
Operating Temperature -20ºc ∼ +50ºc
Duty Cycle 20%
Motor Weight 6.30kg
MOQ 3 Set
Application Residentials, Apartments



Accessories Included With Bifold Swing Gate MotorControl Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, Wall Mount Kit.
Optional AccessoriesPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
