Italian Operators 24Vdc / 230Vac Motor for Swing Gates Up to 5m

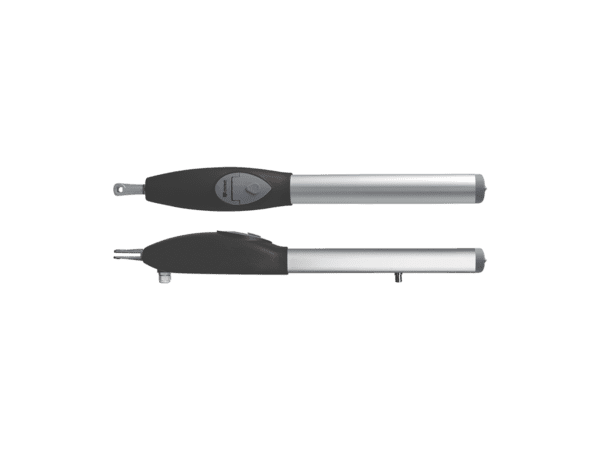

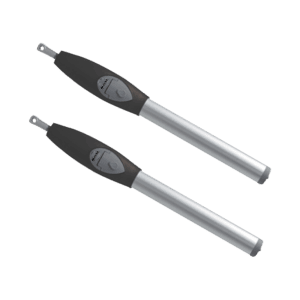

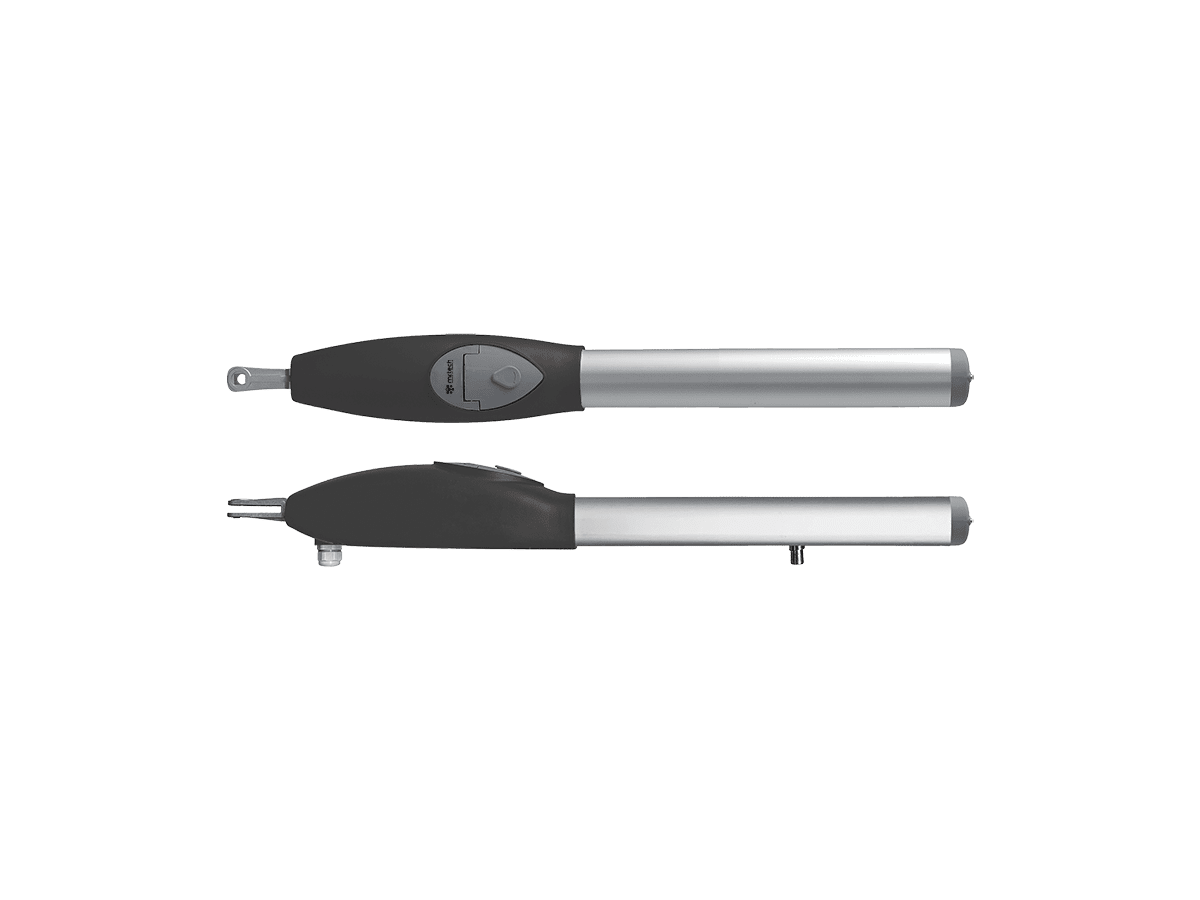

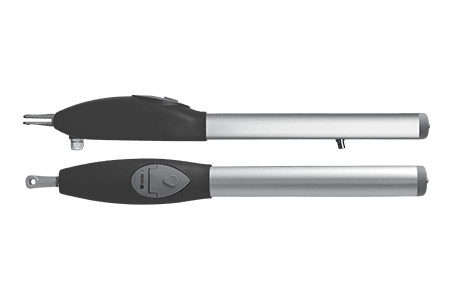

Gearmotor for swing gates with maximum length 5 m, 24 Vdc, with opening mechanical limit switch, with encoder

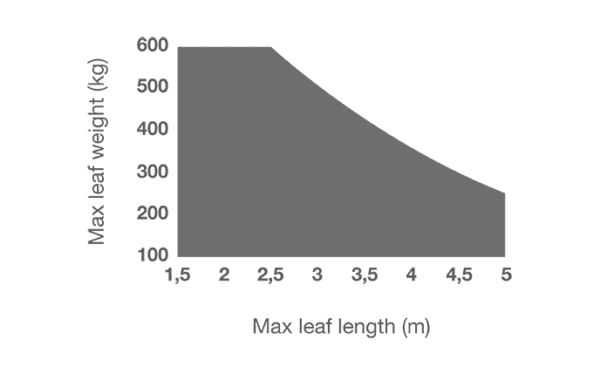

Gate shape and height and weather conditions can considerably reduce the values shown above, in the graph.
Advantages of Automatic Swing Gate Openers:
- The Control panel can connect flashing lights, photocells, backup batteries, solar systems, keypads, and so on.
- Controlling single or double-leaf motor is optional.
- Can adjust open and close door time.
- 24VDC backup battery can be input. (this uses a large controller, our standard controller is small size.)
- A high-speed operation can be adjusted.
- Setting extra remote control is easy.
- Automatic Swing Gates Motors Work with a Wi-Fi device to operate the gate on a Mobile Phone App.
- Automatic swing gates can work even under the most difficult conditions.
- Gates are specially designed with a top and bottom pivot mechanism
- Dustproof operating mechanism increases the life of our gates
- Our Gates leaves are free from sagging/bending
- All Swing Gates Motors are simple and reliable to operate
- With its anti-shearing shape, the driving arm allows the leaves to move in total safety.
- New mechanical solutions guarantee long life and high quality of its product
- Easy to install operator.
- Hand release with personalized key for emergency manual operation
- Available with hinged side gates for pedestrian use.
- Vertical safety edge can be incorporated to protect in case of any accidents.
- Various industrial gate designs available to suit clients’ choice
- Sandblasting, Hot deep galvanizing process, and painting can be provided
Product Specification
| Usage/Application | Italian Operators 24Vdc / 230Vac Motor for Swing Gates |
| Speed | 2.7 CM/S |
| 90° Opening time | 25-35 S |
| Force | 1400N |
| Duty cycle percentage | 80% |
| Control unit | YES |
| Voltage | 24 VDC |
| AC Voltage Frequency | 240V, 50/60Hz |
| Nominal current | 5 A |
| Nominal power | 120 W |
| Thermal protection | 150 °C |
| Appliance isolation class | I |
| Degree of protection | IP44 |
| Operating temperature | -20- +55 °C |
| Max leaf weight | 600kg |
| Max leaf length | 5m |
| Product dimensions (W – D – H) | 995 – 108 – 110mm |
| Packaging dimensions (W – D – H) | 145 – 1020 – 120mm |
| Packaging volume | 0,01775 M3 |
| Packed item weight | 8.8KG |
| Items per pallet/box | 25NOS |
Swing gates are probably the most popular & widely used of all, as they present well and are very functional. They are ideal where driveway access is critical. The gates can be designed to swing either inward or outward.
Optional Accessories
Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
