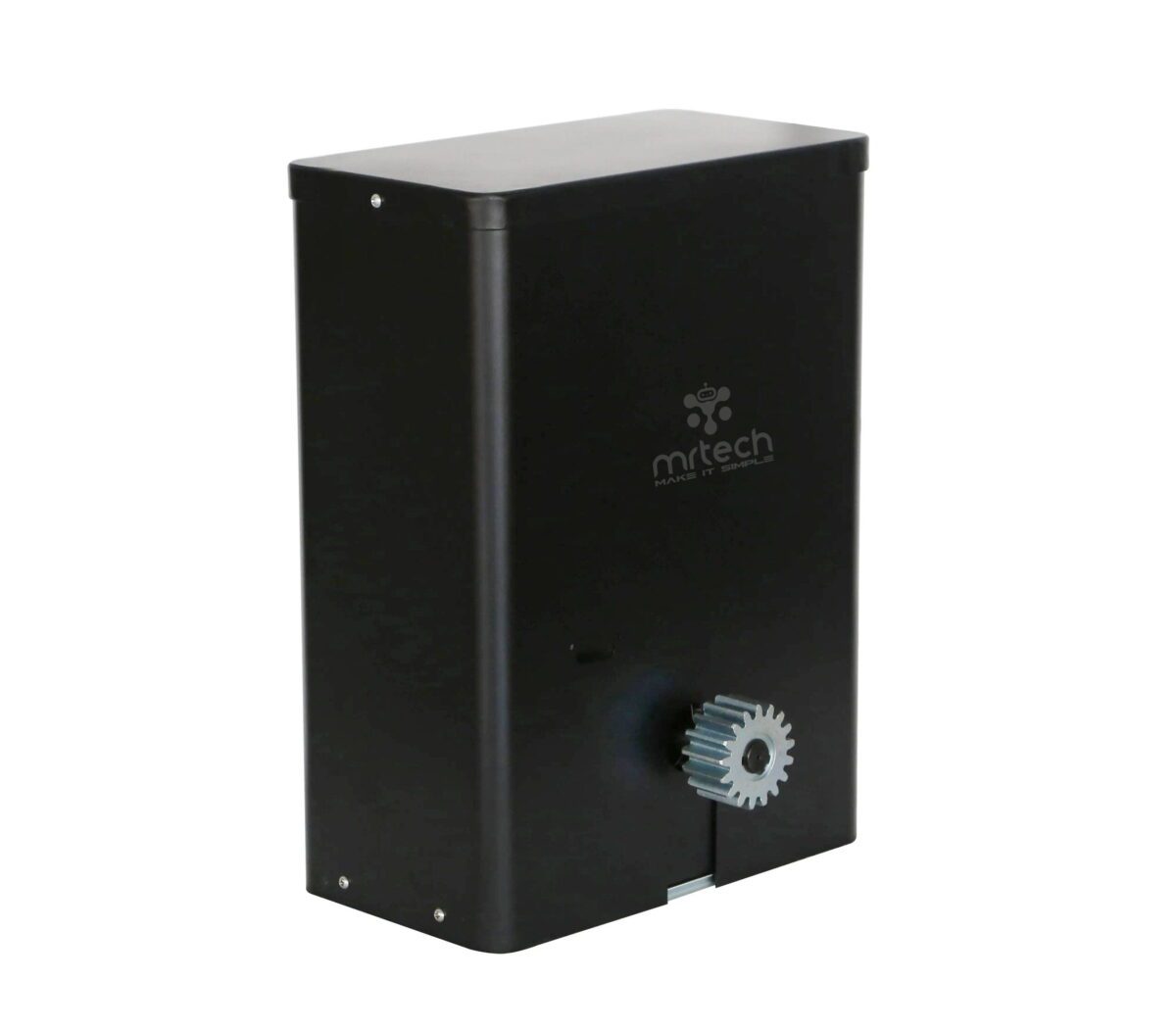

    Heavy Duty Industrial Factory Sliding Gate 5000 Kg Motor

    Good Quality industrial sliding gates would normally run back and forth on grooved or circular wheels along a level horizontal beam fitted with a channel. the motors will drive the gate back and forth using a rack and pinion mechanism on the gate powered by a cog at a low level on the Factory Sliding Gate 5000 Kg Motor.

    This configuration however does require that the ground is relatively level and that a steel beam can be sunk into the ground the full length of the gate in both the open and closed position.

    Any sliding gate in such circumstances requires to slide at least its own with either side of the opening, also taking into account the width of the Industrial Factory Sliding Gate 5000 Kg Motor (usually around 400mm)

    • Thermal Protection Built-in Motor Winding.
    • There is a cover protection for the gear, it’s more safe.
    • The turbine and worm drive setup working steadily.
    • Multiple interfaces ( infrared, solar, bluetooth, alarm lamp, camera, external button, etc.)
    • Soft start and slow stop technology, auto rever function
    • Assemble easily. In case of power failure, the gate can be opened and closed function manually after the release clutch
    • Auto reverse function when hitting an obstacle during closing manually key release design for emergency purposes

    Heavy Duty Industrial Factory Sliding Gate 5000 Kg Motor

    Specifications Technical data

    TypeFactory Sliding Gate 5000 Kg Motor
    ModelMR SLGM5000
    Project Solution CapabilityTotal Solution for  Projects
    Power SupplyAC 220VAC/ 50Hz or 380v / 50Hz
    Motor Power1500W
    Control ModelFrequency Converter
    Gate Moving Speed10m/min
    Motor Speed1400-1680 rpm
    Maximum Weight of Gate5000kg
    Customise Weight of Gate Motor3000kg / 3500kg / 4000kg / 4500kg / 5000kg
    Max. Output Torque220N.M
    Limit SwitchEncoder, Magnetic, or Spring limit switches
    Noise<60dB
    Working Dutyno limit
    Working Temperature-20ºC ~+50ºC
    IP GradeIP54
    FeatureEasy Install
    Warranty1 year
    Driven ModeGear
    Standard Configuration1 motor, 1 control box, 2 remote controls, 2keys, 2magneetic limit switches, 1 mounting plate, fixing accessories

    Heavy Duty Industrial Factory Sliding Gate 5000 Kg Motor

    Factory Sliding Gate 5000 Kg Motor Optional Used

    Sliding gates, Sectional sliding gates, Telescope Sliding gates, Cantilever Sliding gates, Skylight glass roof, Curved folding Sliding gates

    Optional Accessories Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

    Heavy Duty Industrial Factory Sliding Gate 5000 Kg Motor

    Optional Used

    Sliding gates, Sectional sliding gates, Telescope Sliding gates, Cantilever Sliding gates, Skylight glass roof, Curved folding Sliding gates

    That industrial sliding gate opener is exclusively made of highly resistant components and has been designed for the automation of very have sliding gates, Mr. Tech heavy duty slide gate operator has a manual unlocking mechanism that allows the gate to be moved if an electrical power blackout situation occurs and the powerful three-phase self ventilated gear motor with it’s oil bath or grees gearbox guarantees intensive use.

    The control unit with an inverter and acceleration-deceleration ramps makes the Mr. Tech series industrial Factory Sliding Gate 5000 Kg Motor openers very safe and extremely powerful

    ApplicationMedical Stores, Houses, Industries, Stores, Warehouses, restaurants, etc

    Heavy Duty Industrial Factory Sliding Gate 5000 Kg Motor

    MAIN FEATURES

    1. Space saver
    2. No gates left open!
    3. Increased privacy no uninvited visitors
    4. Greater convenience and improved quality of life
    5. Safety devices as standard
    6. Various control options
    7. Gates can be locked in open or closed position
    8. Suitable for industrial use
    9. Very easy to install on both new and existing gate
    10. Control to stop anytime while the gate is moving
    11. In case of power failure just unlock the device with a personalized key
    12. Wide range of electromechanical operators for sliding gates up to 5000kg weight
    NoticeIf you want to place an order, please contact the seller, and we will calculate the cheapest freight for you!
