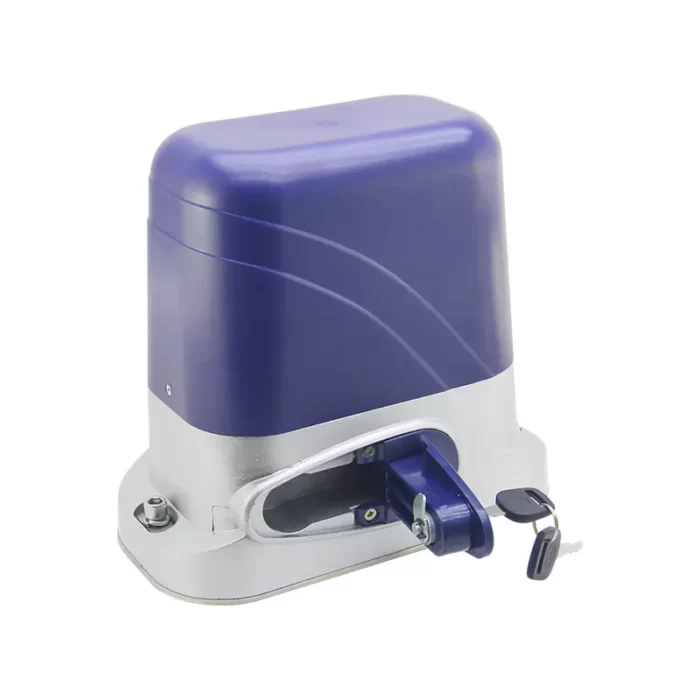

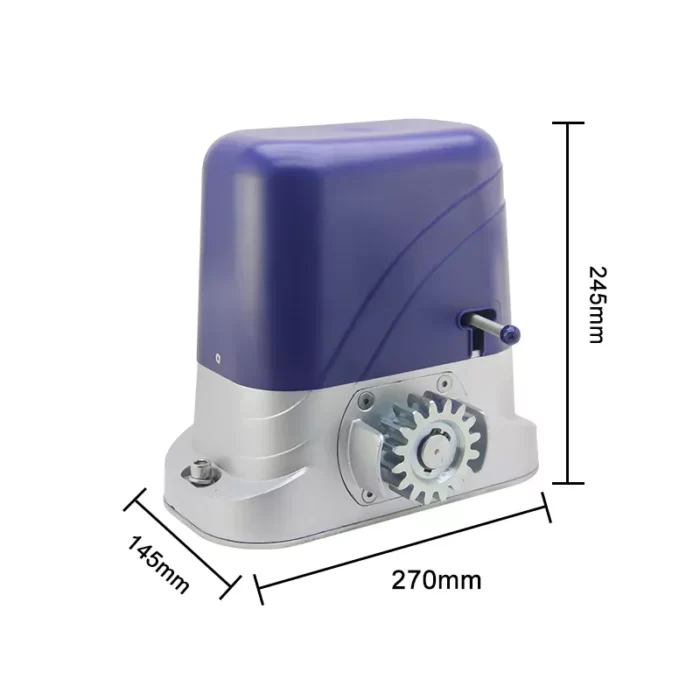

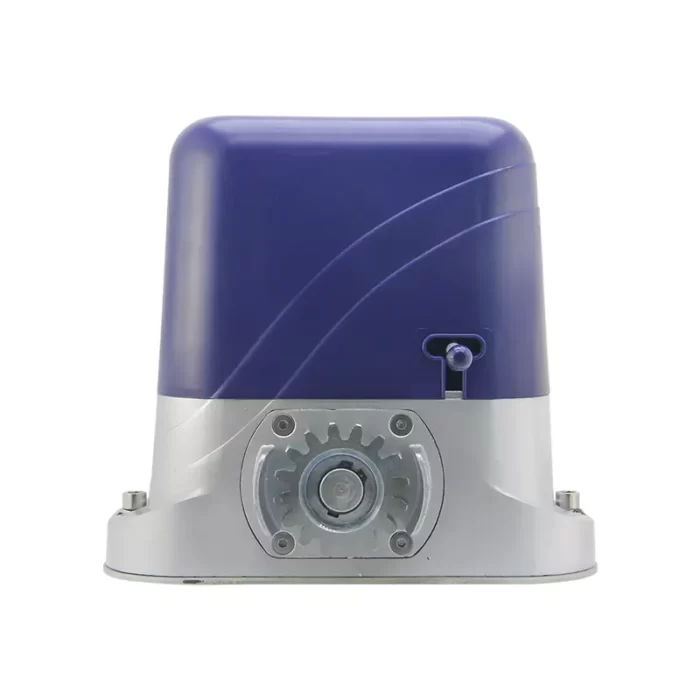

Automatic Sliding Gate Opener MR-SLGM1200
Automatic Sliding Gate Opener MR-SLGM1200 are widely used motor type which was proposed for industrial, Residentials, Commercial, etc. The modern device are used to control the gate from anywhere.
Automatic Sliding Gate Opener MR-SLGM1200
The 1200kg automatic Sliding Gate Opener is designed with an AC motor, and the gear rack operator provides a soft start, lasting operation, and slow down which make it ideal for most applications.
It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat. You can connect a solar power system or backup battery to get power, and also can connect with an AC transformer to get power from home.
Specification
| ITEM | DESCRIPTION |
| Brand Name | MRTECH |
| Model Number | MR-SLGM1200 |
| Type | Automatic Gate Operator |
| Name | Sliding Gate Motor |
| Material | Aluminum & Plastic |
| Power Supply | 220v AC / 110v AC |
| Rated Motor power | 350 W |
| Max. Loading | 1200 KG |
| Output Speed | 50 r/min |
| Open/close Speed | 12 m/min |
| Limit Switch Type | Magnetic / Spring |
| Output Torque | 30 N.m |
| Max. pull force | 1100N |
| MOQ | 3 Set |
| Application | Residentials, Apartments, Industrials, etc. |
| Accessories Included With Motor | Control Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion , Fitting Accessories. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Features of Automatic Sliding Gate Opener:
- AC/DC motor with built-in control panel.
- Built-in manual override with 2 supplied unique override keys in case of emergency or power failure.
- All metal gears make them durable and long-lasting.
- Soft start and soft stop.
- Resistance sensitivity and auto-closing delay time adjustable.
- Stop/Reverse in case of obstruction during gate opening /closing.
- Reliable mechanical spring limit or magnetic limit optional.
- Automatic Sliding Gate Opener the aluminum alloy base makes it available for all kinds of bad weather.
- Backup batteries and solar systems are available for DC sliding.
- 12 months guarantee; lifelong post-sales service.
Technical Specification:
| Rated Voltage | 220v±10% / 110v±10% 50Hz / 60Hz | 220v±10% / 110v±10% 50Hz / 60Hz | 220v±10% / 110v±10% 50Hz / 60Hz | 220v±10% / 110v±10% 50Hz / 60Hz |
| Max Loading Weight | 500kg | 600kg | 800kg | 1300 |
| Gear Modulus | M=4 | M=4 | M=4 | M=4 |
| Open/Close speed | 15m / min | 12m / min | 12m / min | 12 m / min |
| Electric Motor | 24v DC | 220v AC / 110v AC | 220v AC / 110v AC | 220v AC / 110v AC |
| Rated motor Power | 120W | 200W | 280W | 380W |
| Output Speed | 5or/min±10% | 5or/min±10% | 5or/min±10% | 5or/min±10% |
| Output Torque(N.m) | 16.8-32 N.m | 16.8-32 N.m | 16.8-32 N.m | 16.8-32 N.m |
| Limit switch | Spring / Magnetic | Spring / Magnetic | Spring / Magnetic | Spring / Magnetic |
| Working Temperature | -20ºC ∼ +55ºC | -20ºC ∼ +55ºC | -20ºC ∼ +55ºC | -20ºC ∼ +55ºC |

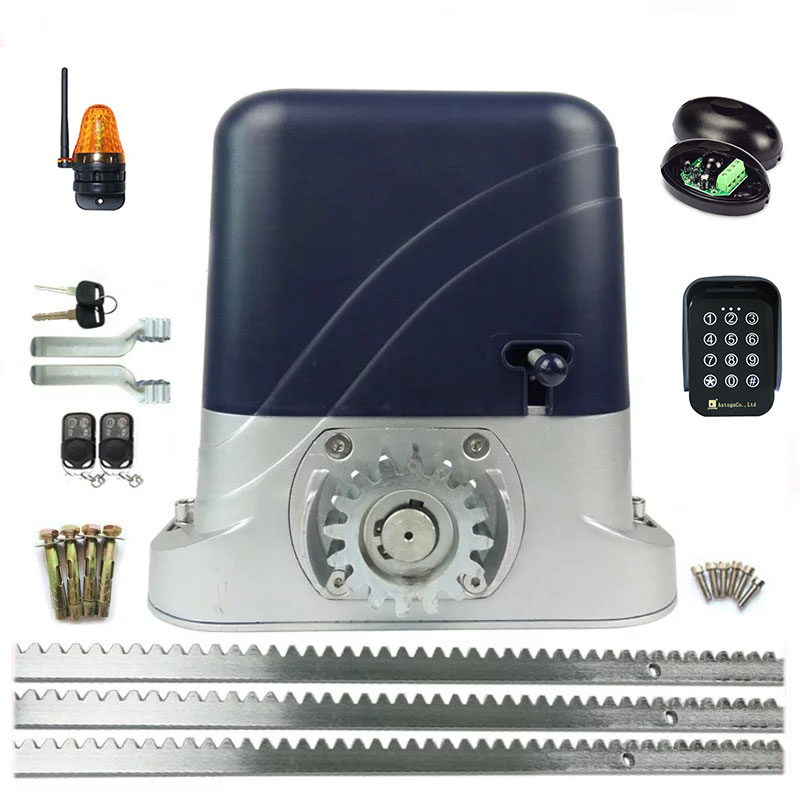

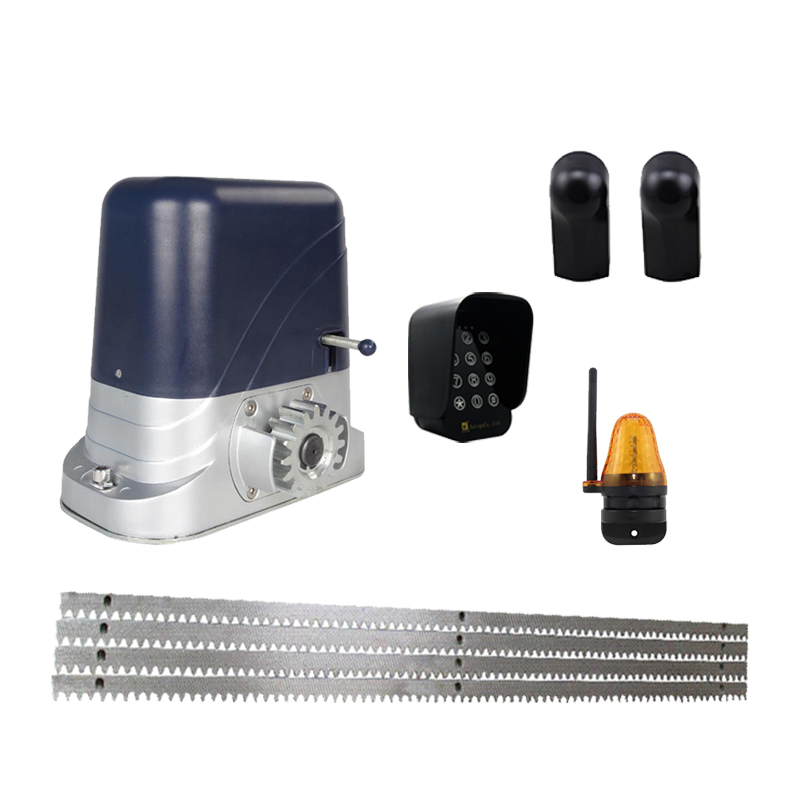

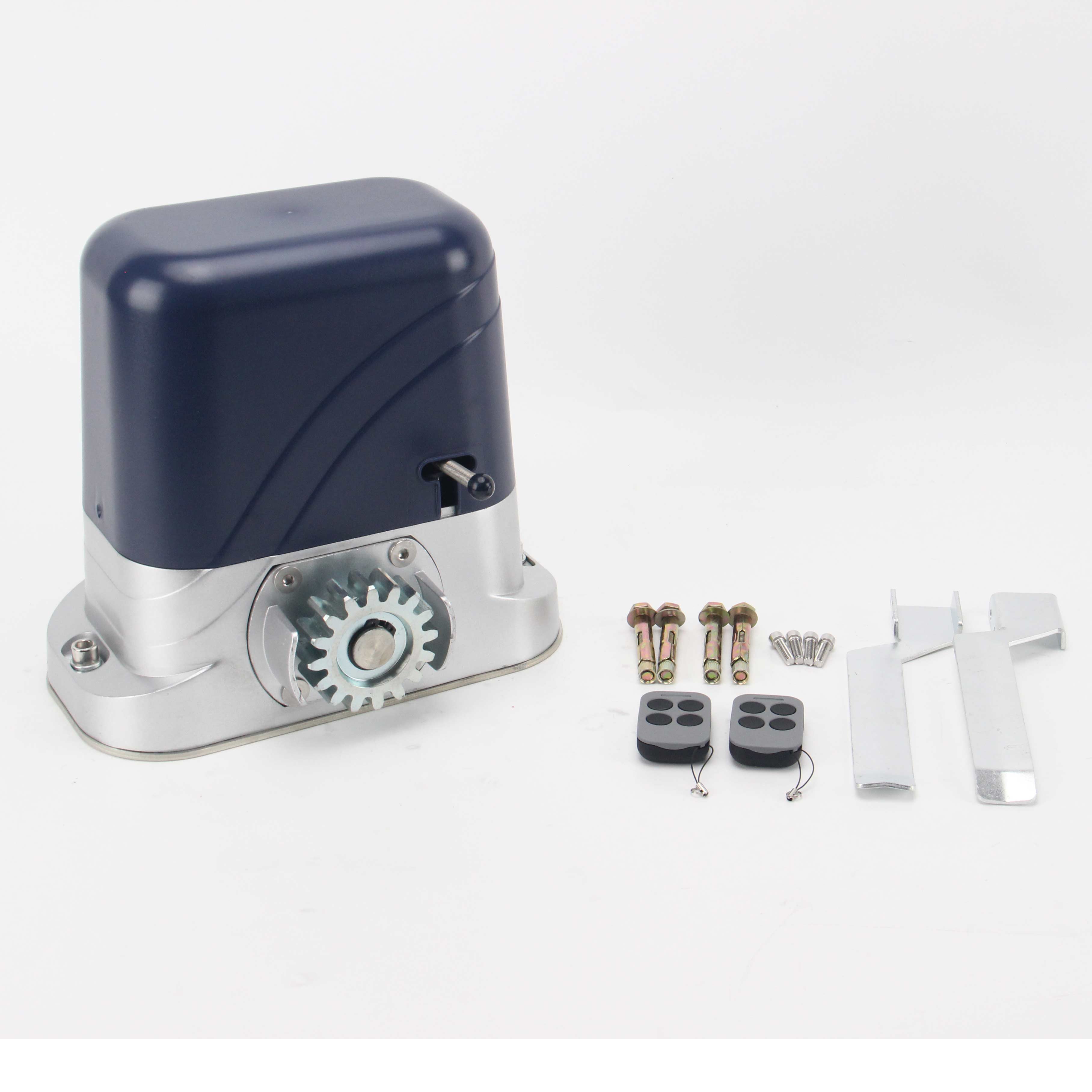

The following are supplied with the AC motor electric sliding gate opener kit:
1*motor with built-in control panel
2*remote controls
(Rack steel or nylon racks are optional)
1*handle hardware accessories
2*remote controls
(Rack steel or nylon racks are optional)
1*handle hardware accessories
Basic function:
- Weatherproof
- Manual Override
- All Metal Gears
- Metal Gear Drive
| ITEM | DESCRIPTION |
| Brand Name | MRTECH |
| Model Number | MR-SLGM1200 |
| Type | Automatic Gate Operator |
| Name | Sliding Gate Motor |
| Material | Aluminum & Plastic |
| Power Supply | 220v AC / 110v AC |
| Rated Motor power | 350 W |
| Max. Loading | 1200 KG |
| Output Speed | 50 r/min |
| Open/close Speed | 12 m/min |
| Limit Switch Type | Magnetic / Spring |
| Output Torque | 30 N.m |
| Max. pull force | 1100N |
| MOQ | 3 Set |
| Application | Residentials, Apartments, Industrials, etc. |
| Accessories Included With Motor | Control Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion , Fitting Accessories. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
