MRTRS-4000 Rolling Shutter Door Motor


High-quality Automatic roller shutter door machine rolling door motor are using general AC motor with mature process,

MRTRS-4000 Rolling Shutter Door Motor

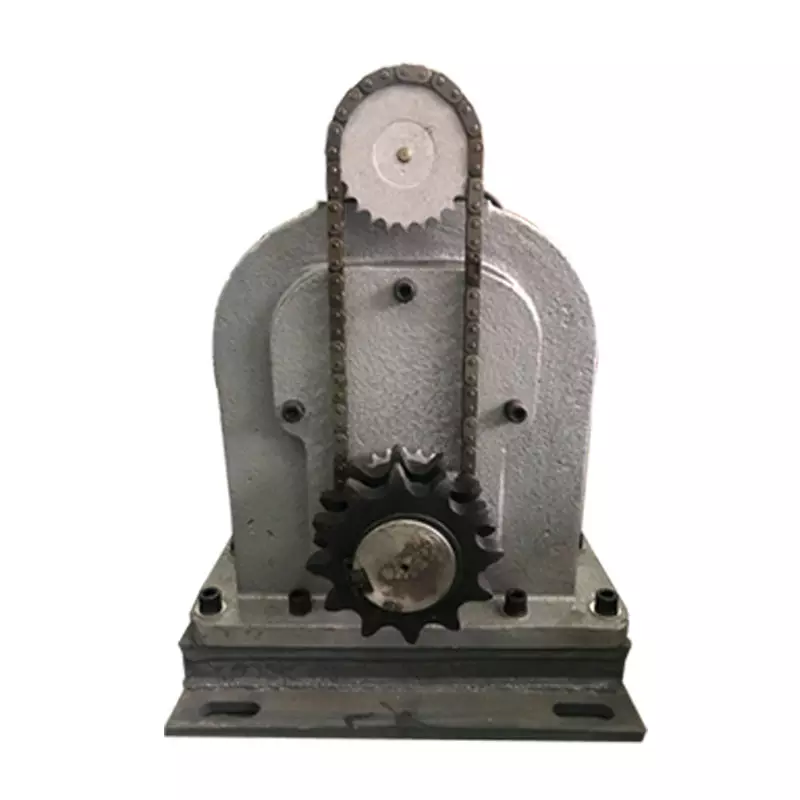

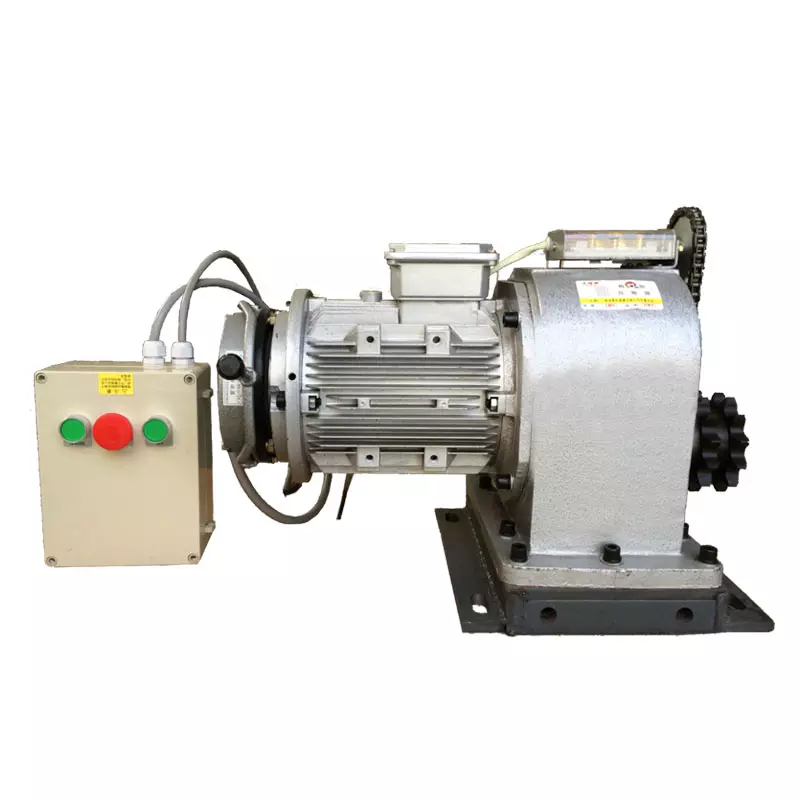

The electrical Type Rolling Shutter Door Motor is operated by using a range of electrical actuators capable of operating shutters of all sizes. They are made up of self-braking worm gear with hollow shafts, integrated limit switches, and integrated safety brakes with overload protection. Operationally, Shutter Door Motor is relatively easy, hassle-free, and extremely safe and operates by integrating the control accessories like push-button, key selector or remote controls. During downtime, the option for manual operation is also available

MRTRS-4000 Rolling Shutter Door Motor

Rolling Shutter Door Motor Features:

  • Overworking for a short time.

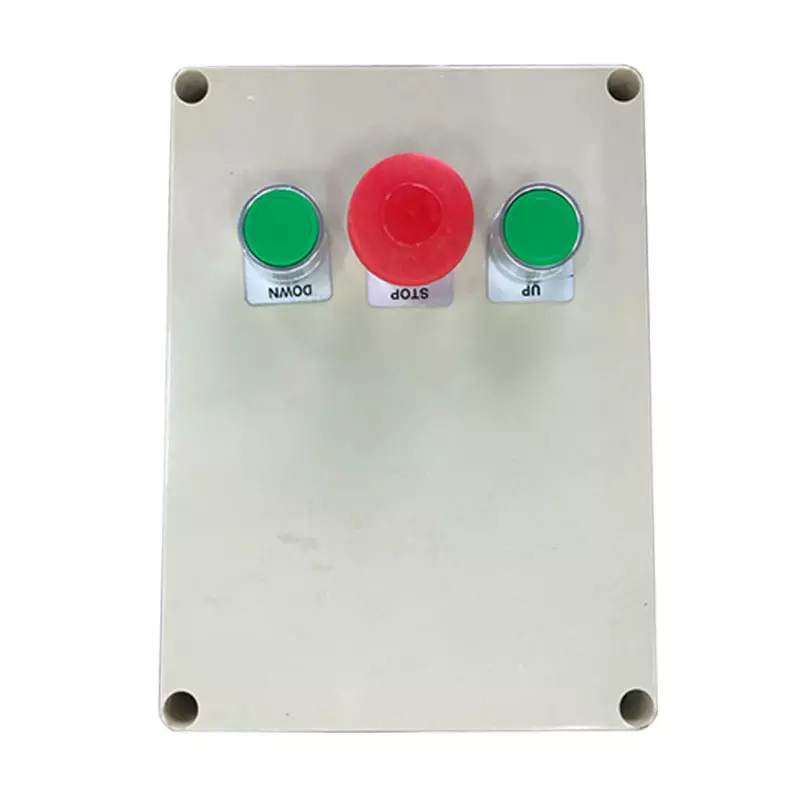

  • Built in Control panel.
  • Overheat Protection.
  • Limit Switch Unit enables precise adjustment of door in UP and Down positions.
  • Electric and manual operations.
  • Release chain in case of power Failure.
  • Smooth Noiseless Function.
  • The Rolling Shutter Door Motor can be installed both on the Left / Right-hand side.
  • Safety Protection Sensor



MRTRS-4000 Rolling Shutter Door Motor

MRTRS-4000 Rolling Shutter Door MotorMRTRS-4000 Rolling Shutter Door Motor

 Most Powerful Shutter Door Motor:

AC Rolling shutter door motors are generally considered to be more powerful than DC motors because they can generate higher torque by using more powerful current. However, DC shutter motors are typically more efficient and make better use of their input energy.

Specification:

ITEM DESCRIPTION
Brand NameMRTECH
Model NumberMRTRS-4000
TypeAutomatic Door Operator
NameRolling Shutter Door Motor
UsageGarage Shutter Door
MaterialAluminum alloy
Voltage380V 60Hz
Input Power3000 w
Rated Current6.7 A
Output Torque8950 Nm
Output Speed3.2 (r/min)
Max. Elevating distance16 m
Max. Lifting 4000 kg
Motor Weight33.5 KG
Standard Tube6 inch
MOQ3 Set
ApplicationResidentials, Commercials, Industrials



Accessories Included With MotorLock Box with Key, Sprocket Bracket (main), Side Bracket, Transmission Plate, Supporting Plate, Shaft, Bearing Seat, Bearing, Chain, and Chain Wheel.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, and Face Recognition.

MRTRS-4000 Rolling Shutter Door Motor

Differences between  AC Motor and DC Motor?

In AC Motor, the armature is stationary while the magnetic field rotates. In DC Motors, the armature rotates while the magnetic field remains stationary. In AC Motors, the three input terminals (RYB) are present. In DC Motors, two input terminals ( Positive and Negative ) are present.

Technical Specification:

TypeInput Power
(w)
Max Lifting Force
( kg.f )
Output Torque
(Nm)
Output Speed
(r/min)
Rated Current
(A)
Max Elevating Distance
(m)
Max Diameter of Roller
(m)
Type of ChainWeight of the main machine
(kg)
220V 50Hz  / 220V 60Hz  /  110V 60Hz
300-1p4953001685.53.360.4208A11.8
400-1p5104002255.43.360.4208A11.8
500-1p5305003435.53.960.4210A12.8
600-1p5306004125.33.960.4810A12.8
800-1p6858006474.64.590.5410A13.8
1000-1p67010008094.64.590.5410A13.8
380V 50Hz  / 220V 60Hz  /  460V 60Hz
300-3P1803001685.41.260.4208A11.8
500-3P2505003435.71.360.4210A12.8
600-3P3706004125.31.160.4810A12.8
800-3P4008006474.6290.5410A13.8
1000-3P50010008094.42.390.5412A13.8
1300-3P600130010514.4290.6412A23
1500-3P800150016174.4290.6412A23
2000-3P1500200024503.64.5160.6416A27.4

MRTRS-4000 Rolling Shutter Door Motor

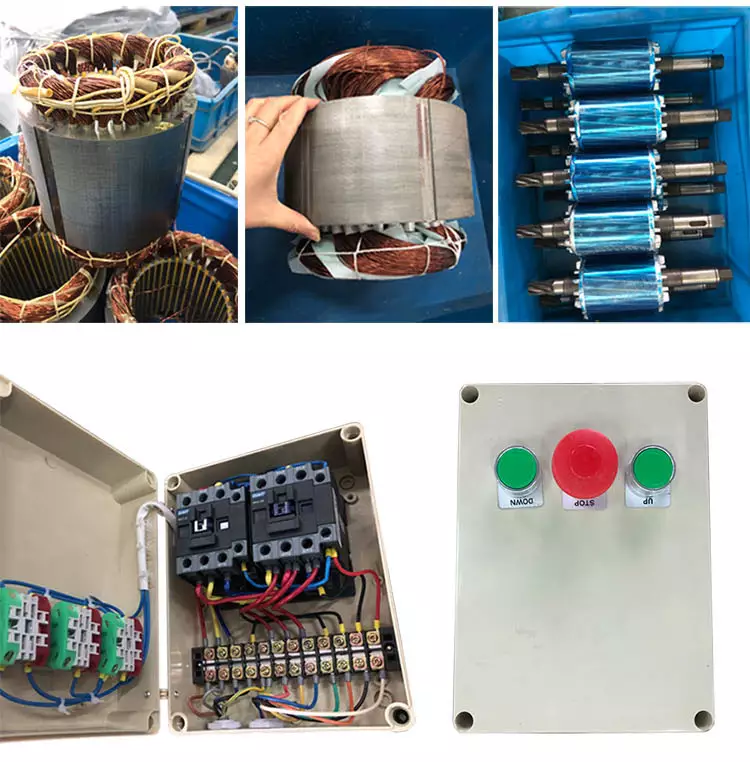

Full copper wire has a long service life, good performance, low noise, low vibration, advanced explosion-proof structure, high reliability, and convenient use and maintenance.





ITEM DESCRIPTION
Brand NameMRTECH
Model NumberMRTRS-4000
TypeAutomatic Door Operator
NameRolling Shutter Door Motor
UsageGarage Shutter Door
MaterialAluminum alloy
Voltage380V 60Hz
Input Power3000 w
Rated Current6.7 A
Output Torque8950 Nm
Output Speed3.2 (r/min)
Max. Elevating distance16 m
Max. Lifting 4000 kg
Motor Weight33.5 KG
Standard Tube6 inch
MOQ3 Set
ApplicationResidentials, Commercials, Industrials



Accessories Included With Motor Lock Box with Key, Sprocket Bracket (main), Side Bracket, Transmission Plate, Supporting Plate, Shaft, Bearing Seat, Bearing, Chain, Chain Wheel.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition.
