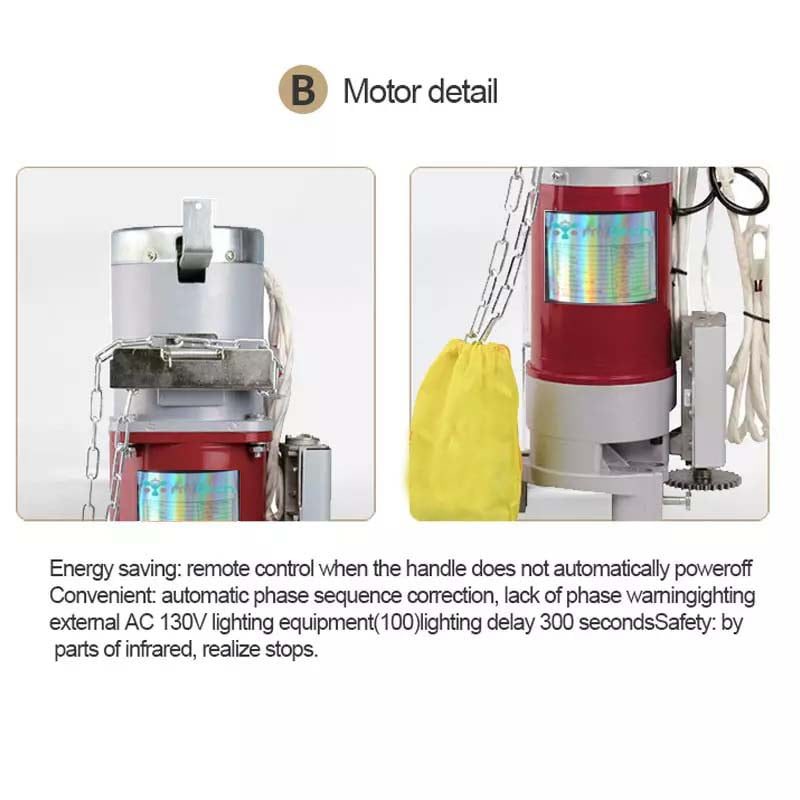

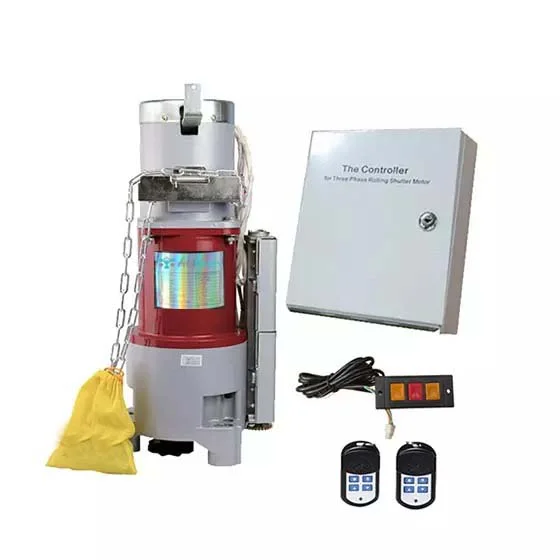

AC Rolling Shutter Motors MRTRS-1500-3 Phase
Owing to the presence of our expert team members, we have been able to offer a wide range of Rolling Shutter Motors. These are available with us in various technical specifications and ranges as per the precise demands and requirements of clients.
Side rolling shutter motors are most common automation product which is preferred by all automation companies across the world. Side shutter motors are mostly used by heavy industrial and regular-sized rolling shutters.
Features
- Overworking for a short time.

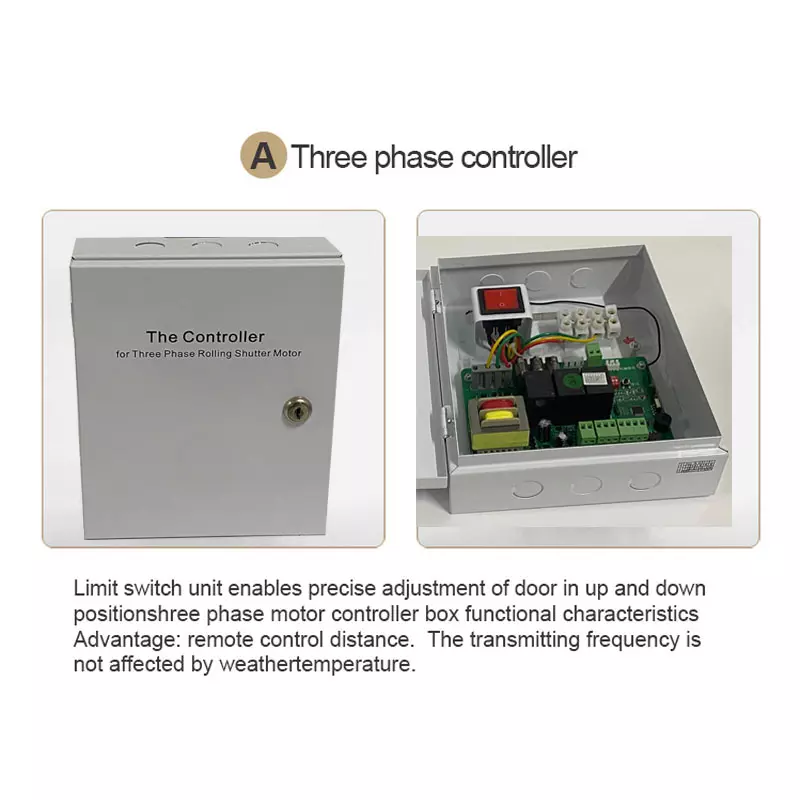

- Built in Control panel.
- Overheat Protection.
- Limit Switch Unit enables precise adjustment of door in UP and Down positions.
- Electric and manual operations.
- Release chain in case of power Failure.
- Smooth Noiseless Function.
- The Motor can be installed both on the Left / Right-hand side.
- Safety Protection Sensor
Specification:
| ITEM | DESCRIPTION |
| Brand Name | MR TECH |
| Model Number | MRTRS-1500-3 Phase |
| Type | Automatic Door Operator |
| Name | Door Operator |
| Usage | Garage Shutter Door |
| Material | Aluminum alloy |
| Voltage | 380V 50Hz 60Hz |
| Input Power | 800w |
| Rated Current | 2A |
| Output Torque | 1617 Nm |
| Output Speed | 4.4 (r/min) |
| Max. Elevating distance | 9 m |
| Max. Lifting | 1500 kg |
| Motor Weight | 23KG |
| Standard Tube | 6 inch |
| MOQ | 3 Set |
| Application | Residential, Commercials, Industrials |
| Accessories Included With MOTOR | Lock Box with Key, Sprocket Bracket (main), Side Bracket, Transmission Plate, Supporting Plate, Shaft, Bearing Seat, Bearing, Chain, and Chain Wheel. |
| Optional Accessories | Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, and Face Recognition. |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
Shutter Motors Differences between AC Motor and DC Motor?
In AC Motor, the armature is stationary while the magnetic field rotates. In DC Motors, the armature rotates while the magnetic field remains stationary. In AC Motors, the three input terminals (RYB) are present. In DC Motors, two input terminals ( Positive and Negative ) are present.
Technical Specification:
| Type | Input Power (w) | Max Lifting Force ( kg.f ) | Output Torque (Nm) | Output Speed (r/min) | Rated Current (A) | Max Elevating Distance (m) | Max Diameter of Roller (m) | Type of Chain | Weight of the main machine (kg) |
| 220V 50Hz / 220V 60Hz / 110V 60Hz | |||||||||
| 300-1p | 495 | 300 | 168 | 5.5 | 3.3 | 6 | 0.42 | 08A | 11.8 |
| 400-1p | 510 | 400 | 225 | 5.4 | 3.3 | 6 | 0.42 | 08A | 11.8 |
| 500-1p | 530 | 500 | 343 | 5.5 | 3.9 | 6 | 0.42 | 10A | 12.8 |
| 600-1p | 530 | 600 | 412 | 5.3 | 3.9 | 6 | 0.48 | 10A | 12.8 |
| 800-1p | 685 | 800 | 647 | 4.6 | 4.5 | 9 | 0.54 | 10A | 13.8 |
| 1000-1p | 670 | 1000 | 809 | 4.6 | 4.5 | 9 | 0.54 | 10A | 13.8 |
| 380V 50Hz / 220V 60Hz / 460V 60Hz | |||||||||
| 300-3P | 180 | 300 | 168 | 5.4 | 1.2 | 6 | 0.42 | 08A | 11.8 |
| 500-3P | 250 | 500 | 343 | 5.7 | 1.3 | 6 | 0.42 | 10A | 12.8 |
| 600-3P | 370 | 600 | 412 | 5.3 | 1.1 | 6 | 0.48 | 10A | 12.8 |
| 800-3P | 400 | 800 | 647 | 4.6 | 2 | 9 | 0.54 | 10A | 13.8 |
| 1000-3P | 500 | 1000 | 809 | 4.4 | 2.3 | 9 | 0.54 | 12A | 13.8 |
| 1300-3P | 600 | 1300 | 1051 | 4.4 | 2 | 9 | 0.64 | 12A | 23 |
| 1500-3P | 800 | 1500 | 1617 | 4.4 | 2 | 9 | 0.64 | 12A | 23 |
| 2000-3P | 1500 | 2000 | 2450 | 3.6 | 4.5 | 16 | 0.64 | 16A | 27.4 |
AC Motors Vs. DC Motors Advantages:
AC Motors Advantages:
- AC Motors are flexible and easy to control.
- Low startup power demands that also protect components on the receiving end.
- VFD or VSD add-ons that can control speed and torque at different stages of use.
- High durability and longer life spans.
- Capabilities for multi-phase configuration.
DC Motors Advantages:
- Simpler installation and maintenance.
- High startup power and torque.
- Fast response times to starting, stopping, and acceleration.
- Availability in several standard voltages.
Which Motor is More Powerful AC or DC?
AC shutter motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC shutter motors are typically more efficient and make better use of their input energy.
