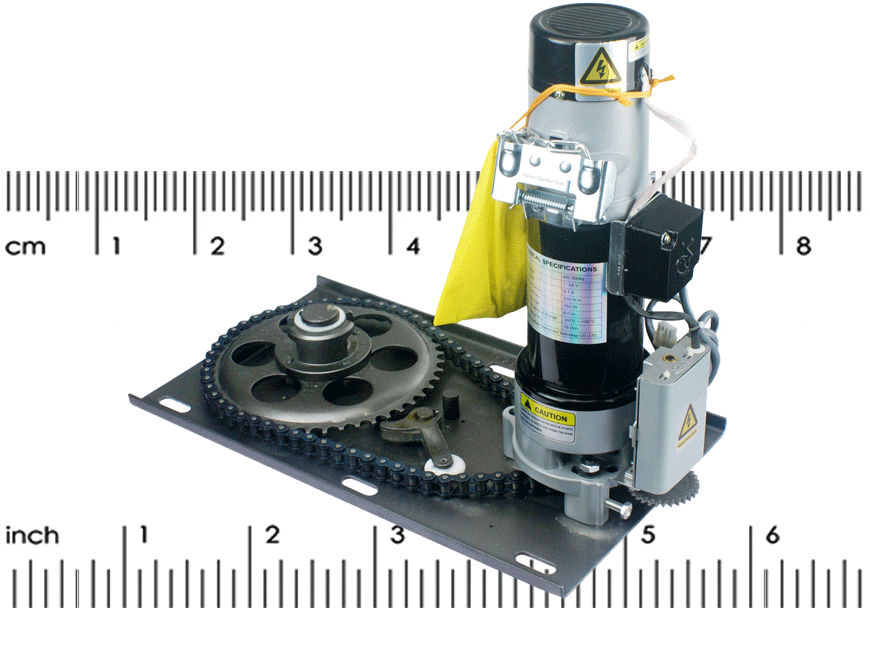

MRTRS-300 AC Rolling Shutter Motor


AC rolling shutter Motor are top selling product in automation products. The performance and durability of Mrtech motor are great

  • Easy to install and maintain, long useful life.
  • Can operate by remote control, push button, and manual chain

14,700.00 16,520.00

MRTRS-300 AC Rolling Shutter Motor

This Rolling Door Motor was produced by MR TECH for many years. It used the most advanced production techniques with the latest techniques available to provide reliability with diverse functionality. The product is known for its quality, it is easy to install and has proven to be a reliable accessory in a wide variety of applications.

E.g. buildings, garages, shopping malls, factories, warehouses, docks, airports, and so on.

MRTRS-300 AC Rolling Shutter Motor

  • Compact construction, large torque, and running without noise
  • With the national patent of chain-break protection
  • The motor will not burn down for the protection of thermal effect4. Separate circuit control ensures the security remote control: With a convenient and stable control function, can be operated by a transmitter; Control door open and close
  • Rolling Shutter Motor UPS automatic system is available, No bother of power failure
Type
300-600kg
color
OEM
Voltage
220V/380v
220V/380v
Copper/Aluminum
Frequency
50Hz/60Hz
50Hz/60Hz
6m-8m

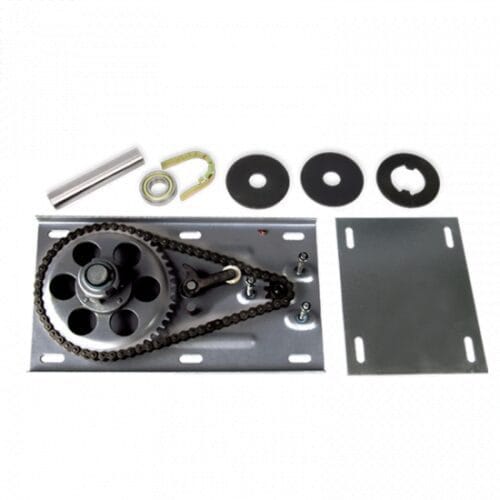

Accessories Included With MOTORLock Box with Key, Sprocket Bracket (main), Side Bracket, Transmission Plate, Supporting Plate, Shaft, Bearing Seat, Bearing, Chain, and Chain Wheel.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, and Face Recognition.

MRTRS-300 AC Rolling Shutter Motor

  1. Rolling Shutter Motors Nice designs with a powerful drive.
  2. With overheating protection, and overload protection.
  3. Easy to install and maintain, long useful life.
  4. Can operate by remote control, push button, and manual chain.
  5. Can work with UPS, so without worry about power off.
  6. With a Chain-break protection device, also can work with a safety brake, ensuring the safety of your life and property.
  7. bracket size:510*320*3.0/320*320*3.0/530*360*3.0/360/360*3.0, also other size can be choose.

MRTRS-300 AC Rolling Shutter Motor

  • 100% copper material inside the motor.
  • The transmission mechanism has a reasonable design, advanced technology, and specially developed grease, gear does not easily wear, is durable, has low noise, and has small shaking.
  • Protective measures: Placed inside the motor overheat protector, overheating protection function.

MRTRS-300 AC Rolling Shutter Motor

Rolling Shutter Motor Technical

No
Model
Rated output Torque(N.m)
Power/Frequency(V/Hz)
Max.Lift capacity(kgs)
Rated Current(A)
Continuous working time(Min)
Max.Lifting height(m)
1
AC 200kg
84
220V,110V, 240V 50Hz/60Hz
200
2.8
9
4
2
AC 300kg
168
220V,110V, 240V 50Hz/60Hz
300
2.8
9
6
3
AC 400kg
225
220V,110V, 240V 50Hz/60Hz
400
1.8
9
6
4
AC 500kg
343
220V,110V, 240V 50Hz/60Hz
500
3.2
9
6
5
AC 600kg
412
220V,110V, 240V 50Hz/60Hz
600
3.3
9
6
6
AC 800kg
647
220V,110V, 240V 50Hz/60Hz
800
4.7
9
7
7
AC1000kg
809
220V,110V, 240V 50Hz/60Hz
1000
4.9
9
7
8
AC 1300kg
1401
380V,220V, 415V 50Hz/60Hz
1300
3.2
15
7
9
AC 1500kg
1617
220V,110V, 240V 50Hz/60Hz
1500
3.8
15
8
10
AC 2000kg
2450
220V,110V, 240V 50Hz/60Hz
2000
4.1
15
12

AC/DC Rolling Shutter Motor

MRTRS-300 AC Rolling Shutter Motor

General mechanical motor Positioning accuracy: General— after a period of time the limit screw wear prone to run limit and limit device failure will rush to the top. Environmental impact: If too much dust, or moisture, will affect the accuracy of the limit; not affected by the surrounding electromagnetic signal

Absolute value electronic limit motor Positioning accuracy: Precision — absolute limit, no limit, no top. Environmental impact: Patented technology, and vacuum components, are not affected by the environment; not affected by the surrounding electromagnetic signal

MRTRS-300 AC Rolling Shutter Motor

No
Model
Rated output Torque(N.m)
Power/Frequency(V/Hz)
Max.Lift capacity(kgs)
Rated Current(A)
Continuous working time(Min)
Max.Lifting height(m)
1
AC 200kg
84
220V,110V, 240V 50Hz/60Hz
200
2.8
9
4
2
AC 300kg
168
220V,110V, 240V 50Hz/60Hz
300
2.8
9
6
3
AC 400kg
225
220V,110V, 240V 50Hz/60Hz
400
1.8
9
6
4
AC 500kg
343
220V,110V, 240V 50Hz/60Hz
500
3.2
9
6
5
AC 600kg
412
220V,110V, 240V 50Hz/60Hz
600
3.3
9
6
6
AC 800kg
647
220V,110V, 240V 50Hz/60Hz
800
4.7
9
7
7
AC1000kg
809
220V,110V, 240V 50Hz/60Hz
1000
4.9
9
7
8
AC 1300kg
1401
380V,220V, 415V 50Hz/60Hz
1300
3.2
15
7
9
AC 1500kg
1617
220V,110V, 240V 50Hz/60Hz
1500
3.8
15
8
10
AC 2000kg
2450
220V,110V, 240V 50Hz/60Hz
2000
4.1
15
12





Accessories Included With MOTORLock Box with Key, Sprocket Bracket (main), Side Bracket, Transmission Plate, Supporting Plate, Shaft, Bearing Seat, Bearing, Chain, Chain Wheel.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition.
