Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium Gym Single Channel Security

Quantity Price Discount
1-5  301,111.00 UNIT 0%
6-15  289,066.56 UNIT 4%
16-50  274,011.01 UNIT 9%
51+  301,111.00 UNIT  0.00
2 Items sold in last 2 hours

 301,111.00UNIT

4 in stock (can be backordered)

4 in stock (can be backordered)

SEND US A MESSAGE

    CONTACT INFORMATION

    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add  31,850.00 and we will send you the order for free shipping!
    Ordered:2
    Items available:4
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1

    Delivery

    7899 People watching this product now!

    Payment Methods:

    2Q==

    Description

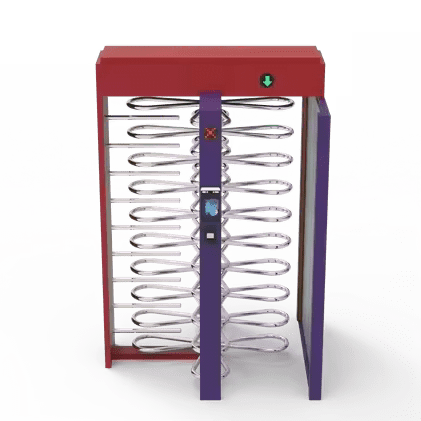

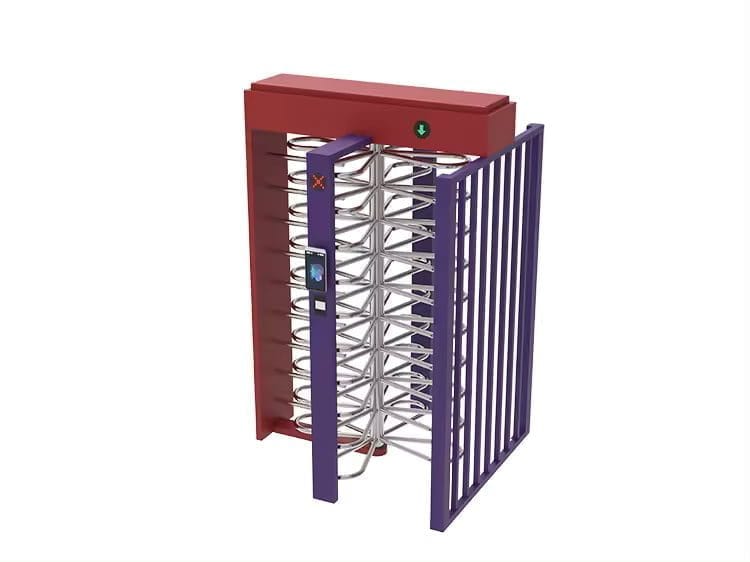

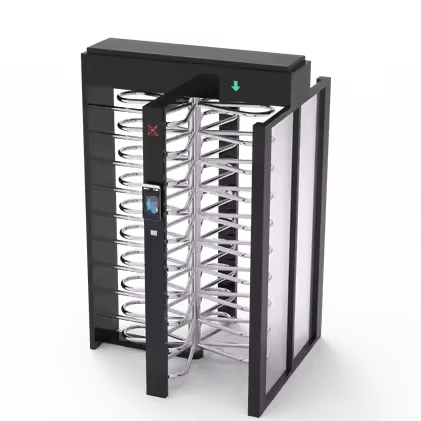

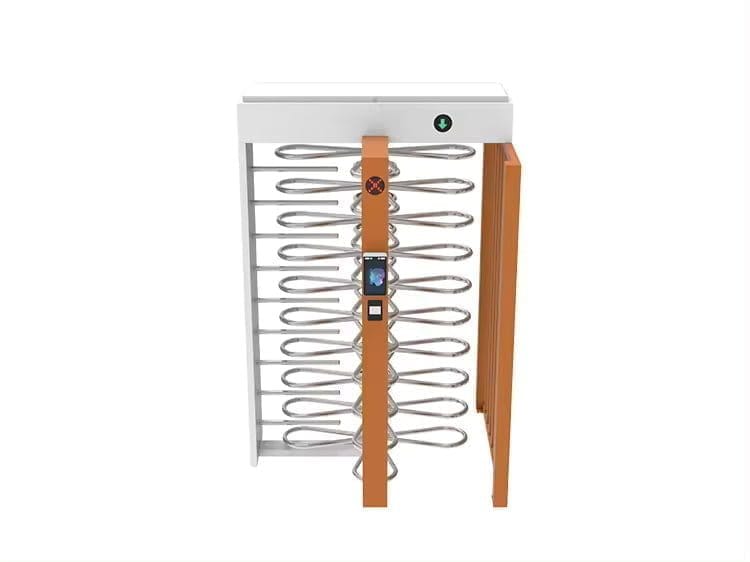

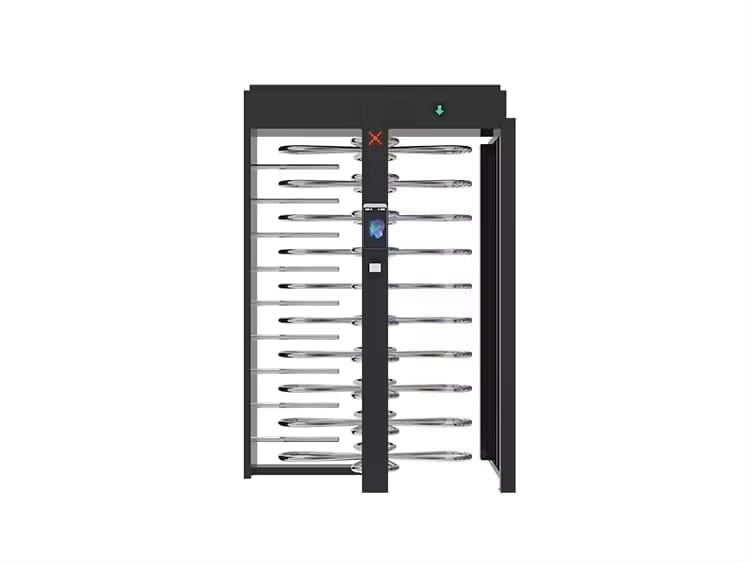

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

    If you are looking for the latest models of full height turnstiles, you have come at the right place- MRM TECHNOLOGY– a one-step certified company involved in designing and delivery of movement control devices. We design such turnstiles for pedestrian entrance control at high security areas.

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For StadiumFull Height Turnstile Security Scanner Gate In Squared Blocked Section Use For StadiumFull Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

    Product Technical Parameters

    Model NumberMR FHT321
    size1500*1350*2260mm
    MaterialSUS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage input220V, 50H; (support adjustable)
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle movement: 50KG, double movement: 70KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
    Driving MotorDC brushless motor: 24v/40w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Special Functions1. support normally open, normally closed, power failure door opening, fire linkage.

    2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode.

    3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

    Special Functions1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch.

    2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, Stadium Full Height Turnstile PRICE equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode;

    3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings;

    4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance;

    5. Realize early warning, convenient maintenance;

    6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc.

    Secondary development
    1. tripod turnstile gates, 2w swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;
    2. Can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate secondary development agreement(can provide RS485 protocol, windows API, limux API

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.

    Full Height Turnstile Security Scanner Gate In Squared Blocked Section Use For Stadium
