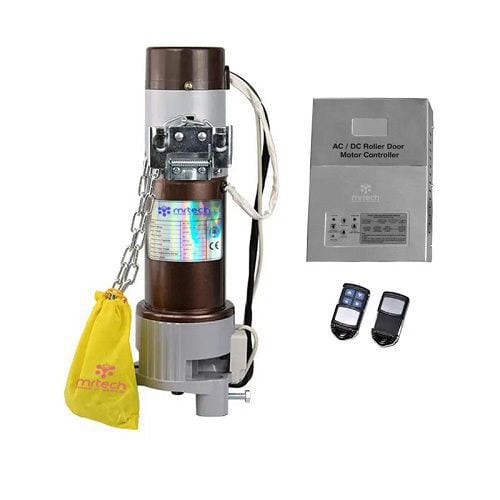

24v Roll-up 600 KG Side Shutter Door Motor
Roller shutters are simply where the door leaves roll up above the doorway. The principle of rolling up is used in all kinds of other modifications such as roller shutters. Roller shutters for shop windows, shutter garage doors, high-speed roller shutters, and more, see our roller shutters page and gallery.
|Model No||MR RSEDC600|
|Product Name||24v Roll-up 600 KG Side Shutter Door Motor|
|Motor Type||Side Rolling Shutter Motor|
|Input Voltage||DC 24V|
|Rated Current||13 A|
|Rated Power||300 W|
|Output Speed||3.0 r/min|
|Output Torque||412 N.m|
|Lifting Capacity||600 kg|
|Rolling Tube Diameter||5 “|
|Max. Elevating Distance||6 m|
|Short-time Rating||<15 Min|
|Remote Control Distance||>30m|
|Type of Chain||10A|
|Usage||Garage Shutter Door|

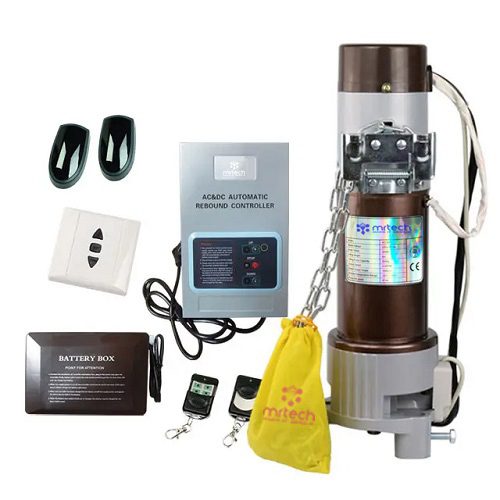

|Package Included||Motor, Battery, Radio frequency receiver, Remotes|

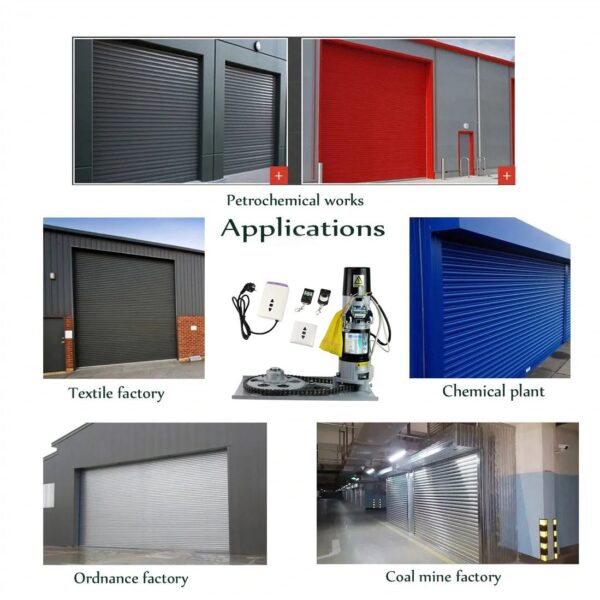

|Application||Apartments, Paper Plant, Shopping Malls, Villa, etc.|

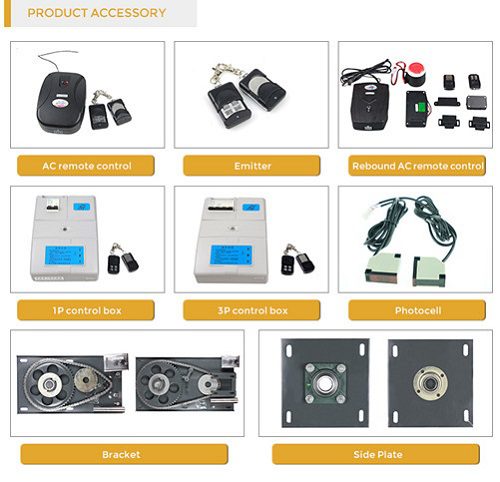

Optional Products for 24v Roll-up 600 KG Side Shutter Door Motor:
- Bluetooth controller.
- Wi-Fi mobile access Controller.
- RFID with Detector.
- Face Recognition.
- Photocell sensor.
- Electrical Side lock and center Lock.
- Bluetooth USB Controller.
- Safety edge.
- Safety Break system.
Electronic limit switch vs General Mechanical motor:

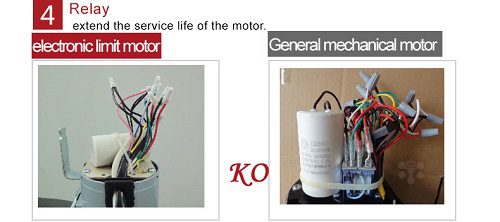

1. Relay: Extend the service life of the motor
- Electronic Limit Motor: The power is not affected, even after the blackout manual curtain more than the original set position automatically back to the memory after the call, do not rush. Optimize electronic circuits, reduce failures with wiring caps, and extend the service life of the motor
- General mechanical motor: Not affected no power, power outage even the manual operation of the shutter, same as the original set position, still can work normally after the power is back ( note: if the manual curtain exceeds the original set position will push out of the top). Electronic circuit wiring cap is messy, prone to failure, and motor life is low.
2: Lower noise: High energy and low noise

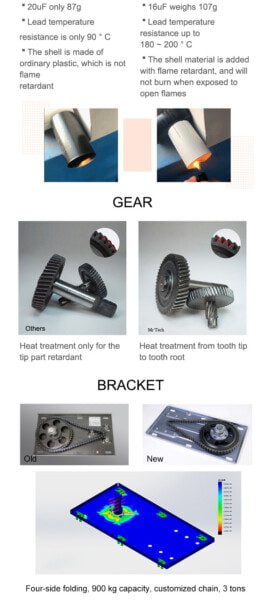

- Electronic Limit Motor: 24v Roll-up 600 KG Side Shutter Door Motor has Seven-level and high-precision gears for less wearing, high efficiency, less noise, and longer life.
- General mechanical motor: High noise, which affects the performance of the operation.

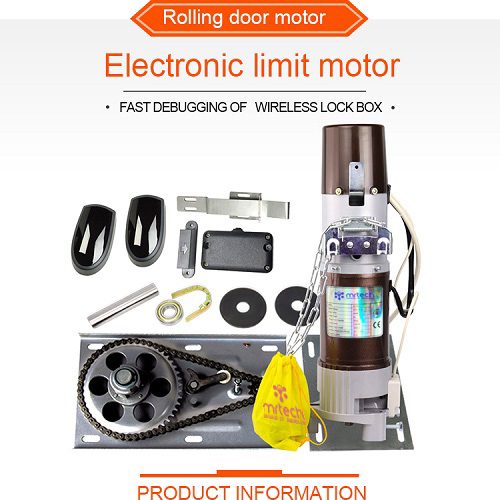

Electronic Limit Motor Debugging Procedure:
- Simple: Operate through the controller or remote.
- Control button on the debug, the door is open and closed to complete debugging
