WiFi TUYA App Fingerprint Touch Display Access Controller


One App can manage many systems. No need gateway to connect wifi There is a router inside the lock, no need to buy extra gateway.

WiFi TUYA App Fingerprint Touch Display Access Controller

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Access by TUYA App version support remote unlock from different city, Remote Authorization unlocking of mobile phone temporary password for remote unlocking. When you are away from home, relatives and friends visit or borrow temporarily, and gives temporary instructions for door-to-door cleaning and hygiene. The opening time can be effectively set, and the expired password will automatically become invalid.

MR-FKTS301 Metal & IP68 Waterproof WiFi TUYA App Fingerprint Touch Display Access Controller:

  1. This is a new generation of multi-function standalone access control.
  2. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
  3. It includes card reader mode and standalone access control mode etc..
  4. Its widely applied to different occasions, such as offices, residential communities, villas, banks, prisons, etc.

WiFi TUYA App Fingerprint Touch Display Access Controller Specification:

Product parameterProduct Description
ModelMR-FKTS301
Product NameMetal Fingerprint Access Control
Card TypeEM / HID / MF / CPU
User Capacity10,000 users
Fingerprint Capacity256
Keypad CharacteristicMetal backlight keypad
Operating VoltageDC 12-24V
Standby Current≤35mA
Operating Current≤100mA
Operating Temperature-40ºC∼60ºC
Operating Humidity0%∼95%

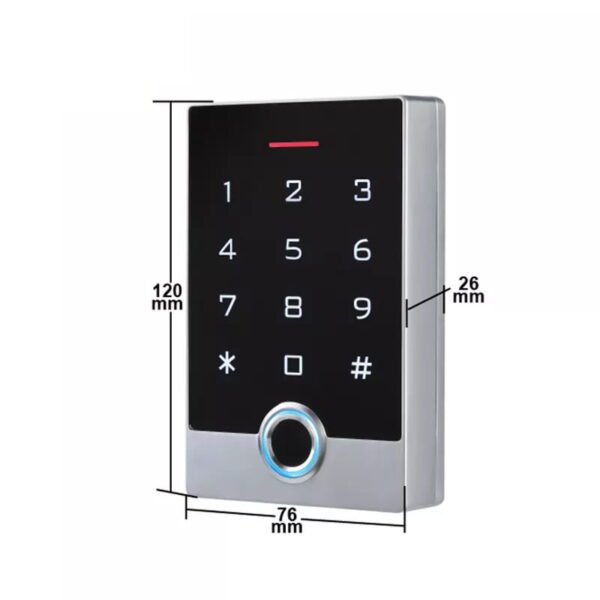

Dimensions120 x 77 x 24 mm
Access waysFingerprint, card, code or multiple combinations methods

Features of WiFi TUYA App Fingerprint Touch Display Access Controller

  • Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
  • Metal backlight keypad
  • Contains card reader mode. The transmission format could be adjusted by user.
  • Supports different access ways: Entry by Card + Code or Entry by multi cards
  • Support master added a card and deleted the card
  • User capacity: 10,000 users

Specifications

TUYA App Fingerprint Touch Display Standalone Access ControllerTUYA App Fingerprint Touch Display Standalone Access ControllerTUYA App Fingerprint Touch Display Standalone Access Controller

New WIFI Tuya APP IP68 Waterproof Biometric Fingerprint RFID Card Door Access Control System

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
Product parameterProduct Description
ModelMR-FKTS301
Product NameMetal Fingerprint Access Control
Card TypeEM / HID / MF / CPU
User Capacity10,000 users
Fingerprint Capacity256
Keypad CharacteristicMetal backlight keypad
Operating VoltageDC 12-24V
Standby Current≤35mA
Operating Current≤100mA
Operating Temperature-40ºC∼60ºC
Operating Humidity0%∼95%
Dimensions120 x 77 x 24 mm
Access waysFingerprint, card, code or multiple combinations methods
