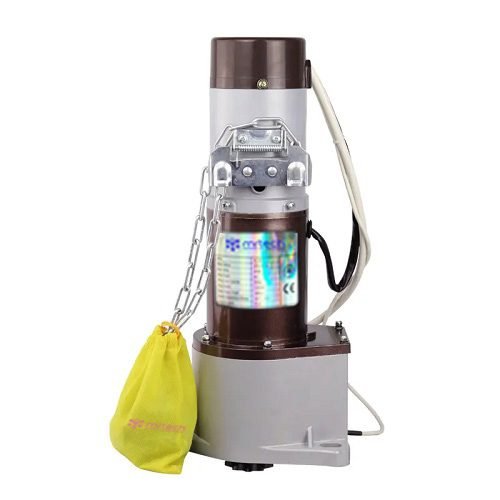

1000kg DC Compressor Limit Rolling Shutter Motor
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
Electric motors for rollup doors are widely used for opening and closing the rolling shutter doors of industrial doors, supermarkets, commercial, storehouses, cinemas, hotels, and so on they can be operated by electricity and manual. Our Company manufactures MRTECH DC Side Rolling shutter motors that are available with us — 300KG, 500KG, 800KG, and 1000KG.
Specification:
| Brand | MRTECH |
| Model No | MR RSMDC1000 |
| Product Name | 1000kg DC Compressor Limit Rolling Shutter Motor |
| Motor Type | Side Rolling Shutter Motor |
| Certified | German |
| Material | Aluminum Alloy |
| Input Voltage | DC24 V |
| Rated Current | 18A |
| Rated Power | 430W |
| Output Speed | 2.2 r/min |
| Output Torque | 809 N.m |
| Lifting Capacity | 1000 kg |
| Rolling Tube Diameter | 6″ |
| Max.Elevating Distance | 9m |
| Short-time Rating | <15min |
| Remote Control Distance | >30m |
| Chain type | 10A |
| Ambient Temperature Range | -20ºC ∼ +50ºC |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |

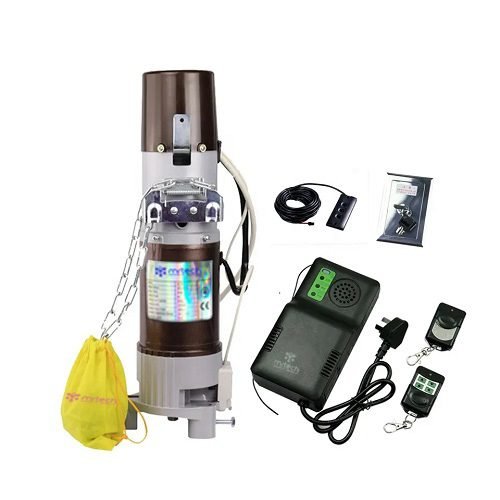

| Package Included | Motor, Backup Battery, Radio frequency receiver, Remotes |
| Application | Industries, Petrochemical plants, Textile Factory, Warehouses etc |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
Benefits of 1000kg DC Compressor Limit Rolling Shutter Motor:
- Low Noise
- Precise/accurate Limit Switch.
- Low Maintenance.
- Overheat protection and overload protection.
- Works on Battery when power Failure
