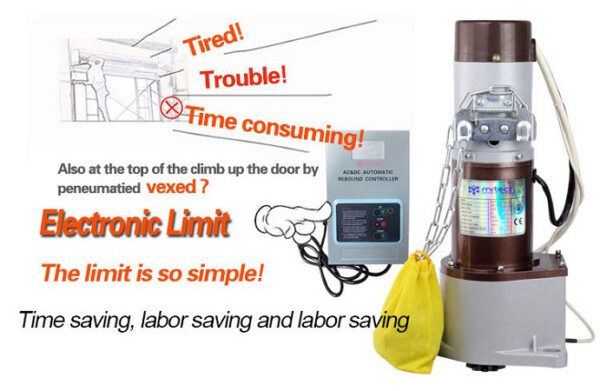

1000KG 24 Volt DC Motor Roller Shutter Operator
Our Heavy-Duty motors for rollup doors are widely used for opening and closing the rolling shutter doors of industrial doors, supermarkets, commercial, storehouses, cinemas, hotels, and so on they can be operated by electricity and manual. Our Company manufactures MRTECH DC Side Rolling shutter Electric Limit motors that are available with us — 300KG, 500KG, 800KG, and 1000KG.
|Model No||MR RSEDC1000|
|Product Name||1000KG 24 Volt DC Motor Roller Shutter Operator|
|Motor Type||Side Rolling Shutter Motor|
|Input Voltage||DC 24V|
|Rated Current||18 A|
|Rated Power||430 W|
|Output Speed||2.2 r/min|
|Output Torque||809 N.m|
|Lifting Capacity||1000 kg|
|Rolling Tube Diameter||6 “|
|Max. Elevating Distance||9 m|
|Short-time Rating||<15 Min|
|Remote Control Distance||>30m|
|Type of Chain||10A|
|Usage||Garage Shutter Door|
|Package Included||Motor, Battery, Radio frequency receiver, Remotes|

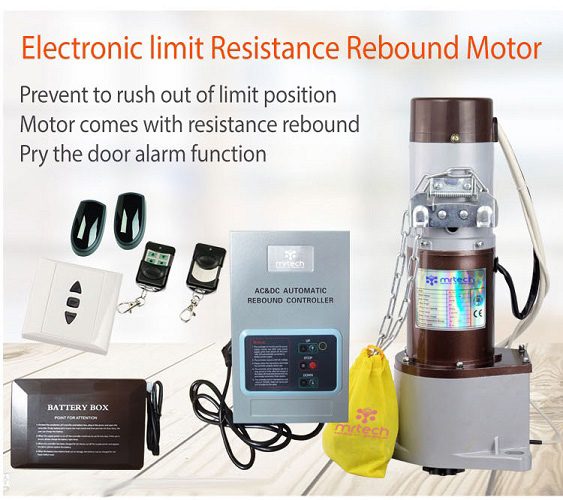

Prevent rushing out of limit position: It will not because of the fault limit switch and other factors caused by running out of the limit the slow downward speed to the greatest extent, revolutionary technology breaks the ordinary 1000KG 24 Volt DC Motor Roller Shutter Operator. AC DC motor downward too fast leading to voltage surge, break wear and tear, motor overheating, and so faults, new technologies very good control the speed of door body downward strengthen the protection of the motor improves the motors service life

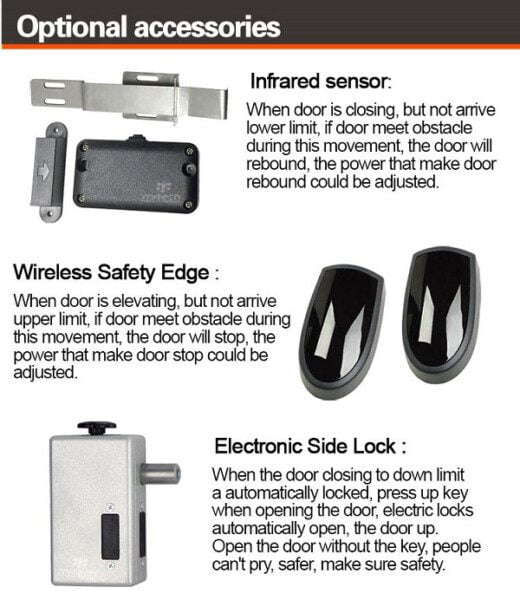

Optional Accessories for 1000KG 24 Volt DC Motor Roller Shutter Operator:
- Infrared Sensor: When the door is closing, but does not arrive lower limit. if the door meets an obstacle during this movement the door will rebound and the power that makes the door rebound could be adjusted.
- Wireless Safety Edge: When the door is elevated, but does not arrive upper limit, if the door meets an obstacle during this movement the door will stop the power that makes a door stop could be adjusted.
- Electronic Side Lock: When the door closes to the down limit automatically locks, press the up key when opening the door, and electric locks automatically open the door up. Open the door without the key, people can’t pry, safer, make sure safety
- Heavy-Duty Industries.
- Chocolate Factory.
- Food Factory.
- Chemical Processing Plant.
