Remote Sliding Gate Motors MR-SLGM600
The Remote Sliding Gate Motors is designed to operate sliding gates up to 600 kg in weight. Automatic sliding gate motor can be controlled by remote, and optional RFID , LOOP Detector.
Remote Sliding Gate Motors MR-SLGM600

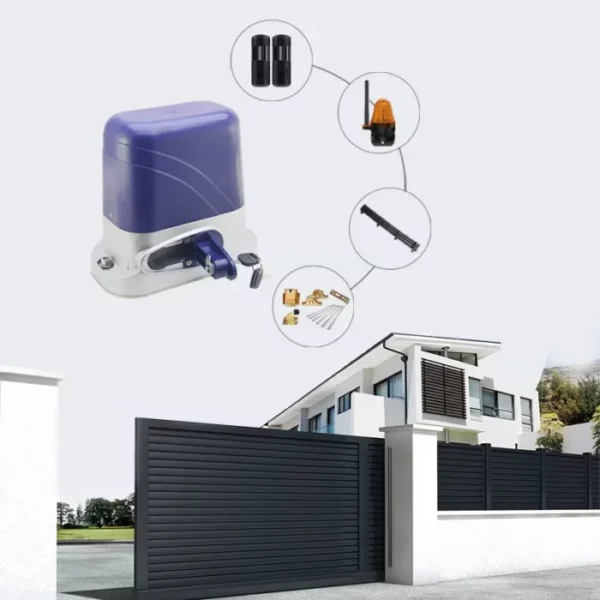

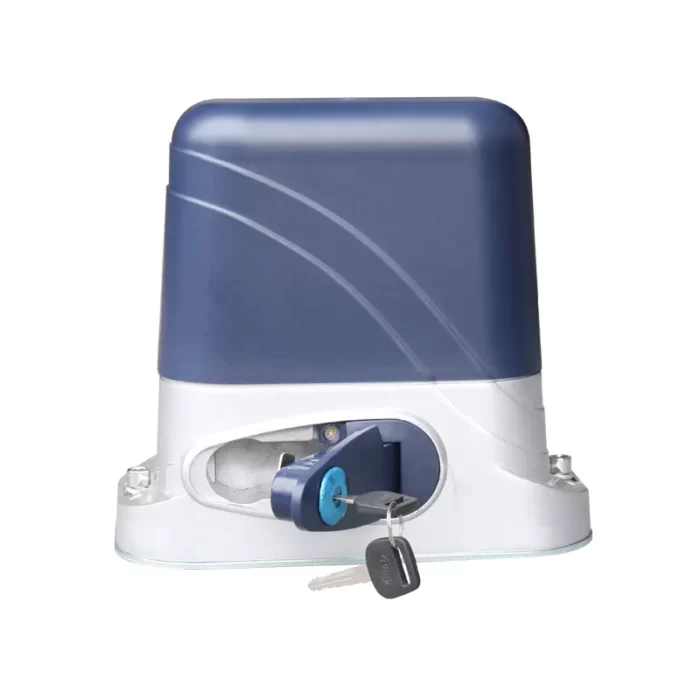

The DC-powered Remote Sliding Gate Motors is designed to operate sliding gates up to 600 kg in weight. It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat.
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
| ITEM | DESCRIPTION |
| Brand Name | MRTECH |
| Model Number | MR-SLGM600 |
| Type | Automatic Gate Operator |
| Name | Sliding Gate Motor |
| Material | Aluminum & Plastic |
| Power Supply | 220v AC / 110v AC |
| Rated Motor power | 240W |
| Max. Loading | 600 KG |
| Output Speed | 50 r/min |
| Open/close Speed | 16 m/min |
| Limit Switch Type | Magnetic / Spring |
| Output Torque | 20N.m |
| Max. pull force | 1200N |
| MOQ | 3 Set |
| Application | Residential, Apartments, Commercials, Industrials, etc. |

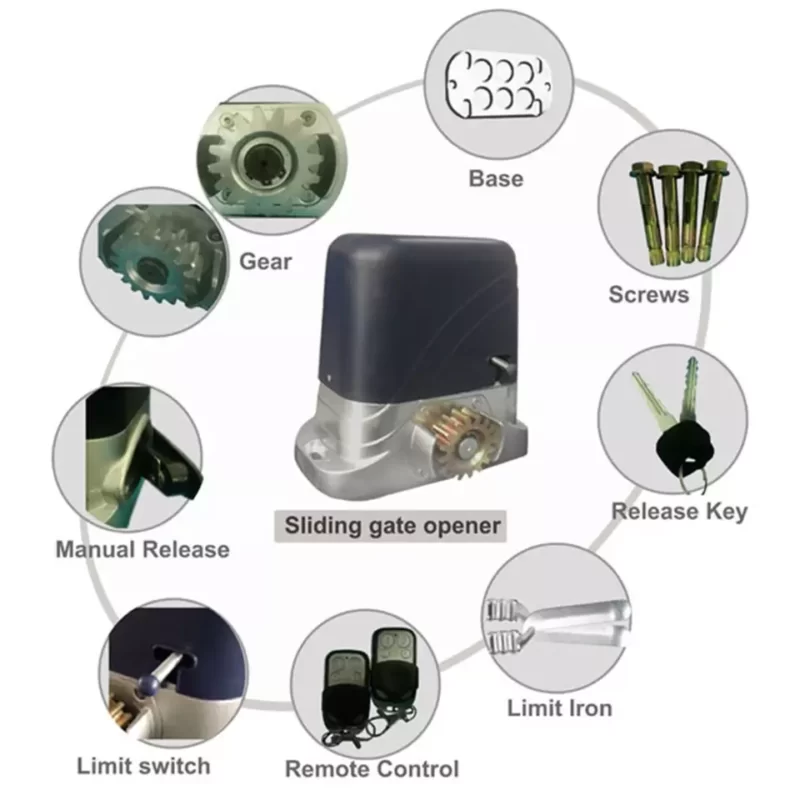

| Accessories Included With Motor | Control Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion, and Fitting Accessories. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Benefits of Remote Sliding Gate Motors:
- Totally integrated electrical mechanical system (excludes racks).
- Control board interface for optional impact-proof infrared photocells.
- Can connect flashing lights and keypads and electric locks and so on.
- Automatic delayed closing.
- Adjustable resistance sensitivity.
- The auto gate stops and re-opens when an obstacle is encountered.
- Wireless remote control or wired remote control is optional.
- 24VDC sliding gate opener can connect the transformer and backup battery.
Inner picture
Control board
| Model | MR-SLGM600 |
| Voltage | 220v/110v |
| Modulation | ASK |
| Frequency | 433.92 Mhz |
| Board Memory | 50 pcs remote control |
| Output Voltage | AC 24V |
Function of Remote Sliding Gate Motors:
- Single button control circularly /three buttons control can be chosen
- Alarm lamp interface
- Automatic closing time adjustable
- Pedestrian mode
- Condominium mode
- Limit switch NC/NO optional
- Photocell NC/NO optional
- Switch the power on/off button on the board
- Open and close motor sensitivity setting separately
- Terminal for open only, close only for the external control device.
- Adjustable resistance sensitivity
- The gate will auto-stop and re-open when an obstacle is encountered
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
| ITEM | DESCRIPTION |
| Brand Name | MRTECH |
| Model Number | MR-SLGM600 |
| Type | Automatic Gate Operator |
| Name | Sliding Gate Motor |
| Material | Aluminum & Plastic |
| Power Supply | 220v AC / 110v AC |
| Rated Motor power | 240W |
| Max. Loading | 600 KG |
| Output Speed | 50 r/min |
| Open/close Speed | 16 m/min |
| Limit Switch Type | Magnetic / Spring |
| Output Torque | 20N.m |
| Max. pull force | 1200N |
| MOQ | 3 Set |
| Application | Residentials, Apartments, Commercials, Industrials, etc. |
| Accessories Included With Motor | Control Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion , Fitting Accessories. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Based on 0 reviews
Be the first to review “Remote Sliding Gate Motors MR-SLGM600”
Related products
- Electric Sliding Gate Motor, Gate Controller, Pinion Gate, Slide Gate Operator
Automatic Sliding Gate Opener MR-SLGM1200
Electric Sliding Gate Motor, Gate Controller, Pinion Gate, Slide Gate OperatorAutomatic Sliding Gate Opener MR-SLGM1200
Automatic Sliding Gate Opener MR-SLGM1200 are widely used motor type which was proposed for industrial, Residentials, Commercial, etc. The modern device are used to control the gate from anywhere.
SKU: n/a - Electric Sliding Gate Motor, Iron Gate, Mild Steel Gate, Safety Gates, Sliding Gates, Vertical Lift Gate, Wooden Gate
Sectional Sliding Gate 044
Electric Sliding Gate Motor, Iron Gate, Mild Steel Gate, Safety Gates, Sliding Gates, Vertical Lift Gate, Wooden GateSectional Sliding Gate 044
Sectional Gate operation are similar to sliding gate but the tracks varies. sectional Sliding gate tracks are curved in some radius for space saving.
SKU: n/a - Automatic Gate, Automatic Sliding Gate, Cantilever Sliding Gates, Electric Sliding Gate Motor, Folding Gates, Industrial Gates, Motorised Gate, Remote Gates, Sliding Gates, Stainless Steel Gate, Stainless Steel Sliding Gate, Telescopic Gate

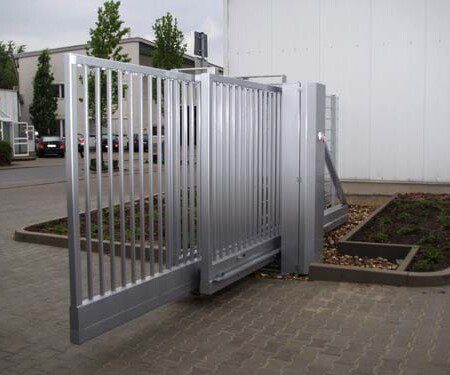

Stainless Steel Sliding Gate
