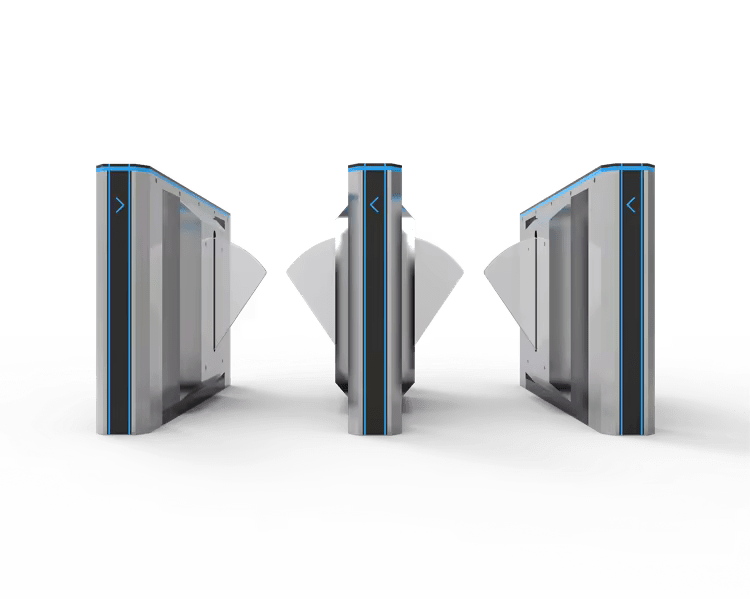

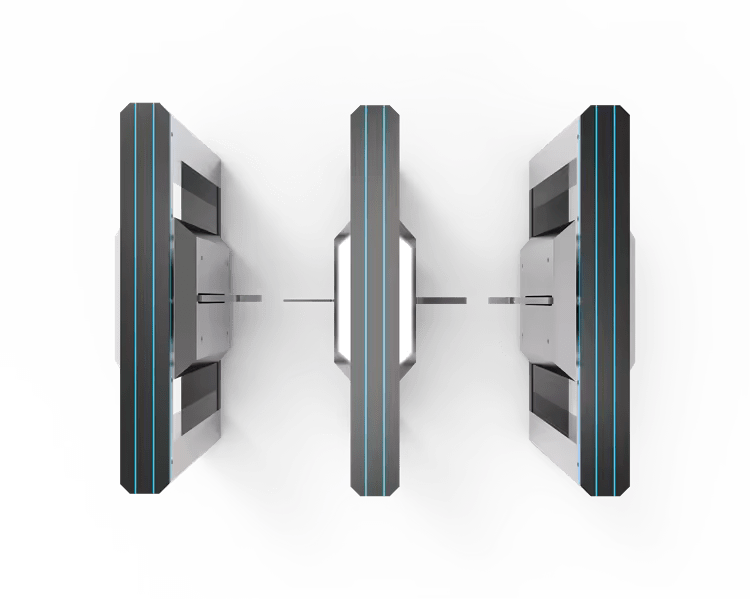

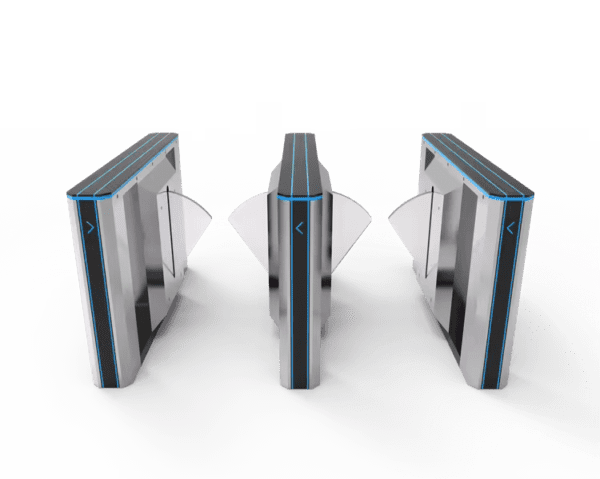

Smart Entrance RFID Card Solutions Pedestrian Turnstile Flap Barrier
The sliding barrier turnstile is different from the tripod turnstile gate, swing turnstile gate, and a flap barrier gate. It is a kind of pedestrian turnstile gate equipment that is not commonly used and needs to be strictly prevented from entering and leaving.
Because the blocking barrier on both sides is translation type and adopts automatic control, it will not easily clip people. The design of a high-blocking barrier prevents the possibility of unauthorized crossing and climbing, so high security is its most important sign.
The blocking Smart Entrance RFID Card Solutions Pedestrian Turnstile Flap Barrier is thin and can be made into the form of two doors, which is more reinforced for security and safe and flexible. It is mostly used in scenes where security efficiently needs to be improved, such as high-end office buildings, group enterprises, halls or elevator halls of business buildings, staircases, etc. We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings; as well as installation drawings.
Product Technical Parameters
| Model Number | MR Y288 |
| size | 1400*300*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |

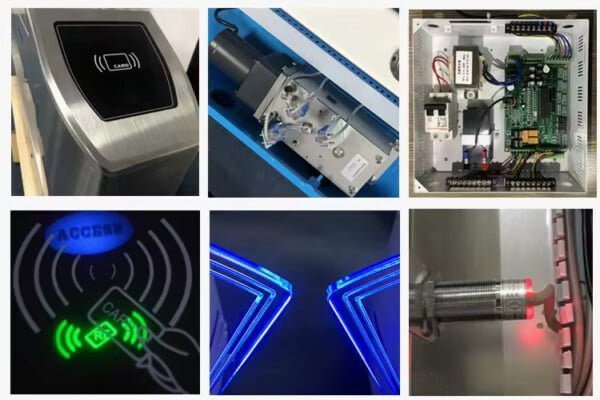

| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Advantages |
|
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
