Automatic Open Walk On Glass Skylight
a structural glass unit installed flush within a terrace, patio, balcony, or internal floor, designed to support foot traffic while delivering natural daylight below. These units feature thick, multi-layered laminated glass and reinforced frames engineered to carry high loads
| Product Name | Electric Motorized Automatic Open Walk On Skylight |
| Open Style | Automatic |
| Window Shape | Rectangle |
| Material | Aluminum Alloy |
| Design Style | Modern |
| Frame Material | Aluminum Alloy |
| Material | Aluminum Alloy+Glass+Accessories |
| Surface treatment | Powder Coated |
| Size | Customized Size |
| Color | Customized Colors |
| Glass | Double / Triple / Tempered / Toughened & Laminated / Low E Glass |
| Advantage | Daylighting / Ventilation / Soundproof / Impact Resistance |
| Application | Villa / Residential / Commercial / Industry |
Instant wow factor

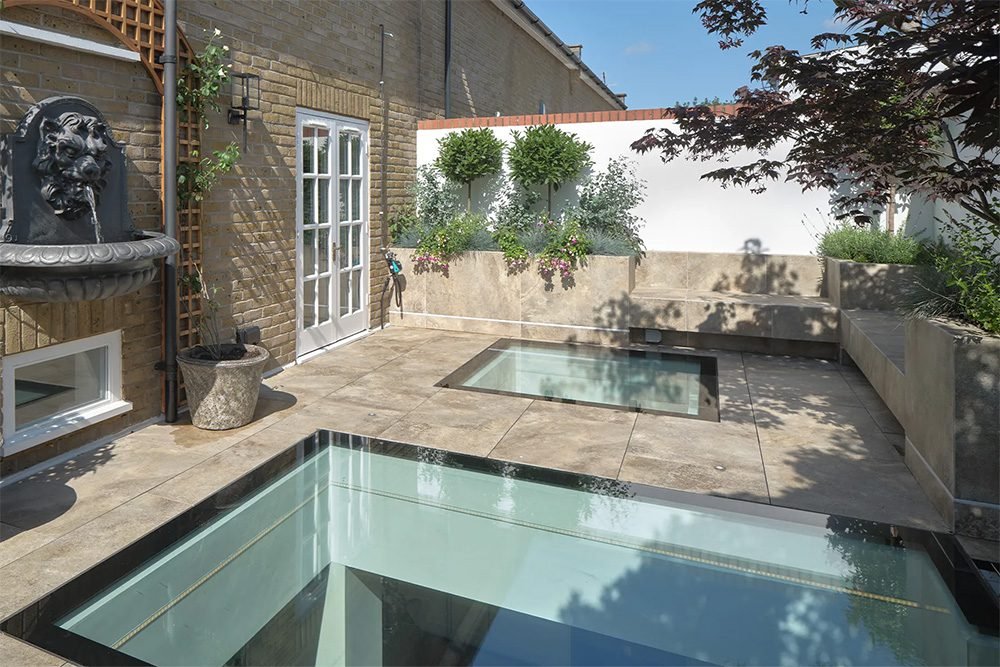

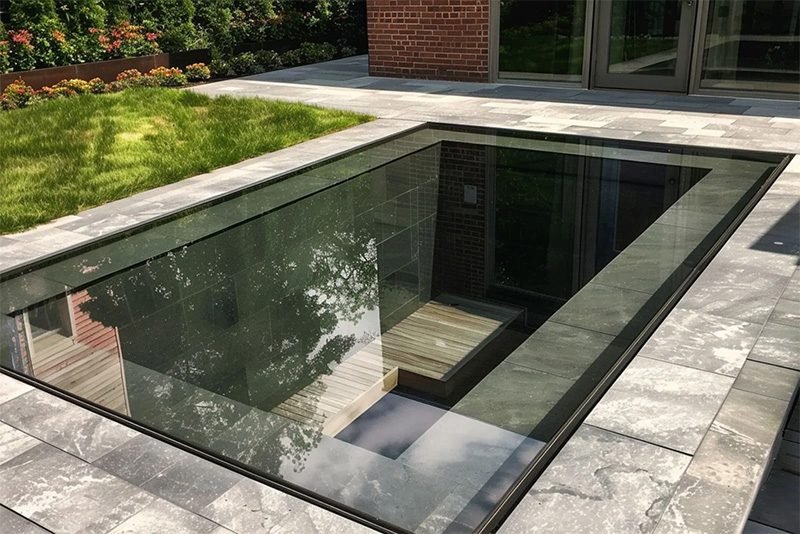

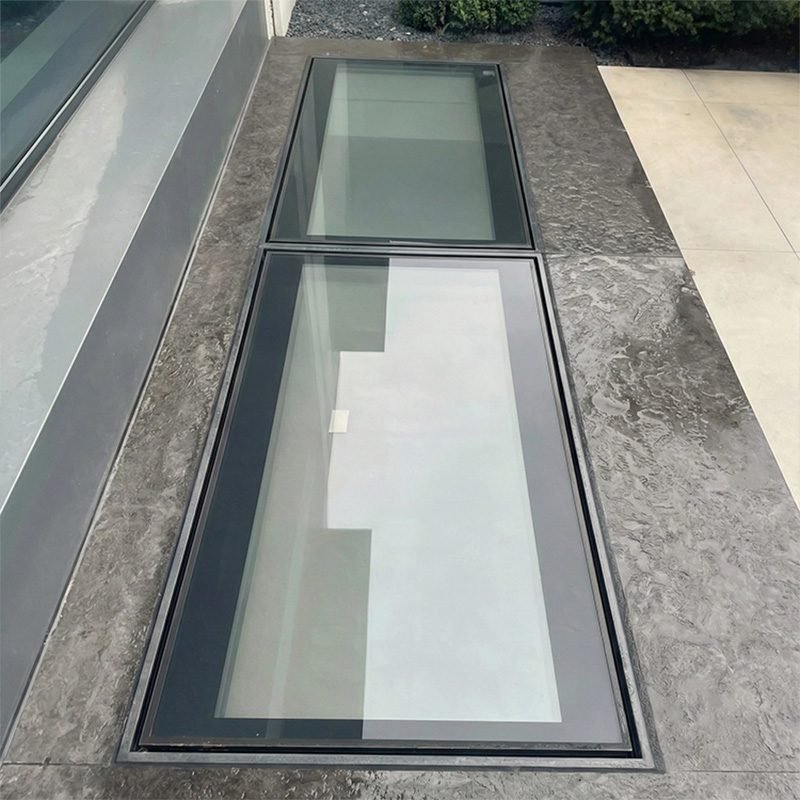

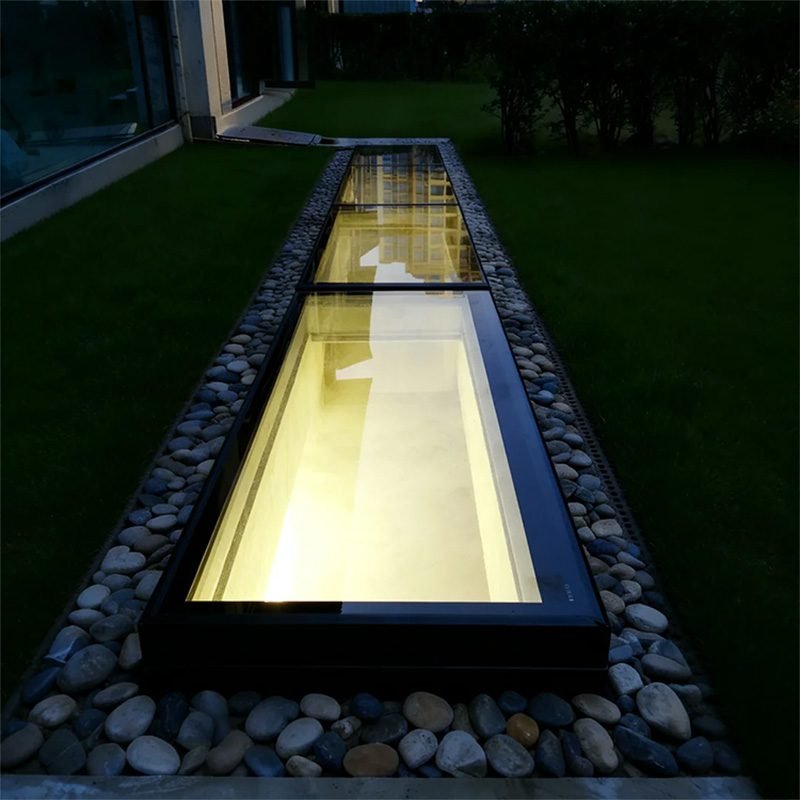

Walk on roof lights, Walkway Glass Floor using Flushglaze technology, designed to be installed flush with external flooring – perfect for flat roof terraces, these units are commonly installed using decking to achieve the final ‘flush finish’ with the rooflight, as an upstand is still required. Mr. Tech also offers alternative details to allow solid finishes, such as paving, to be used.
| Skylight Type | Electric Opening Walk On Glass Skylight |

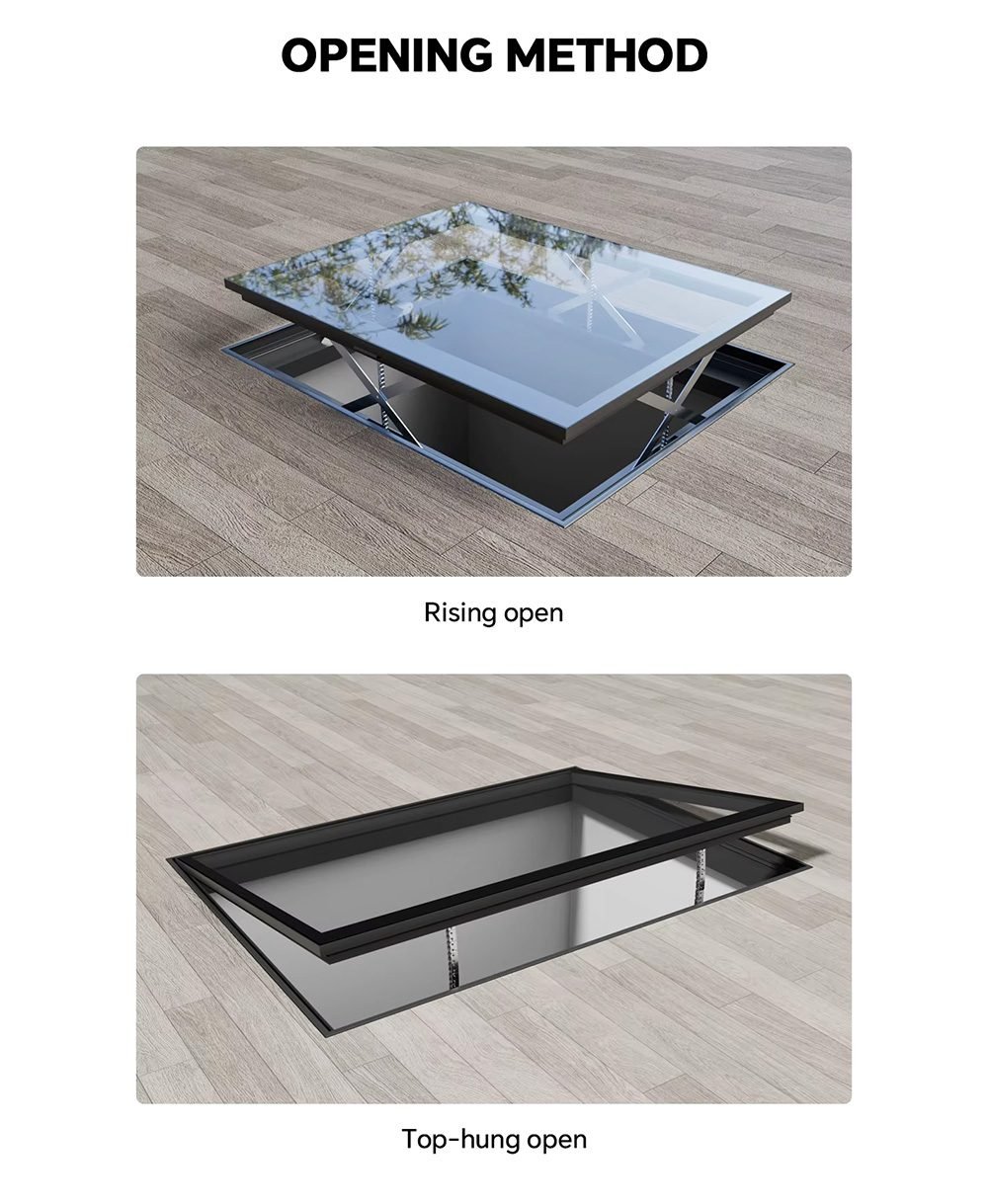

| Opening method | Electric Top Hung Outward Opening / Electric Rising Opening |
| Process craft | Welding and glue filling corner code splicing |
| Design limitations | Maximum area of single leaf: ≤3㎡ (top hung) / ≤5㎡ (rising) Single leaf width(W): ≥700mm Single leaf height(H): ≤2500mm (top hung) / ≤3000mm (rising) |
| Standard Configuration | Material:6063-T5 Aluminum profile Thickness:2.0mm Overlapping surface:42mm Fan frame height:163mm Overlapping area:76mm |
| Glass configuration(Selective) | 8G+1.14pvb+8G 8G(anti-slip)+1.14pvb+8G Glass option Anti-slip treatments, Clear glass, obscured glass and tinted glazing |
| Standard profile | Watte silent safety motor Watte patend control system Mute waterproof switch 304 stainless steel solid bearing pulley Solid steel reinforced corner code |
| Highlights at a glance | Ultimate Safety & Load-Bearing High-Performance Anti-Slip Technology Flush-Mount Seamless Design Advanced Waterproof & Drainage System Superior Thermal & Acoustic Insulation |
Walkway Safe and watertight
These units provide a talking point, visual delight, and instant wow factor. Our engineers calculate the strength of glazing required to take regular foot traffic for complete safety and watertight integrity, and of course, to meet the necessary building codes for residential, commercial, or public buildings.
Minimalistic design
Our solo Flushglaze Electric Motorized walk on skylights also meet that all-important design criterion: no visible internal framework. To build them any other way would spoil the visual effect. But as with our non walk on glass, you can still ‘go big’ and design entire ribbons of glass with our modular system using structural aluminium supports.



walk on skylight Inspiration
Innovative design is often the result of inspiring architecture. Being able to see how installing glass roof lights can dramatically affect the dynamics of a space is what keeps us inspired. Our rooflights feature some amazing technology and elegant design ideas, but ultimately, we all know what really matters is how these products improve your space
