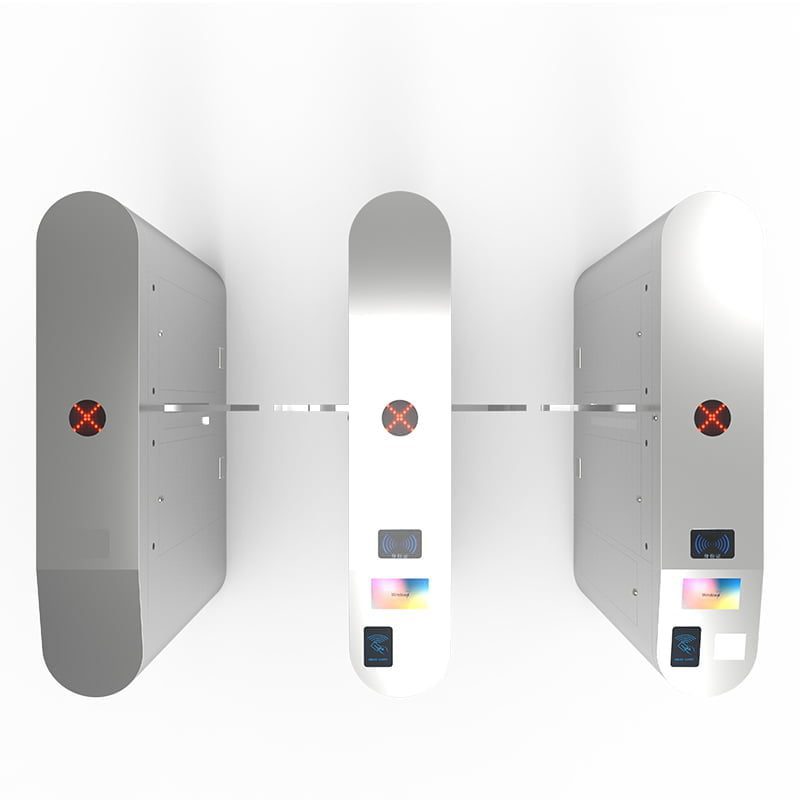

Entrance Access Control Multi-function Ticketing System Flap Barrier
Flap barriers are also available in a variety of styles, from basic models to more advanced ones that include features such as automatic closing and locking. Additionally, many Entrance Access Control Multi-function Ticketing System flap barriers can be customized to match the aesthetic of the building in which they are installed.
Entrance Flap Barrier Feature and function;
- Fault detection, user-friendly maintenance and use
- Small button int the main control panel, can be set state of equipment.
- Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
- Scour protection function, when the gate signal is not received, the stick is automatically locked
- The door synchronization are adjustable(for doubleoff gates situation)
- With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permission of the user.
- Normally open or closed can be freely adjusted to meet different venue requirements
- Mount can be used with a variety of reading devices, work when it receive relay switch signal
- Single, bi-directional swing function, one-way or two-way control personnel access
- Directly through the remote management computer control and management
- Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
- Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the gate);etc.
- counting function(optional)
- Anti-pinch function(four pairs of infrared)
- The precise logical judgement, infrared reset function(4or6 pairs of infrared)
- The voice output, humane tips for correct password(optional)).
Product Technical Parameters
Model Number | MR Y355 |
size | 1400*300*1000mm |
Material | SS304 grade stainless steel |
Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
Arm material | Acrylic/Glass 10mm thickness |
Channel width | ≤1000mm |
open gate signal input | Dry contact signals, 232 or 485 commands. |
Unlocking time | 0.2s |
Speed of passage | ≤35p/Min |
Voltage input | 220V, 50H; (support adjustable) |
environmental temperature | -25°C~+70°C |
working environment | Indoor/outdoor (under shade) |
MCBF | ≥5 million |
weight | single core movement: 50KG / double core movement: 70KG |
configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
Advantages |
|
Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
Secondary development |
|
Multi-function Flap Barrier Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

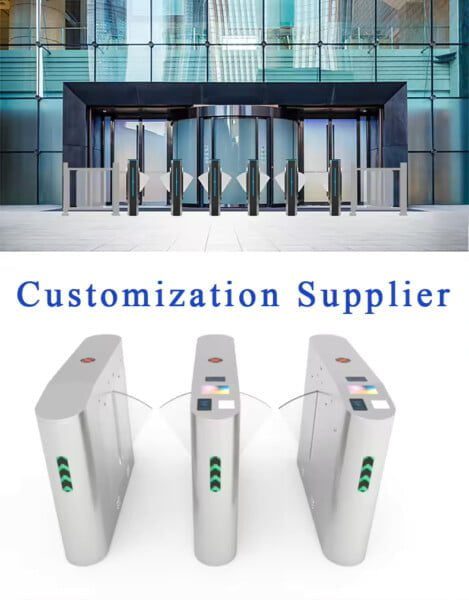

Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
