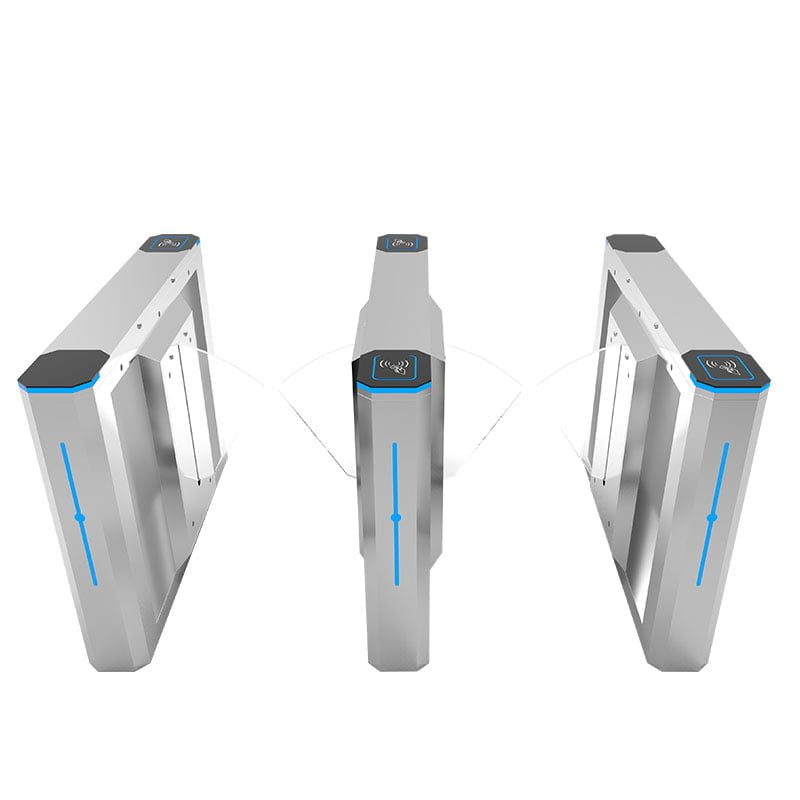

Entrance Fast Smart Gate Turnstile Outdoor Pedestrian Flap Barrier
We can provide OEM and ODM services. we also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanner’s, face recognition cameras, and so on. If you need to integrate these devices on the turnstile gate or have any questions, please contact us The first video is an ordinary sliding turnstile, which is ultra-silent and look’s beautiful.
The following video is a customized sliding turnstile. No matter the size or appearance of the sliding turnstile, it is customized according to the actual needs of customers. If you need to customize a similar sliding turnstile, you can also contact us SLIDING GATE TURNSTILE features an elegant design, high speed, high security, small noise operation, smooth running, and a long life span.
It’s highly integrated to be compatible with face recognition temperature scanners, fingerprint access control, QR systems, ESD access control RFID, etc. Being the Entrance Fast Smart Gate Turnstile Outdoor Pedestrian Flap Barrier speed flap barrier, the swing baffle opens automatically when power is off, free for passing for fire/emergency exit requirements.
Product Technical Parameters
| Model Number | MR Y285 |
| size | 1400*300*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |

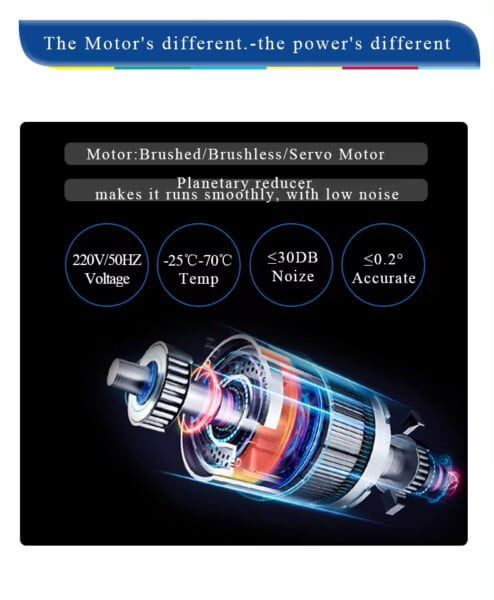

| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Advantages |
|
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|

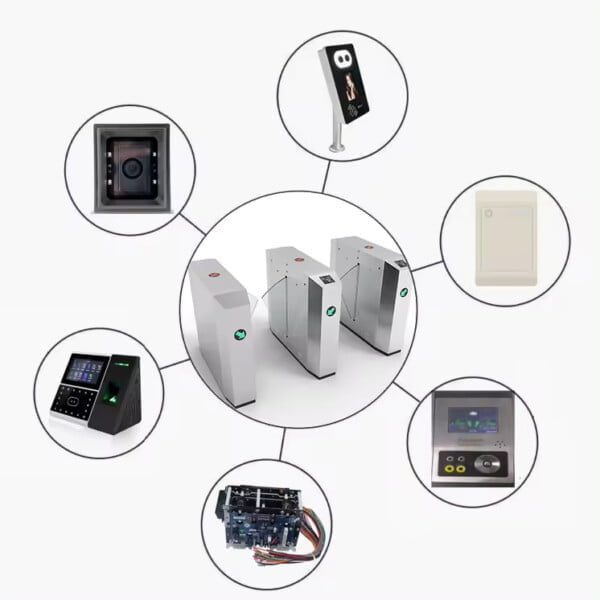

Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
