    Automatic Flap Barrier Gate Turnstile Access Control Security System

    Turnstile Access Control Flap barriers are a type of turnstile that are commonly used to control access to a building or area. They are designed to allow one person to pas through at a time, and are often used in conjunction with other security measures such as security cameras or card readers.

    Automatic Flap Barrier Gate Turnstile Access Control Security System

    Automatic Flap Barrier Gate Turnstile Access Control Security System

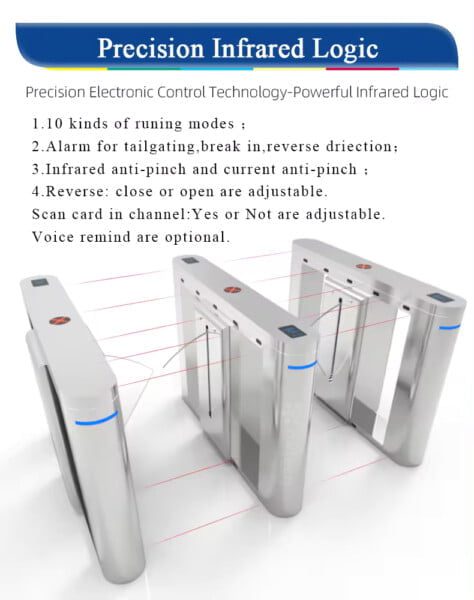

    Turnstile Access Control Product features:

    1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.
    2. The running status of the device can be programmed through the built-in small button on the main control board;
    3. Mechanical structure, induction dual anti-pinch function, when the telescopic arm encounters resistance during the reset process. it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until the reset, and the force is very small(<2kg);
    4. sound and light alarm function: including illegal intrusion and trailing alarm;
    5. Anti-shock function, the telescopic arm will be automatically  locked when it does not receive the opening signal;
    6. The telescopic arm synchronization function;
    7. with automatic reset function. the system will automatically cancel the user’s permission for this pass after the gate is opened and the system does not pass within the specified time. The standard is automatic reset 5 seconds after opening;
    8. The channel is automatically opened after power off. and automatically closed after power on?
    9. It can be connected to a variety of card readers, and can receive relay switch signals to work;
    10. one-way or two-way control of personnel entry and exit:
    11. It can realize remote control and management directly through the management directly through the management computer;
    12. Extensible function: counting function: lengthened case. material selection of telescopic arm.

    Automatic Flap Barrier Gate Turnstile Access Control Security System

    Product Technical Parameters

    Model NumberMR Y136
    size1400*300*1000mm
    MaterialSS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage input220V, 50H; (support adjustable)
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle core movement: 50KG / double core movement: 70KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
    Driving MotorDC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Advantages
    1. The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance
    2. Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.
    Special Functions1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc.
    Secondary development
    1. tripod turnstile gates, 2w swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;
    2. Can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate secondary development agreement(can provide RS485 protocol, windows API, limux API

    Automatic Flap Barrier Gate Turnstile Access Control Security System

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.
