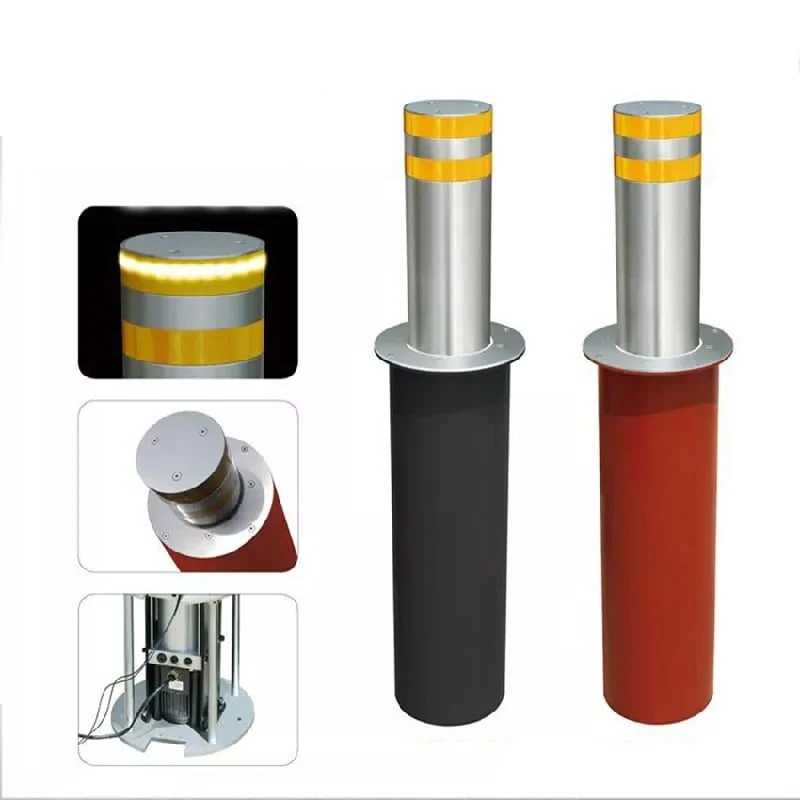

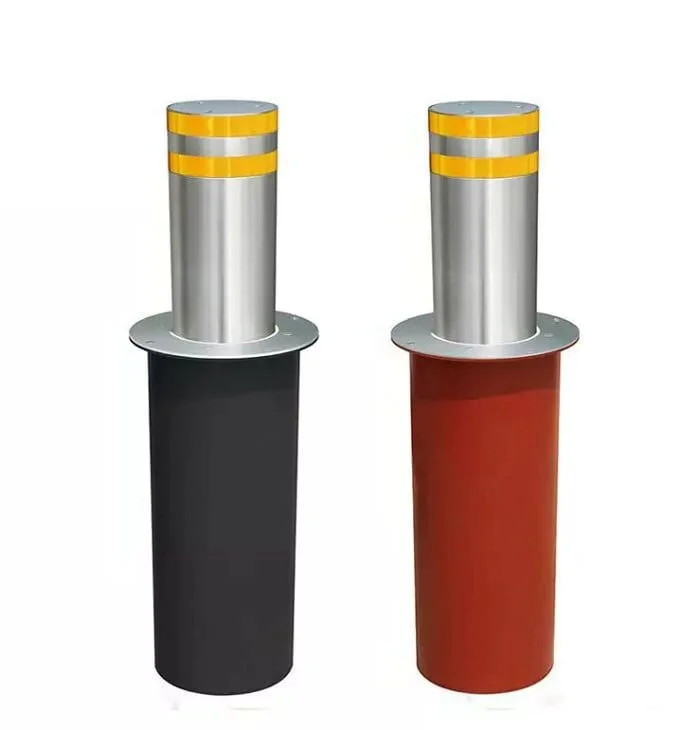

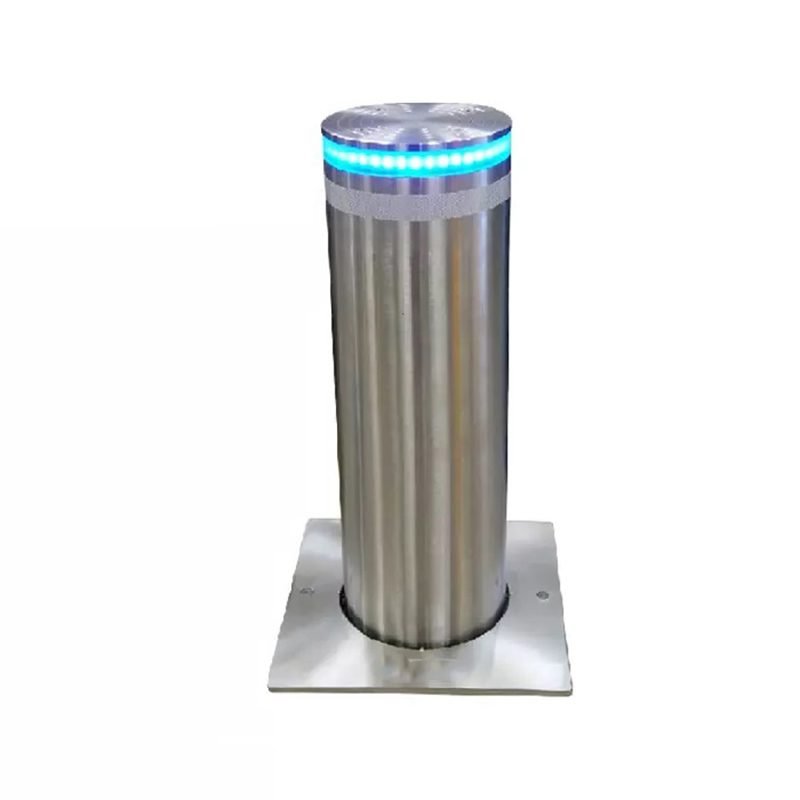

Automatic Stainless Steel Hydraulic Bollards MR-AB700


Anti Terrorism series of Hydraulic Bollards with robust steel structure and innovative features makes it more suitable for quick movement with intensive use.

Automatic Stainless Steel Hydraulic Bollards MR-AB700

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Our Hydraulic Bollard Road Blockers can be used to control vehicles in either one-way or two-way configurations and are specifically designed to interface with our extensive range of access control security systems, remote manned operation, or open/close vehicle loop detectors. The ‘red’ traffic light is illuminated while the automatic Bollard is in its active position. The green light is only being illuminated once the Hydraulic Bollard is fully retracted. As the vehicle passes on to the safety/closing induction loop, the light will change to red signaling the next vehicle to stop. The Automatic Hydraulic Bollards can be
lowered manually in the event of a power failure

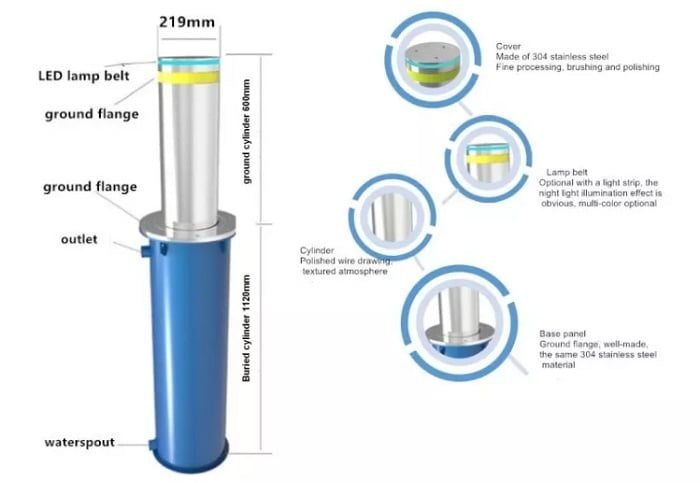

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

Specification:

Brand MRTECH
Model NoMR-AB700
Product NameAutomatic Stainless Steel Hydraulic Bollards
Material304 Stainless Steel
Power Supply220v/380v
Lamp BeltLED lamp (Acrylic light circle)
Thickness6∼10mm Customized Thickness
Height1105mm, Customized Height
Rising Height700mm
Diameter275/220mm
Raising /Lowering Speed3∼6s (adjustable)
Working Temperature-30ºC∼+75ºC
System ControlHydraulic and Electric Control
Remote Control Range<45m
Weight130KG
Protection ClassIP68
MOQ3set
Applicationuniversities, pedestrian sidewalks, parking lots, Shopping Centers, etc.
Optional Accessories for Hydraulic BollardsPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

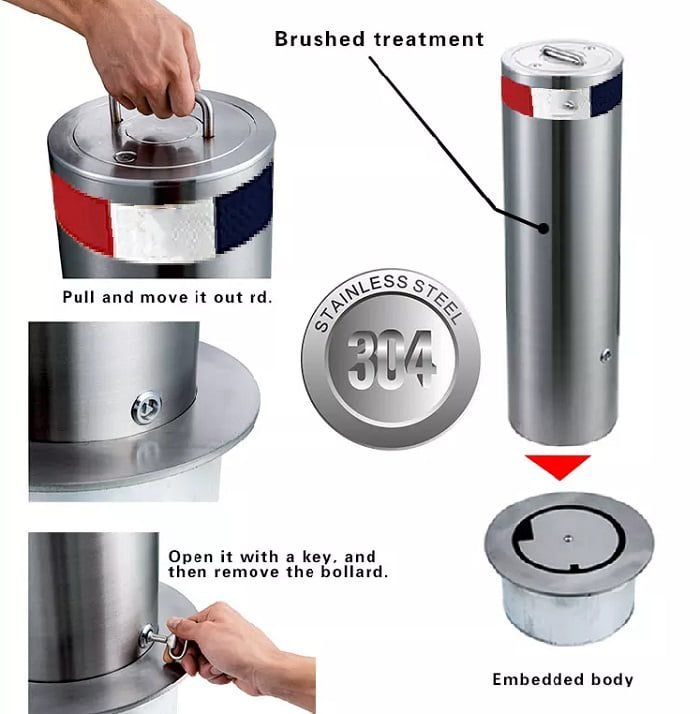

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

Features Of Automatic Bollards:

  • Anti-collision: It can be used normally after being hit by a 12-ton vehicle.
  •  Anti-destructive power: After being hit by a 16-ton vehicle, Hydraulic road bollards deformations
  • Internal structure: With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
  • Can be manually lowered in the event of a power outage.
  • Linkage interface.
  • Reversible operation according to requirements during ascent and descent.
  • Noise during operation of the device ≤60 db.
  • Waterproof integrated hydraulic drive.
  • Control solenoid valve 24V.
  • Control box display text adjustable (up, down, start, time control adjustment).
  • Display text in English.
  • Water immersion performance: no leakage during 48 hours and normal lifting.
  • Anti-corrosion performance level: 9.Technical Parameters

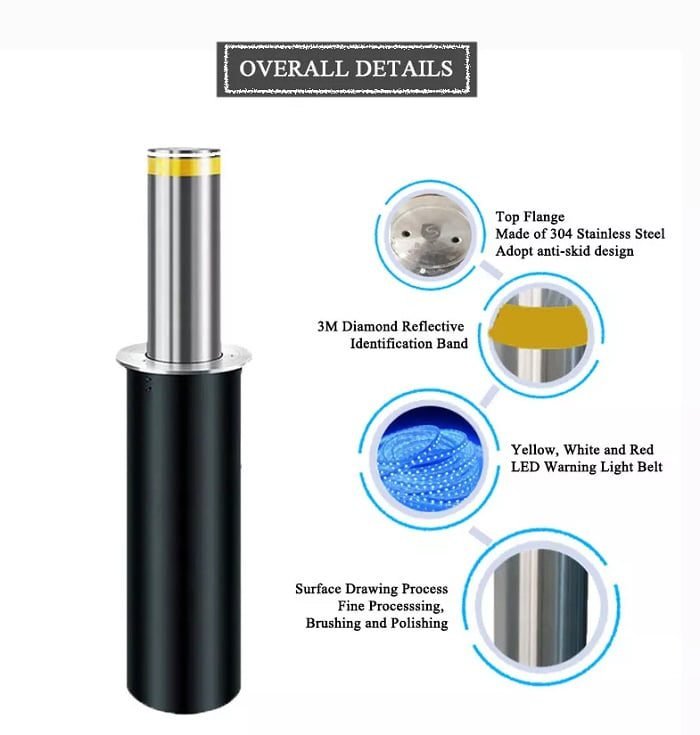

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

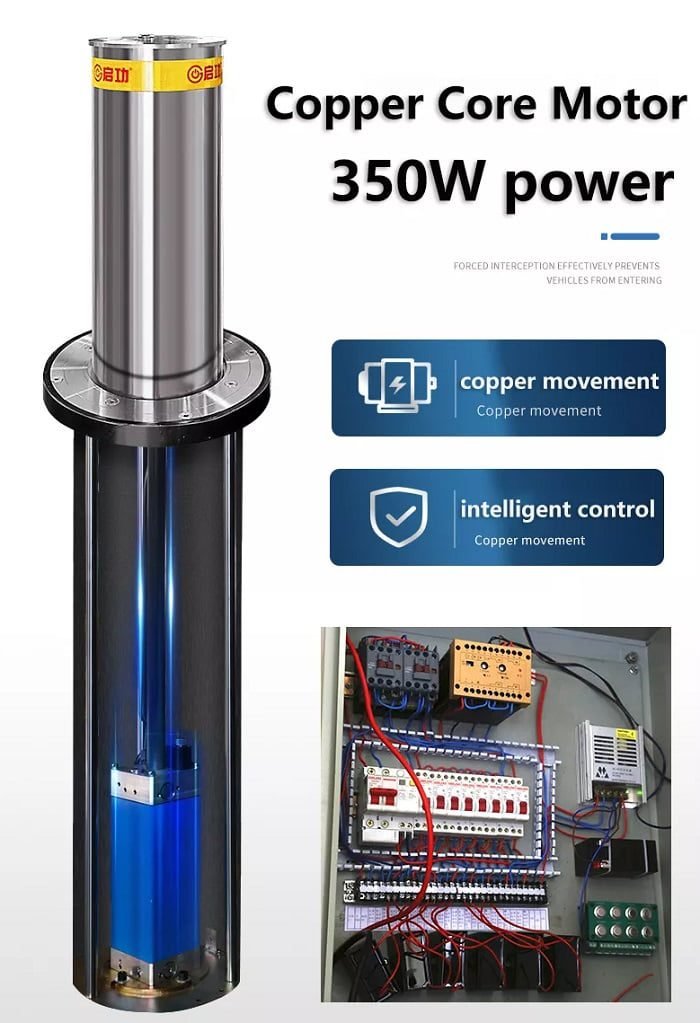

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

Automatic Stainless Steel Hydraulic Bollards MR-AB700 Technical Specifications

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
Brand MRTECH
Model NoMR-AB700
Product NameAutomatic Stainless Steel Hydraulic Bollards
Material304 Stainless Steel
Power Supply220v/380v
Lamp BeltLED lamp (Acrylic light circle)
Thickness6∼10mm Customized Thickness
Height1105mm, Customized Height
Rising Height700mm
Diameter275/220mm
Raising /Lowering Speed3∼6s (adjustable)
Working Temperature-30ºC∼+75ºC
System ControlHydraulic and Electric Control
Remote Control Range<45m
Weight130KG
Protection ClassIP68
MOQ3set
Applicationuniversities, pedestrian sidewalks, parking lots, Shopping Centers, etc.
Optional Accessories for Hydraulic BollardsPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
