Floor Spring Door Closer in-Ground Swing Door Motor MR-SDM180
| Notice | If you want to place an order, please get in touch with the seller, and we will calculate the cheapest freight for you! |
A floor spring ground swing door motor is a type of motor that is used to automate the opening and closing of a swing door. It is mounted on the floor and attached to the door at the base, near the hinges. The motor works by applying force to the door through the use of a spring mechanism, which allows the door to be opened and closed with minimal effort. The motor can be controlled by a variety of methods, such as a push button, a remote control or a sensor.
What is Floor Concealed Door Closers?
The overhead or floor-mounted concealed door closer is a very common type of door closer mechanism that is normally unseen and unnoticed. Some concealed closers only allow single directional control for opening and closing to a fixed point or door stop.
Specification of Floor Spring Ground Swing Door Motor:
| Parameter | Description |
| Model No | MR-SDM180s |
| Maximum Door Weight | 180KG |
| Maximum Door Width | 1200mm |
| Maximum Torque | 165Nm |
| Noise | <60dB |
| Opening and closing time | 6 – 12S |
| Open Range | 86º∼95º |
| Power Supply | AC220V±10% 50/60Hz |
| Rated Power | 55W |
| Special Machine power | <2W |
| Operating Temperature | -20ºC∼55ºC |
| Protection level | IP68 |

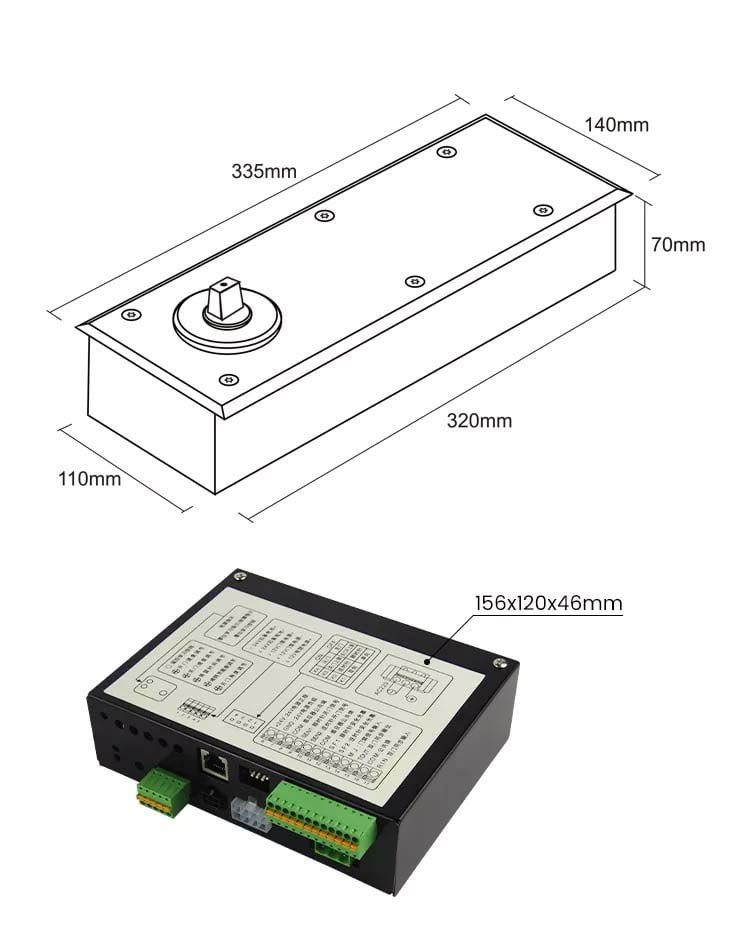

| Control box size | 156 x 120 x 46mm |
| Unit size | 320 x 110 x 70mm |
| Unit weight | 9.25kg |
Features:
Floor Spring Ground Swing Door Motor has several features, its strength and performance are worthy.
- High load capacity Door weights up to 180 kg
- Brushless Dc motor small Size, strong power
- Strong Waterproof performance IP68
- One Way, Two way 2 in 1
- Opening the Door 90/ 180 Degree

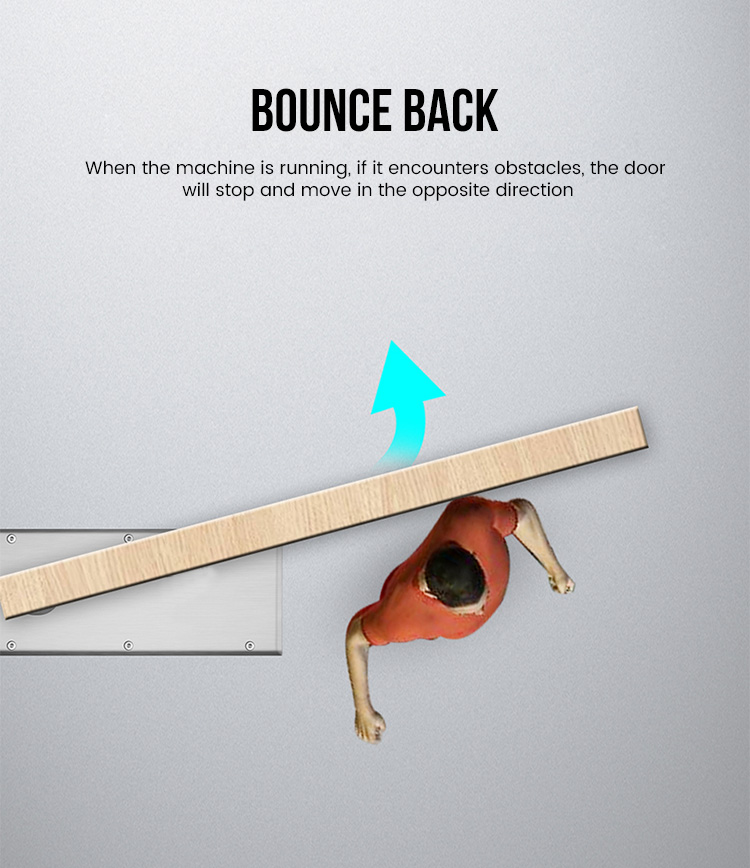

- Safety sensor
- Integrated molding box. Thickened stainless steel panel, Anti rust, anti-corrosion, not easy to be deformed.
