Automatic Swing Door Operator MR-SWDO300


Push and Pull Bar type swing door operator comes with different variants and its advanced sensing help customer to access easily.

Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300

Product Features of swing door operator:

  1. Adopting encoder brushless motor worm gear technology, ultra-quiet operation
  2. Multi-function interface, full-featured remote control technology with double-door interlocking, position feedback, and other functions
  3. Push-to-open function, safety protection function for closing the door in the reverse direction
  4. It can be used with manual remote control, sensors, buttons, access control, etc
  5. The opening force and closing check setting of the door can be adjusted to better adapt to the weight and position of the door
  6. Its ultra-quiet operation mode is especially suitable for noise-sensitive occasions (operating room doors, hospital access doors, The doors of senior consulting rooms, public offices, secret institutions, business hotels, senior apartments, leaders’ offices, and so on.
  7. Can be used as fire linkage control for a normally open or normally closed door, with a fire feedback signal

Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300

Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300

Specification of Automatic Swing Door Operator:

ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SWDO300
Type Automatic Door Operator
Name Swing Door Operator

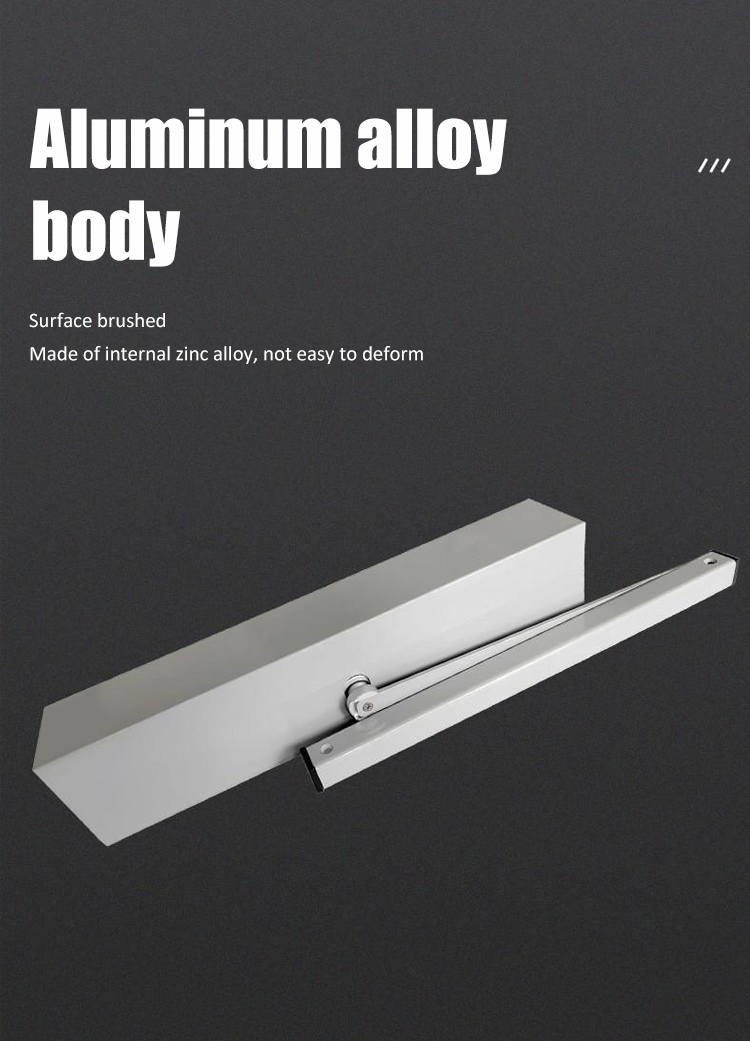

Material Aluminum & Plastic
Power Supply AC 110V-220V 50/60Hz
Input Power 65W
Door Width1500mm
Max Load Capacity300kg
Automatic Opening Angle90º-150º
Turn on – Hold time1∼30 seconds
Opening Speed3∼6 seconds / Adjustable
Closing Speed3∼6 seconds / Adjustable
Dimensions450 x 85 x 100mm
Electric LockAdjustable
Protection ClassIP 12D
Motor Weight 14 kg
MOQ 3 Set
Application Residentials, Commercials, Industrials, etc.
Accessories Included With OperatorPull Bar, Extension, Bottom Plate, Remote Control, Manual key, Mounting Kit.

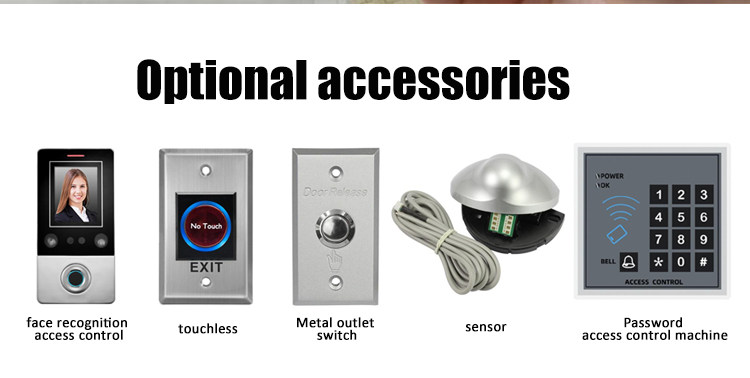

Optional AccessoriesPhoto Sensor, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

Optional Swing Door Accessories

Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300Heavy Duty Doors Automatic Swing Door Operator MR-SWDO300

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
ITEM  DESCRIPTION
Brand Name MRTECH
Model Number MR-SWDO300
Type Automatic Door Operator
Name Swing Door Operator
Material Aluminum & Plastic
Power Supply AC 110V-220V 50/60Hz
Input Power 65W
Door Width1500mm
Max Load Capacity300kg
Automatic Opening Angle90º-150º
Turn on – Hold time1∼30 seconds
Opening Speed3∼6 seconds / Adjustable
Closing Speed3∼6 seconds / Adjustable
Dimensions450 x 85 x 100mm
Electric LockAdjustable
Protection ClassIP 12D
Motor Weight 14 kg
MOQ 3 Set
Application Residentials, Commercials, Industrials, etc.
Accessories Included With OperatorPull Bar, Extension, Bottom Plate, Remote Control, Manual key, Mounting Kit.
Optional AccessoriesPhoto Sensor, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

Optional Swing Door Accessories
