    Smallest Dc Brushless Motor Swing Barrier Acrylic Speed Gate

    The swing barrier provides a reliable and effective method to ensure that only authorized users ae allowed to access every area of the building. It meets the fire emergency requirements, all channels are opened for power failure, and there is an independent fire alarm interface

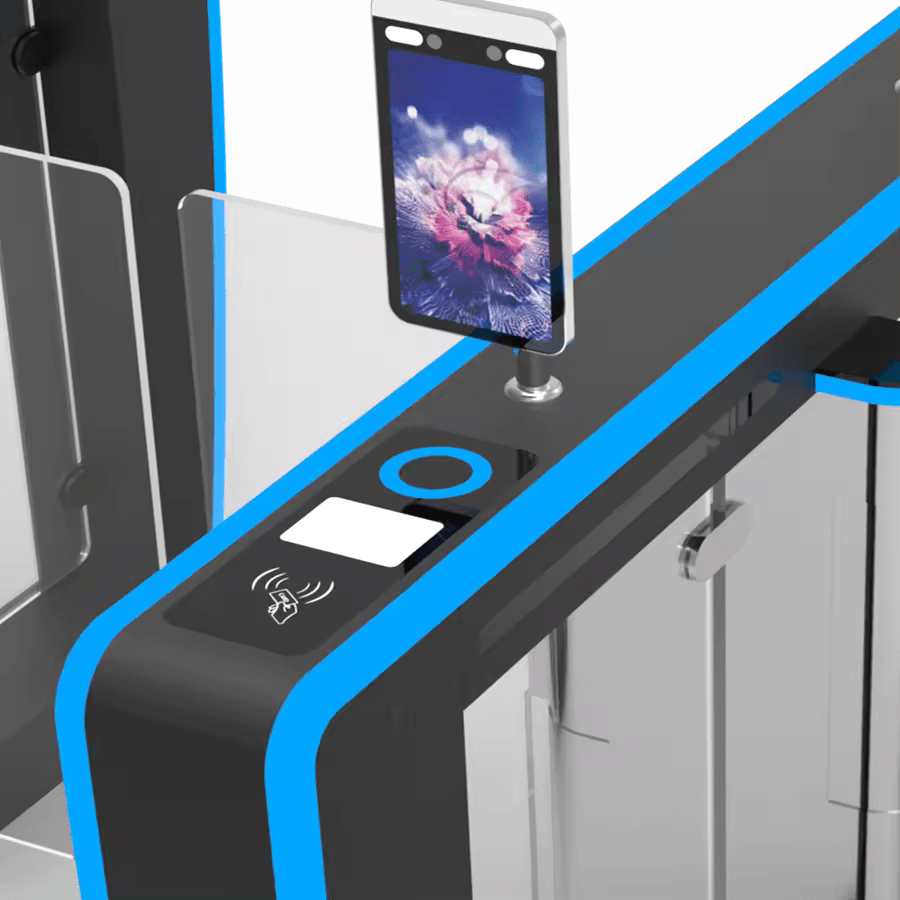

    Smallest Dc Brushless Motor Swing Barrier Acrylic Speed Gate 1

    Product features:

    1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.
    2. The running status of the device can be programmed through the built-in small button on the main control board;
    3. Mechanical structure, induction dual anti-pinch function, when the telescopic arm encounters resistance during the reset process. it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until the reset, and the force is very small(<2kg);
    4. sound and light alarm function: including illegal intrusion and trailing alarm;
    5. Anti-shock function, the telescopic arm will be automatically  locked when it does not receive the opening signal;
    6. The telescopic arm synchronization function;
    7. with automatic reset function. the system will automatically cancel the user’s permission for this pass after the gate is opened and the system does not pass within the specified time. The standard is automatic reset 5 seconds after opening;
    8. The channel is automatically opened after power off. and automatically closed after power on?
    9. It can be connected to a variety of card readers, and can receive relay switch signals to work;
    10. one-way or two-way control of personnel entry and exit:
    11. It can realize remote control and management directly through the management directly through the management computer;
    12. Extensible function: counting function: lengthened case. material selection of telescopic arm.

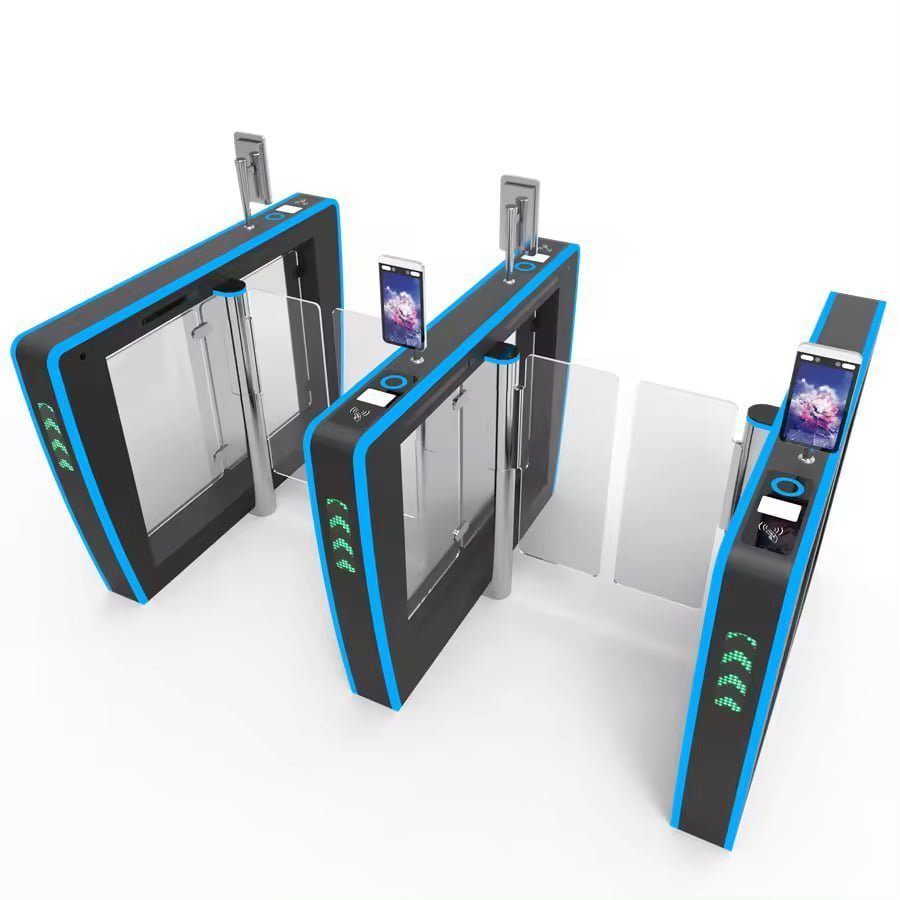

    Smallest Dc Brushless Motor Swing Barrier Acrylic Speed Gate 1

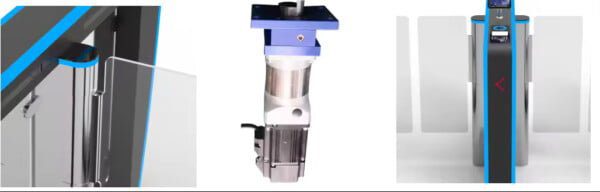

    Smallest Dc Brushless Motor Swing Barrier Acrylic Speed Gate 2

    Product Technical Parameters

    Model NumberMR SPT246
    MaterialSS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage input220V, 50H; (support adjustable)
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle core movement: 50KG / double core movement: 70KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
    Driving MotorDC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Special Functions1. support normally open, normally closed, power failure door opening, fire linkage.

    2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode.

    3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;

    1. The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance
    2. Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.
    Secondary development1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

    2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking  gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

    patentpatented design products patented movement utility model products

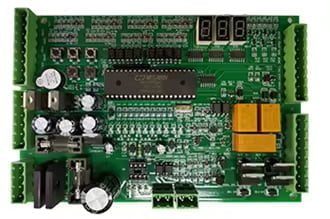

    Smallest Dc Brushless Motor Swing Barrier Acrylic Speed Gate 3

    Swing Barrier Turnstile Speed Gate Servo Motor RFID QR Fingerprint

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.
