DC Electronic Rolling Shutter Side Motor

DC Electronic Rolling Shutter Side Motor controller added safety edge can rebound when meets an obstacle and added infrared sensor can stop when meets an obstacle.

3 Items sold in last 2 days

Available on backorder

SEND US A MESSAGE

    CONTACT INFORMATION

    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add 35,000.00 and we will send you the order for free shipping!
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1

    Delivery

    720 People watching this product now!

    Payment Methods:

    2Q==

    Description

    DC Electronic Rolling Shutter Side Motor

    Notice If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you!

    Our MRTECH rolling shutters are widely used in areas where there is a shortage of electricity.  The DC Electronic Rolling Shutter Side Motor should be installed with a control box system. If there is a power failure the control system automatically switches to its built-in battery, so you can still use the remote. Control / push the button to open/close the doors several times.

    DC Electronic Rolling Shutter Side Motor Advantages

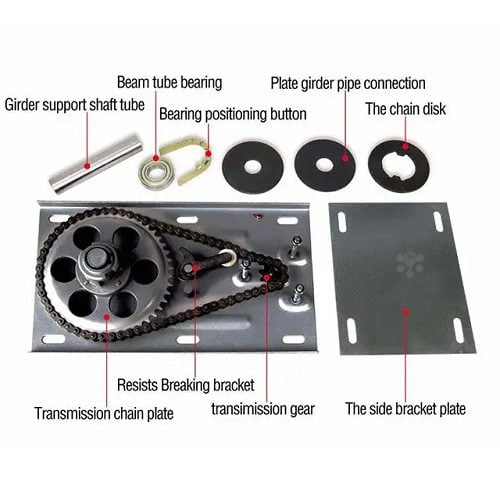

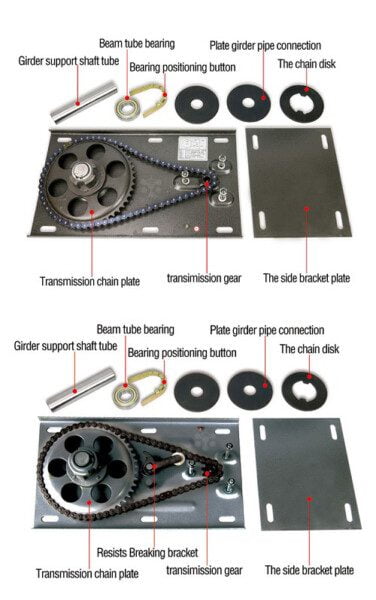

    DC Electronic Rolling Shutter Side Motor with Bracket 5

    Technical Specification:

    BrandMRTECH
    Model NoMR RSEDC300
    Product NameDC Electronic Rolling Shutter Side Motor
    Motor TypeSide Rolling Shutter Motor
    MaterialAluminum Alloy
    CertifiedGerman
    Input VoltageDC 24V
    Rated Current8A
    Rated Power220 W
    Output Speed3.5 r/min
    Output Torque168 N.m
    Lifting Capacity300 kg
    Rolling Tube Diameter4 “
    Max. Elevating Distance6 m
    Short-time Rating<15 Min
    Remote Control Distance>30m
    Type of Chain10A
    MOQ3 Set
    UsageGarage Shutter Door
    Package IncludedMotor, Battery, Radio frequency receiver, Remotes
    ApplicationResidential Houses, Jewellery Store, Commercials, Warehouses, Hospitals, Malls, etc.

    DC Electronic Rolling Shutter Side Motor

    DC Electronic Rolling Shutter Side Motor

    Advantages of  a General Mechanical motor vs Electronic limit switch:

    1. Controller: Controller function

    • Electronic Limit Motor: The electronic limit motor controller added safety edge can rebound when meets an obstacle, and the added infrared sensor can stop when meets an obstacle, and added safety edge
    • General mechanical motor: only controls the switch of the door.

    2. Switch: Switch is different

    • Electronic Limit Motor: A wireless password wall switch, which shortens the cable between the motor and the controller, and the controller can be installed near the motor and fixed on the wall by screw or double-sided tape, reducing installation of the excavation, buried lines, filing wall, rendering and other processes
    • General mechanical motor: ordinary mechanical limit switch cumbersome operation.

    DC Electronic Rolling Shutter Side Motor

    Optional Accessories for DC Electronic Rolling Shutter Side Motor:

    • Bluetooth controller.
    • Wi-Fi mobile access Controller.
    • RFID with Detector.
    • Fingerprint.
    • Vehicle LOOP Detectors.
    • Face Recognition.
    • Photocell sensor.
    • Electrical  Side lock and center Lock.
    • Bluetooth USB Controller.
    • Safety edge.
    • Safety Break system.

    DC Electronic Rolling Shutter Side Motor
