AC 380v Power 1000 kg Three Phase Industrial Door Motor
| Notice | Â If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |

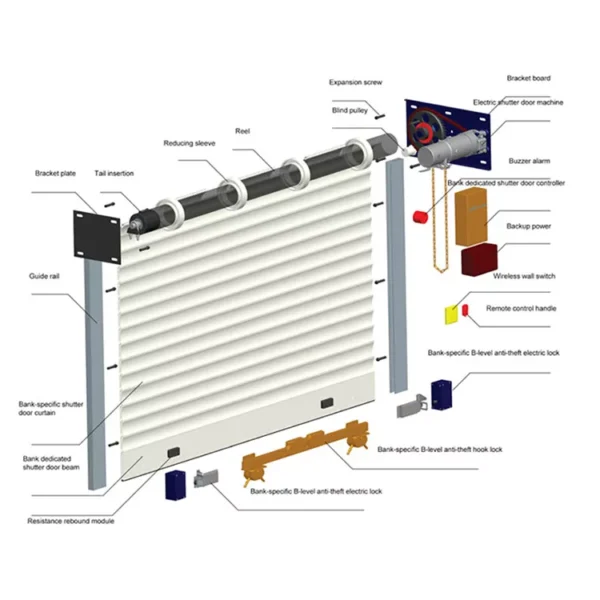

The industrial rolling shutter is commonly used in harsh environments and has a very large size. It is made from metal, aluminum, and steel. The industrial rolling shutter can be mechanically gear operated push-pull type, etc. They were used to protect against unwanted intruders, but they can also be used today to prevent theft by making it more challenging to break into a home or warehouse.
Specification:
| Brand | MRTECH |
| Model No | MR RSMAC10003P |
| Product Name | 380v Power 1000 kg Three Phase Industrial Door Motor |
| Motor Type | Side Rolling Shutter Motor |
| Certified | German |
| Material | Aluminum Alloy |
| Phase | Three Phase |
| Voltage | 380V 50HZ /220V 60HZ /460V 60HZ |
| Input power | 500 W |
| Max Lifting Force | 1000 Kg.f |
| Output Torque | 809 Nm |
| Output Speed | 4.4 r/min |
| Rated Current | 2.3 A |
| Max Elevating distance | 9 m |
| Max diameter of Roller | 0.54 m |
| Type of Chain | 12A |
| Weight of the main Machine | 13.8 Kg |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |

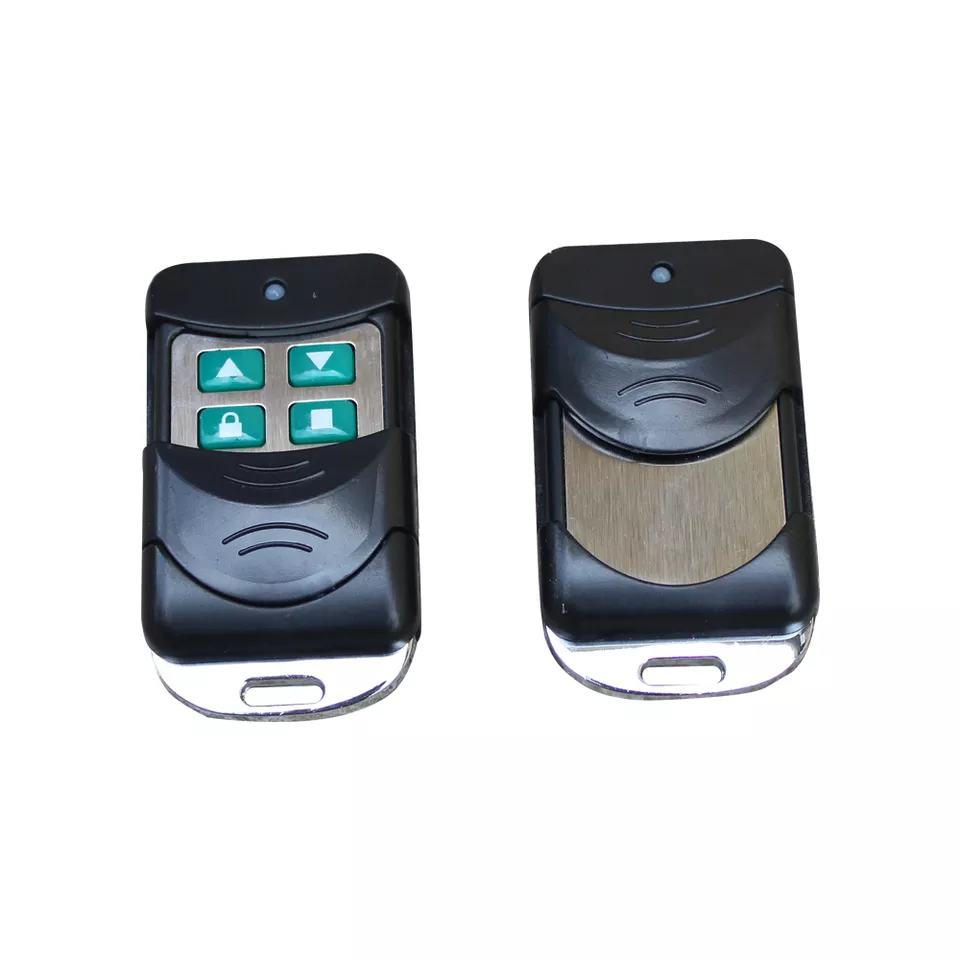

| Package Included | Motor, Control Board, Radiofrequency receiver, Remotes |
| Application |  Mobile showrooms, Hospitals, Apartments, Schools, Super Market, Shopping Malls, etc. |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
Best-selling Three phases Rolling Shutter door motors 1000kg – 3p, 1000kg -1p are available near Kerala.
