Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor

Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor swing arm compatible financial, inustial access control speed swing barrier

Quantity Price Discount
1-5  146,000.00 Piece 0%
6-15  140,160.00 Piece 4%
16-50  132,860.00 Piece 9%
51+  146,000.00 Piece  0.00
2 Items sold in last 2 hours

 132,860.00 211,120.00Piece

uiIvp8rjh5wAAAABJRU5ErkJggg== Double



    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add  31,850.00 and we will send you the order for free shipping!
    Items available:2
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1


    4389 People watching this product now!

    Payment Methods:



    Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor

    Swing Flap barriers are a type of turnstile that are commonly used to control access to a building or area. They are designed to allow one person to pas through at a time, and are often used in conjunction with other security measures such as security cameras or card readers.

    Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor

    1.  Only authorized persons can enter through the turnstile. The Three Arm Rod Runing to achieve the purpose such as anti-tailing.

    2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit.

    3.  The widen lane is optional for carrying luggage and wheelchair access.

    4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

    5. It with LED display screen and speaker to display the user information (which can be customized)

    6. after scaning card in normal condition, if within the permitting time passengers do not pass, the system will cancel the ” pass right and arm close automatically.

    7. Arm automatically open when the power off to make sure safety In case of emergency.

    8. optional for external counter to record the people numbers for each lane.

    Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor

    Product Technical Parameters

    Model NumberMR SPT250S
    MaterialSS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage input220V, 50H; (support adjustable)
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle core movement: 50KG / double core movement: 70KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared

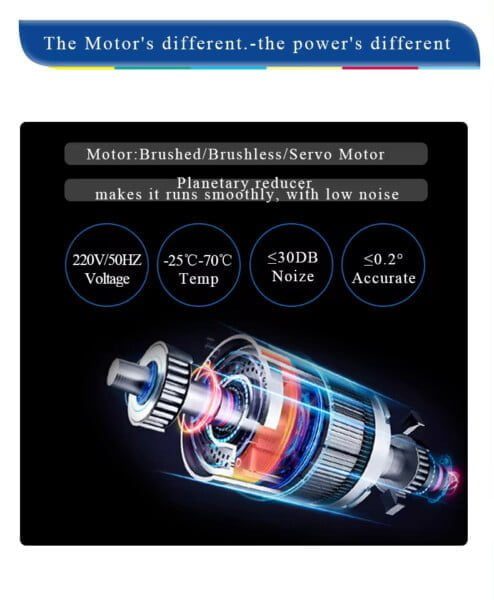

    Driving MotorDC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Special Functions1. support normally open, normally closed, power failure door opening, fire linkage.

    2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode.

    3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;

    1. The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance
    2. Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.
    Secondary development1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

    2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking  gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

    patentpatented design products patented movement utility model products

    Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor

    Hot Sale Automatic Acrylic Turnstile Dc 36v Brushless Servo Motor

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.
