    Description

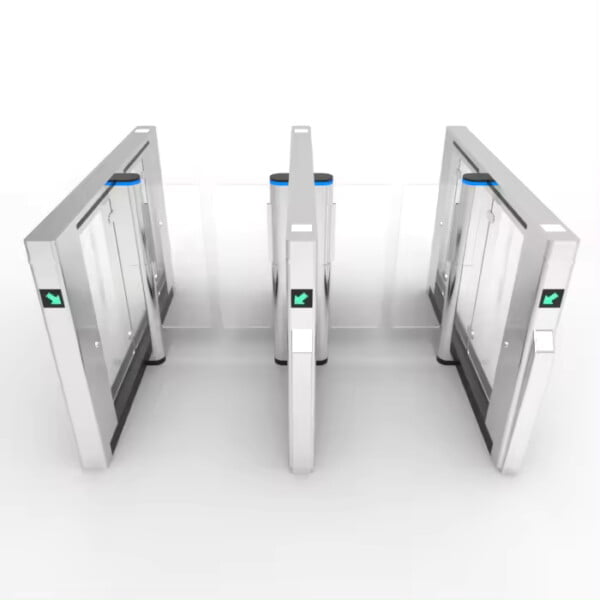

    Automatic Servo Motor Security Turnstiles High Speed Gate

    Each model of these security turnstiles features a unique design that can be customized to match the interior of any building. Whether you’re looking for a sleek, modern look or a more traditional aesthetic, the signature speed lane series has something to offer.

    Automatic Servo Motor Security Turnstiles High Speed Gate

    Product Technical Parameters

    Model NumberMR SPT228S
    size1000*168*1000mm
    MaterialSS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage input220V, 50H; (support adjustable)
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle core movement: 50KG / double core movement: 70KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
    Driving MotorDC Automatic Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Special Functions1. support normally open, normally closed, power failure door opening, fire linkage.

    2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode.

    3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;

    Advantages
    1. The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance
    2. Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.
    Secondary development1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

    2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking  gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

    patentpatented design products patented movement utility model products

    Automatic Servo Motor Security Turnstiles High Speed Gate

    Automatic Servo Motor Security Turnstiles High Speed Gate

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.

    Automatic Servo Motor Security Turnstiles High Speed Gate
