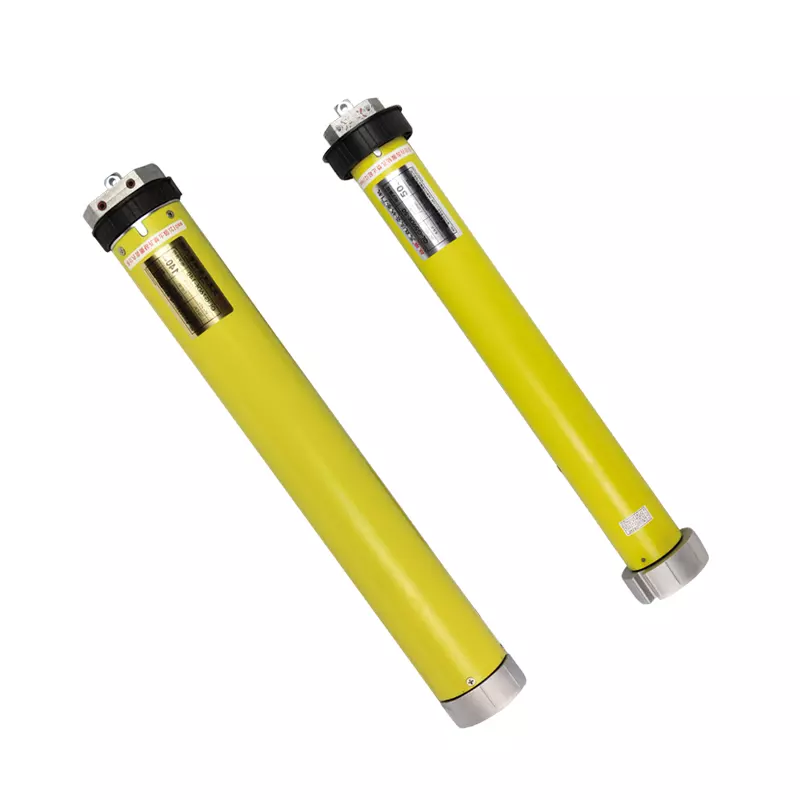

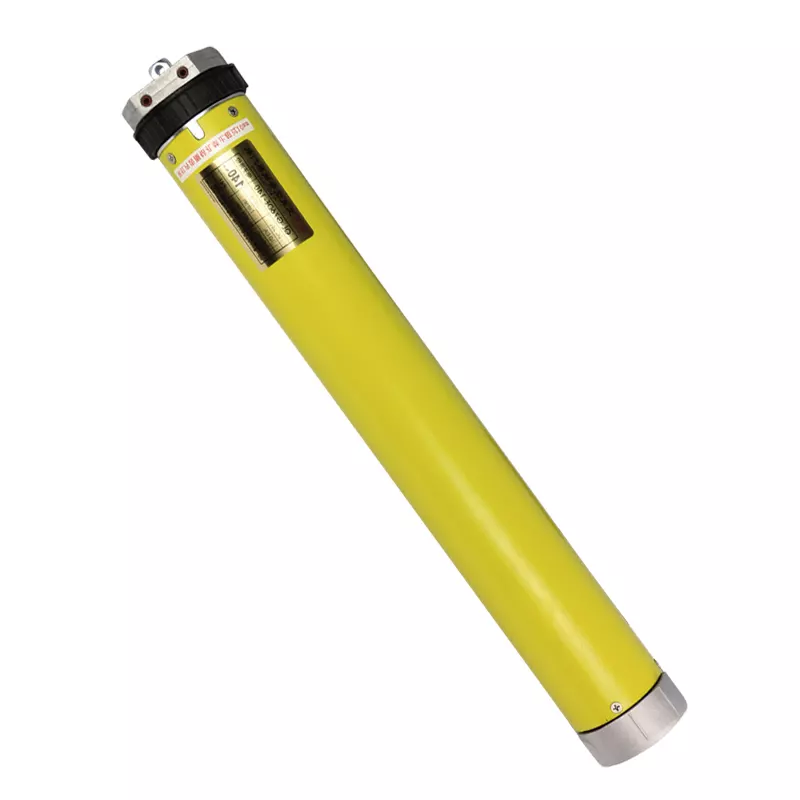

59MM Rolling Shutter Door DC Tubular Motor
A tubular motor is an electric motor embedded in a cylindrical form factor. They are typically used for window shades and blinds, projection screens, awnings, roller doors, etc.
Benefits Of Tubular Motor:
- Leading technology, novel design, advanced craft
- Precise limit, Electronic limit, stable performance, low noise
- Mechanical limit switches, Adjustable limit switch
- convenient installation and operation
- Special design for solving power failure and overheating protection
- DC tubular motor has an easier structure inside, so it will not break as easily as an AC tubular motor
- It can solve getting heat fast, support a long time working, so we can use it in special industry
DC Tubular Motor all the main components are built-in it is simple. novel. safe reliable and durable with small occupancy, and high hiding performance. smooth and precise limit braking
DC 24V 140N Tubular for Rolling Shutter Door Motor
| Model | Power Voltage | Motor Voltage | Rated Current ( A ) |
Rated Power ( W ) |
Output  Speed (r/min) |
Output Torque ( N.m ) |
Limit Revolution | Constant Working Time | Remote Control Distance |
| MR-RSTM59DC-50 | 220V 50Hz | DC 12V | 8.5 | 100 | 7 | 50 | 20 Turn | <5min | 30m |
| MR-RSTM59DC-60 | 220V 50Hz | DC 12V | 10 | 120 | 7 | 60 | 20 Turn | <5min | 30m |
| MR-RSTM59DC-80 | 220V 50Hz | DC 12V | 7 | 170 | 7 | 80 | 20 Turn | <5min | 30m |
| MR-RSTM59DC-100 | 220V 50Hz | DC 12V | 8.5 | 200 | 7 | 100 | 16 Turn | <5min | 30m |
| MR-RSTM59DC-140 | 220V 50Hz | DC 12V | 10 | 240 | 7 | 140 | 16 Turn | <5min | 30m |
Specification:
| ITEMÂ | DESCRIPTION |
| Brand Name | MR TECH |
| Model Number | MR-RSTM59 |
| Type | Automatic Door Operator |
| Name | Tubular Motor |
| Usage | Garage, Blinds, Shutter, Door, Window |
| Material | Aluminum alloy |
| Voltage | 240V |
| Input Power | 180W |
| Rated Current | 1.5A |
| Output Torque | 60 Nm |
| Output Speed | 15(r/min) |
| Max. Lifting | 50kg |
| Motor Weight | 8KG |
| Standard Tube | Â 59 mm |
| MOQ | 3 Set |
| Application | Residential, Commercials, Industrials |
| Accessories Included with Tubular Motor | Shaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit. |
| Optional Accessories | Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock Box with Key. |
Technical Parameters:

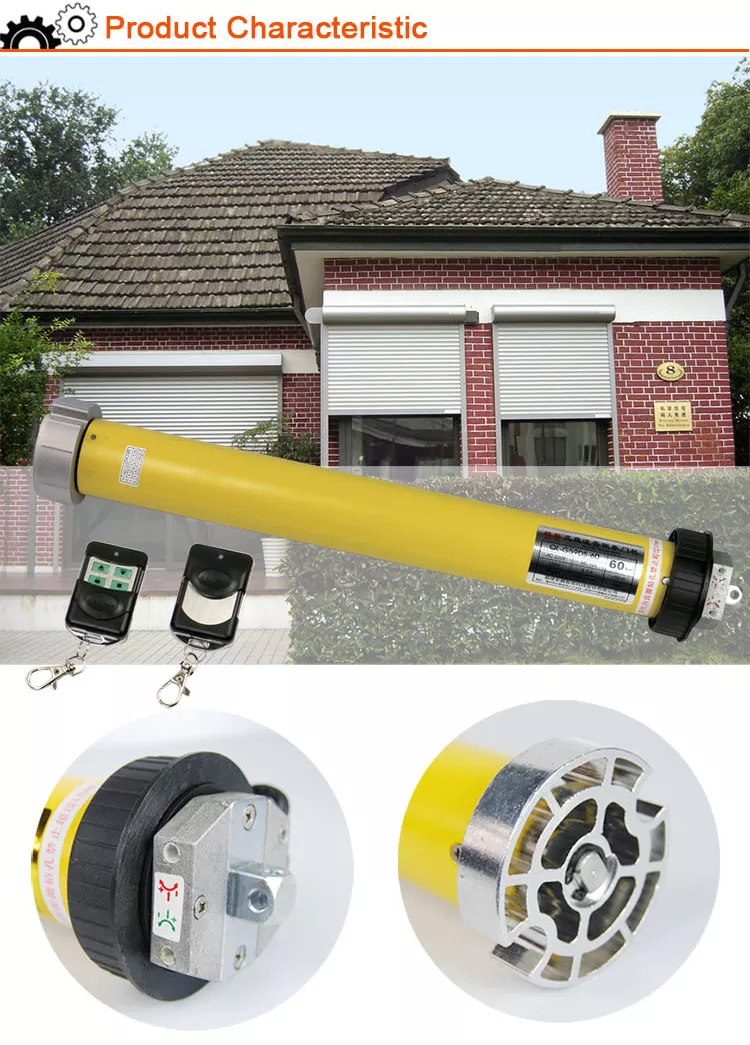

DC Tubular Motor for Rolling Shutter Characteristic
| AC 230V / 50Hz | |||||||
| Model | Rated Torque ( N.m ) |
Rated Speed ( r/min ) |
Rated Current ( A ) |
Rated Input Power ( W ) |
Degree of Protection | Running Time | Max. No. of Turns |
| MR-RSTM59M-60N | 60 | 15 | 1.45 | 330 | IP44 | 4 | 22 |
| MR-RSTM59M-80N | 80 | 15 | 1.67 | 380 | IP44 | 4 | 22 |
| MR-RSTM59M-100N | 100 | 12 | 1.68 | 386 | IP44 | 4 | 22 |
| MR-RSTM59M-120N | 120 | 10 | 1.7 | 390 | IP44 | 4 | 22 |
| MR-RSTM59M-140N | 140 | 9 | 1.75 | 396 | IP44 | 4 | 22 |
| MR-RSTM59M-160N | 160 | 7 | 1.9 | 400 | IP44 | 4 | 22 |
| AC 120V / 60Hz | |||||||
| Model | Rated Torque ( N.m ) |
Rated Speed ( r/min ) |
Rated Current ( A ) |
Rated Input Power ( W ) |
Degree of Protection | Running Time | Max. No. of Turns |
| MR-RSTM59M-60N | 60 | 15 | 2.76 | 325 | IP44 | 4 | 22 |
| MR-RSTM59M-80N | 80 | 15 | 3.11 | 375 | IP44 | 4 | 22 |
| MR-RSTM59M-100N | 100 | 12 | 3.16 | 380 | IP44 | 4 | 22 |
| MR-RSTM59M-120N | 120 | 10 | 3.2 | 385 | IP44 | 4 | 22 |
| MR-RSTM59M-140N | 140 | 9 | 3.3 | 390 | IP44 | 4 | 22 |
| MR-RSTM59M-160N | 160 | 7 | 3.4 | 395 | IP44 | 4 | 22 |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
12v dc tube tubular motors 24v 50 nm dc tubular motor for rolling shutter
Prevent going over the limit.
Absolute value, more precise limit for more safety.
More convenient.
Only a simple operation in the receiver can finish adjusting the limit position.
More efficiency.
Only need one up and one down to finish setting the limit, saving much more time comparing a classic motor.
Much lower noise.
Use 7th-degree gear, higher precision, less wear, more efficiency, lower noise, and longer use time.
More convenient.
Only a simple operation in the receiver can finish adjusting the limit position.
More efficiency.
Only need one up and one down to finish setting the limit, saving much more time comparing a classic motor.
Much lower noise.
Use 7th-degree gear, higher precision, less wear, more efficiency, lower noise, and longer use time.
- electronic limit, absolute value, and precision positioning
- prevent rushing out of a limited position
- Lower noise
- wireless password wall switch. it shortens the controller and motor cables controller can be installed fixed on the wall by screw or double-sided tape, reducing installation of the excavated buried lines filing wall rendering, and other processes
Optional Products for Tubular Roller Shutter Motor:
Wireless Safety Edge
In the state of closing, when the door meets with an obstacle, trigger the stop switch, it can be stopped and bounds to the top( rebound state stops when meeting obstacle/rebound times is O 5s rebound times 2s rebound to upper limit)
Infrared Sensor
When the infrared ray meets obstacles, the door doesn’t move. hen the door running the infrared ray meets the obstacle, adjust the dip switch(the dip switch is on the infrared sensor to achieve the functions of stopping when meeting an obstacle. rebound times for 0.5s/2s or rebound to upper limit
Electronic Side Lock
Electronic Side Lock When the door closes to the down limit and is automatically locked, press the up key when opening the door, and electric locks automatically open, the door up. Open the door without the key, people can’t pry, safer, make sure safety.
