Residential Rolling Shutter Motor 300kg
| Notice | Â If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
AC Rolling shutter motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC Shutter motors are typically more efficient and make better use of their input energy.
Specification:
| Brand | MRTECH |
| Model No | MR RSMAC300 |
| Product Name | Residential Rolling Shutter Motor 300kg |
| Motor Type | Side Rolling Shutter Motor |
| Certified | German |
| Material | Aluminum Alloy |
| Phase | Single Phase |
| Voltage | 220V 50HZ /220V 60HZ /110V60HZ |
| Input power | 495 W |
| Max Lifting Force | 300 Kg.f |
| Output Torque | 168 Nm |
| Output Speed | 5.5 r/min |
| Rated Current | 3.3 A |
| Max Elevating distance | 6 m |
| Max diameter of Roller | 0.42 m |
| Type of Chain | 08A |
| Weight of the main Machine | 11.8 Kg |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |
| Package Included | Motor, Radiofrequency Receiver, Remotes |
| Application | Residential, Industrial, Commercials, Warehouses, Hospitals, Malls, etc. |

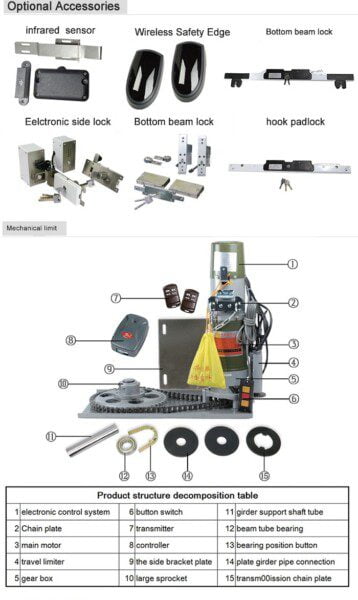

| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
The function of Residential Rolling Shutter Motor 300kg:
- All of the components are well-designed and strictly controlled. The motor shells are pressure-cast with high-strength aluminum alloy materials, light and durable.
- The reduction gear is made in high-class cup rum alloy proceeding and special treatment. The solenoid brake components are made of brake material of the advanced ar, which ensures the brake safety when the power off suddenly.
- The mechanic Limit switch adjusts the door position in Both “up and Down’ precisely and safely.
We have surplus Stock of AC Rolling Shutter Door Motor: 300KG-1p, 400KG-1p, 500KG-1p, 600KG-1p, 800KG-1p, 1000KG-1p, and 1500KG-1p and we deliver all over India.
