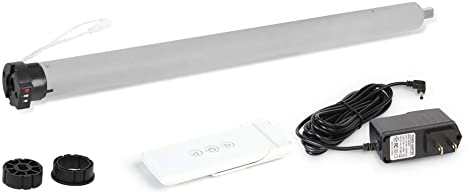

Roller Shutter Door Tubular Motor MR-RSTM45

Roller Shutter Door Tubular Motor is perfect for residential and commercial applications, providing convenience and security.

3 Items sold in last 2 days

SEND US A MESSAGE

    CONTACT INFORMATION

    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add 35,000.00 and we will send you the order for free shipping!
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1

    Delivery

    1270 People watching this product now!

    Payment Methods:

    2Q==

    Description

    Roller Shutter Door Tubular Motor MR-RSTM45

    The new super quiet motion drive for roller shutters in the wired version with two selectable running modes: standard running or whispering mode. Gentle operation is ensured by protection of the blind, intelligent force measurement and soft brake.

    Roller Shutter Door Tubular Motor MR RSTM45 Installation Diagram 5 e1670986537421

    Roller Shutter Door Tubular Motor designed for blinds, roller shutters, rolling doors and curtains, allows the application of several accessories to operate with all types of tubes. It is available in various diameters (35, 45, 59, and 92), with or without a built-in control board and with or without a manual crank.

    Roller Shutter Door Tubular Motor MR RSTM45 Installation Diagram 8 e1670986564813

    Roller Shutter Door Tubular Motor Features:

    • Standard Type, Traditional Type
    • Lower Noises
    • used for awnings, roller blinds, roller shutters, rolling doors, etc.
    • Mechanical limit switches, Adjustable limit switch
    • convenient installation and operation
    • Special design for solving power failure and overheating protection
    • Roller Shutter Door Tubular Motor are with Stable quality with an attractive price

    Roller Shutter Door Tubular Motor MR RSTM45 Installation Diagram 6 e1670986603792

    Specification:

    ITEM DESCRIPTION
    Brand NameMRTECH
    Model NumberMR-RSTM45
    TypeAutomatic Door Operator
    NameTubular Motor
    UsageGarage, Blinds, Shutter, Door, Window
    MaterialAluminum alloy
    Voltage230V
    Input Power158W∼282W
    Rated Current0.70A∼1.25A
    Output Torque8Nm ∼ 50Nm
    Output Speed12(r/min)
    Max. Lifting 35kg
    Motor Weight5KG
    Standard Tube  2 inch
    MOQ3 Set
    ApplicationResidential, Commercials, Industrials

    Accessories Included with Tubular MotorShaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit.
    Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock Box with Key.

    Roller Shutter Door Tubular Motor MR RSTM45 Installation Diagram 7 e1670986580194

    Performance of Roller Shutter Door Tubular Motor:

    1. Operation voltage range from 180 to 240v allows using tubular motors in the networks with unstable voltage.
    2. Motors of electric drive are equipped with electric brake which provides accuracy of stopping in the end positions and performs functions of the lock.
    3. Electric motors of 45mm series are designed for automation of roller shutters with leaf weighing up to 60kg and a shaft with diameter of 60, 70mm. The Drive has a built-in reducer of emergency opening that allows you to control roller shutters in the absence of power in the network
    4. Limit Switches have highly accurate and reliable performance due to its metal gears and axes resistant to wear.
    5. 3-stage planetary reducer, gears of which are made of high strength steel is located inside the case. Their durability ensures long service life.

    Roller Shutter Door Tubular Motor MR RSTM45 Installation Diagram 5 e1670986622885

    Technical Parameters of Roller Shutter Door Tubular Motor:

    ModelRated Torque
    (N.m)
    Rate Voltage
    (V)
    Rated Frequency
    (Hz)
    Rated Power Input
    (W)
    Tube Diameter
    (mm)
    Rated Current
    (A)
    Running Time
    (min)
    Rated Speed
    (rpm)
    Protection Index
    (IP)
    Insulation
    MR-RSTM45823050158920.70S2 4min12/17Ip44class F
    1023050162920.75S2 4min12/17Ip44class F
    1523050170920.78S2 4min12/17Ip44class F
    2023050178920.80S2 4min12/17Ip44class F
    3023050235921.05S2 4min12Ip44class F
    4023050276921.23S2 4min12Ip44class F
    5023050282921.25S2 4min12Ip44class F



    Roller Shutter Door Tubular Motor MR RSTM45 Installation Diagram 5
