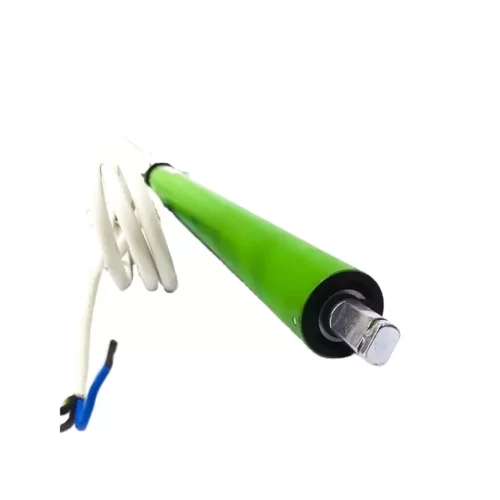

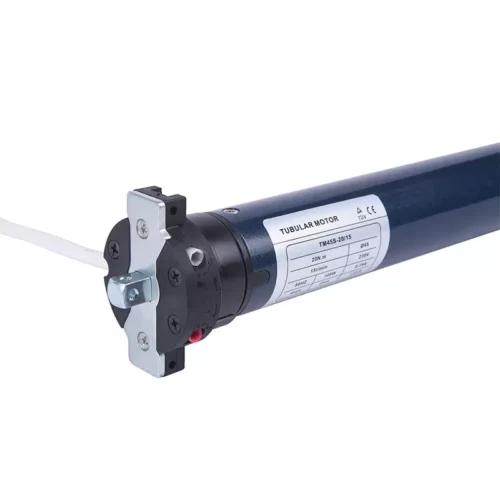

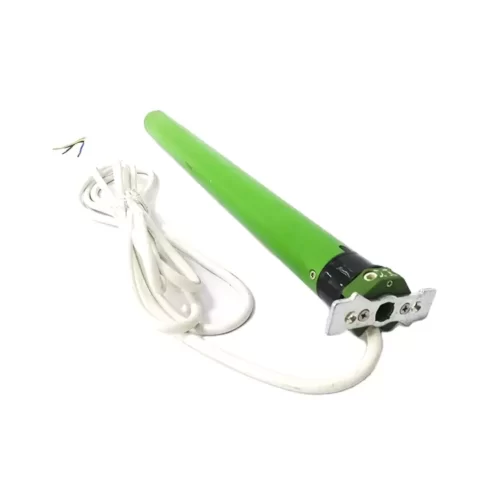

Roller Shutter Tubular Motor MR-RSTM35


Roller Shutter Tubular Motor MR-RSTM35mm with efficient, durable and powerful motor for secure operation of your shutter doors.

Roller Shutter Tubular Motor MR-RSTM35

Roller Shutter Tubular Motor MR-RSTM35 Installation Diagram

Roller Shutter Door Tubular Motor designed for blinds, roller shutter, rolling door and curtain, allows the application of several accessories to operate with all types of tubes. It is available in various diameters (35, 45, 59, and 92), with or without built-in control board and with or without manual crank

The new super quiet motion drive for roller shutters in the wired version with two selectable running modes: standard running or whispering mode. Gentle operation is ensured by protection of the blind, intelligent force measurement and soft brake.

Roller Shutter Tubular Motor MR-RSTM35 Installation Diagram

Performance of Roller Shutter Tubular Motor MR-RSTM35

  1. Operation voltage range from 180 to 240V allows using tubular motors in the networks with unstable voltage.
  2. Motors of the electric drive are equipped with an electric brake which provides an accuracy of stopping in the end positions and performs the functions of the lock.
  3. Electric motors of 35mm series are designed for the automation of roller shutters with leaves weighing up to 20kg and a shaft with a diameter of 40 mm. The Drive has a built-in reducer of emergency opening that allows you to control roller shutters in the absence of power in the network
  4. Limit Switches have highly accurate and reliable performance due to its metal gears and axes resistant to wear.
  5. Roller Shutter Tubular Motor MR-RSTM35 offers a 3-stage planetary reducer, the gears of which are made of high-strength steel is located inside the case. Their durability ensures long service life



Roller Shutter Tubular Motor MR-RSTM35 Installation Diagram

Specification:

ITEM DESCRIPTION
Brand NameMRTECH
Model NumberRoller Shutter Tubular Motor MR-RSTM35
TypeAutomatic Door Operator
NameTubular Motor
UsageGarage, Blinds, Shutter, Door, Window
MaterialAluminum alloy
Voltage230V
Input Power135W∼180W
Rated Current0.63A∼0.78A
Output Torque3Nm ∼ 14Nm
Output Speed17/30(r/min)
Max. Lifting 25kg
Motor Weight3.5KG
Standard Tube  1.5″ inch
MOQ3 Set
ApplicationResidentials, Commercials, Industrials

Accessories Included with Roller Shutter Tubular Motor MR-RSTM35Shaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock Box with Key.

Roller Shutter Tubular Motor MR-RSTM35 Installation Diagram

Technical Parameters of Roller Shutter Door Tubular Motor:

ModelRated Torque
(N.m)
Rate Voltage
(V)
Rated Frequency
(Hz)
Rated Power Input
(W)
Tube Diameter
(mm)
Rated Current
(A)
Running Time
(min)
Rated Speed
(rpm)
Protection Index
(IP)
Insulation
MR-RSTM45823050158920.70S2 4min12/17Ip44class F
1023050162920.75S2 4min12/17Ip44class F
1523050170920.78S2 4min12/17Ip44class F
2023050178920.80S2 4min12/17Ip44class F
3023050235921.05S2 4min12Ip44class F
4023050276921.23S2 4min12Ip44class F
5023050282921.25S2 4min12Ip44class F

Roller Shutter Tubular Motor MR-RSTM35 Features:

  • Standard Type, Traditional Type
  • Lower Noises
  • used for awnings, roller blinds, roller shutters, rolling doors, etc.
  • Mechanical limit switches, Adjustable limit switch
  • convenient installation and operation
  • Specially designed Roller Shutter Tubular Motor MR-RSTM35 for solving power failure and overheat protection
  • Stable quality with an attractive price
TECHNICAL DATA
AC 230V/50HZ
Type
Rated Torque
Rated Speed
Rated Current
Rated Power Input
Degree of Protection
Running Time
MAX Number of Turns
MR-RSTM35S-6N
6
28
0.6
140
IP44
4
39
MR-RSTM35S-10N
10
17
0.6
140
IP44
4
39
MR-RSTM35S-13N
13
17
0.8
140
IP44
4
39
AC 120V/60HZ
Type
Rated Torque
Rated Speed
Rated Current
Rated Power Input
Degree of Protection
Running Time
MAX Number of Turns
MR-RSTM35S-6N
6
33
0.88
105
IP44
4
39
MR-RSTM35S-10N
10
20
0.88
105
IP44
4
39
MR-RSTM35S-13N
13
17
1.08
110
IP44
4
39
ITEM DESCRIPTION
Brand NameMRTECH
Model NumberRoller Shutter Tubular Motor MR-RSTM35
TypeAutomatic Door Operator
NameTubular Motor
UsageGarage, Blinds, Shutter, Door, Window
MaterialAluminum alloy
Voltage230V
Input Power135W∼180W
Rated Current0.63A∼0.78A
Output Torque3Nm ∼ 14Nm
Output Speed17/30(r/min)
Max. Lifting 25kg
Motor Weight3.5KG
Standard Tube  1.5″ inch
MOQ3 Set
ApplicationResidentials, Commercials, Industrials
Accessories Included with Roller Shutter Tubular Motor MR-RSTM35Shaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock Box with Key.
