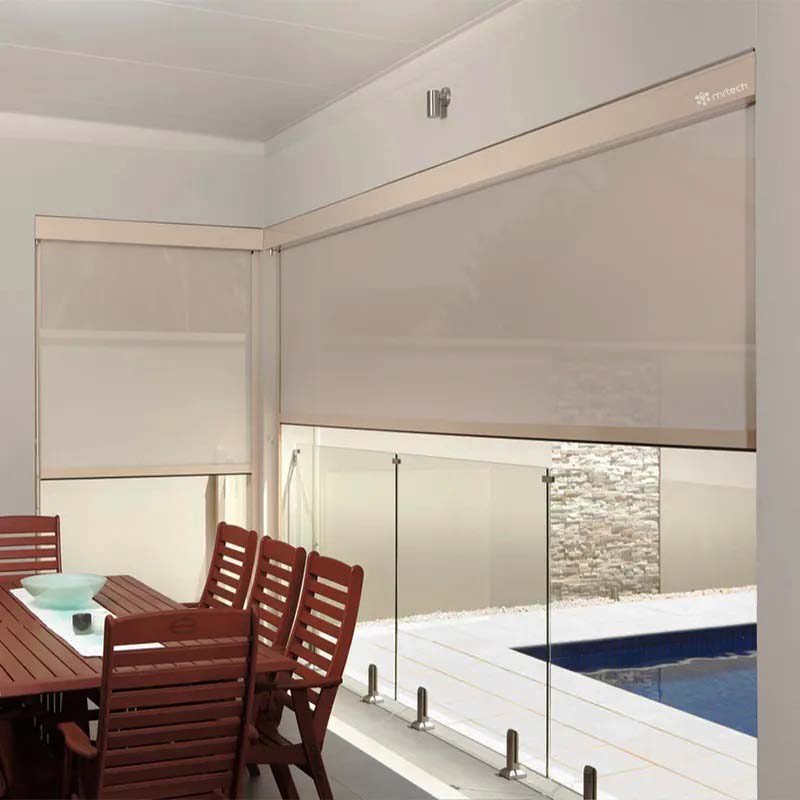

Wifi Tubular Motor with Roller Blinds for Windows
Wifi tubular motors upgrade standard manual blinds into smart, automated shades. They slide directly inside your existing blind tube. You can control them via mobile apps or voice assistants. They automatically open or close based on your set schedules or routines.
How a Tubular Motor Works

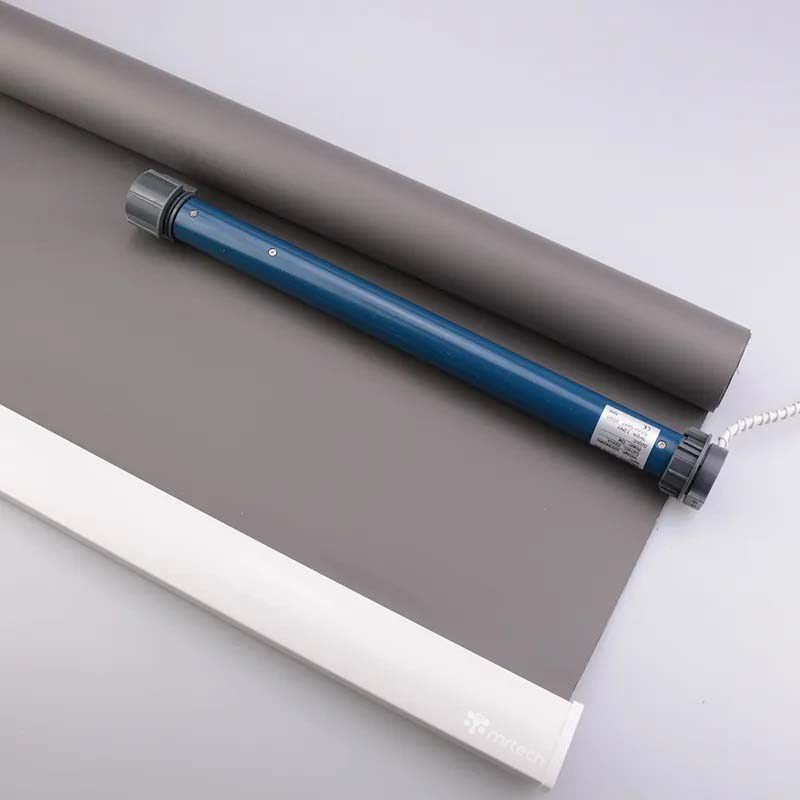

A tubular motor is a small cylinder. It hides completely inside the metal tube that holds your window fabric. When the motor spins, it rolls the fabric up or down, just like a paper towel roll.
Why You Need Wi-Fi Integration
- Unlike older remote-controlled motors that need an extra “bridge” or hub, Wi-Fi motors connect directly to your home router.
- App Control: Open and close your blinds from anywhere using apps like Tuya or Smart Life.
- Voice Commands: Connect your motor to voice assistants like Amazon Alexa, Google Assistant, or Apple Siri.
- Automation: Set up daily schedules. For example, have your blinds open at sunrise to wake you up, or close at sunset to block out heat and light.
Types of Tubular Motors
- Battery-Powered: These use built-in rechargeable batteries. You charge them once every 3 to 6 months with a standard USB cable. They are perfect if you do not have a power outlet near your window.
- AC-Powered (Wired): These plug directly into a wall outlet or are wired into your home’s electrical grid. They provide constant, maintenance-free power.

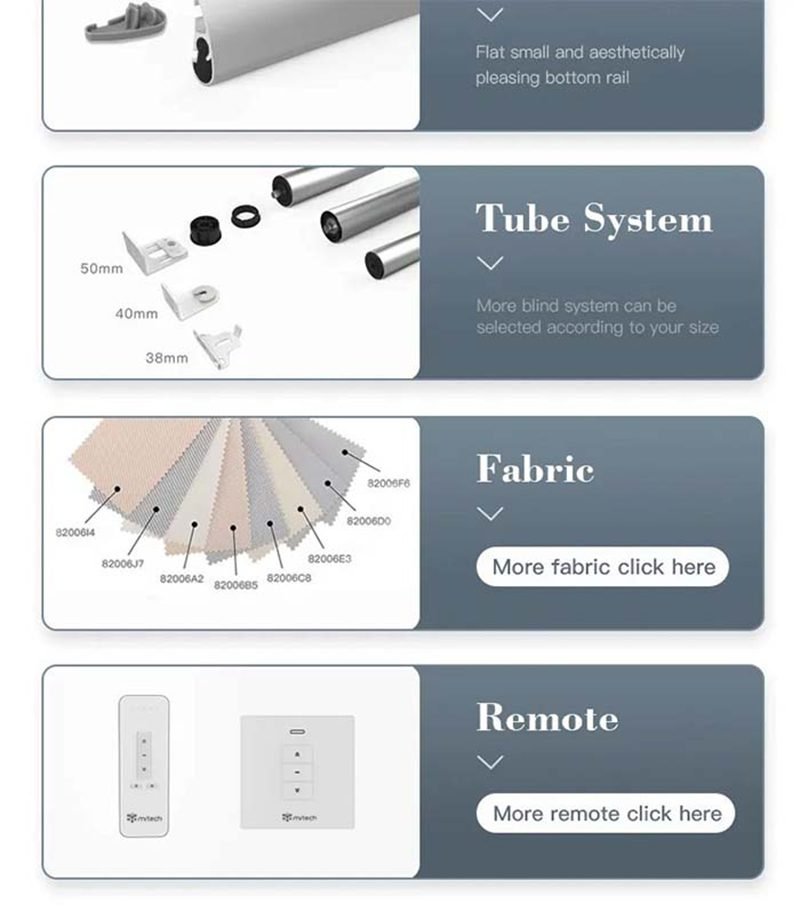

- Sizing: Motors come in different widths (like 25mm, 35mm, or 38mm) to fit inside various tube diameters.
For a step-by-step look at how to mount and configure a tubular motor inside a standard roller blind tube
Windows Blinds vs Curtains?
Window Treatment let you control lights, privacy, and indoor temperature while complementing your decor. while you’ve got a variety of options to choose from, blinds, which feature movable slats, and curtains or drapes, made of fabric panels, are among the most popular. Blinds and curtains each come with particular benefits and drawbacks.
Specifications:
| Brand | MR. TECH |
| Model No | MR-RBTM03 |
| Product Name | Wifi Tubular Motor with Roller Blinds for Windows |
| Motor Type | Tubular Motor |
| Operating Voltage | AC 110V-240V |
| Rated Torque | 6 Nm |
| Rated Speed | 28 RPM |
| Rated Power | 6.7 W |
| Rated Current | 900 MA |
| Max. Width | 3 M |
| Max. Height | 6 M |
| Min. Width | 0.53 M |
| MOQ | 5set |
| Application | Residential, Commercial, Government offices, office rooms, hospitals, etc. |

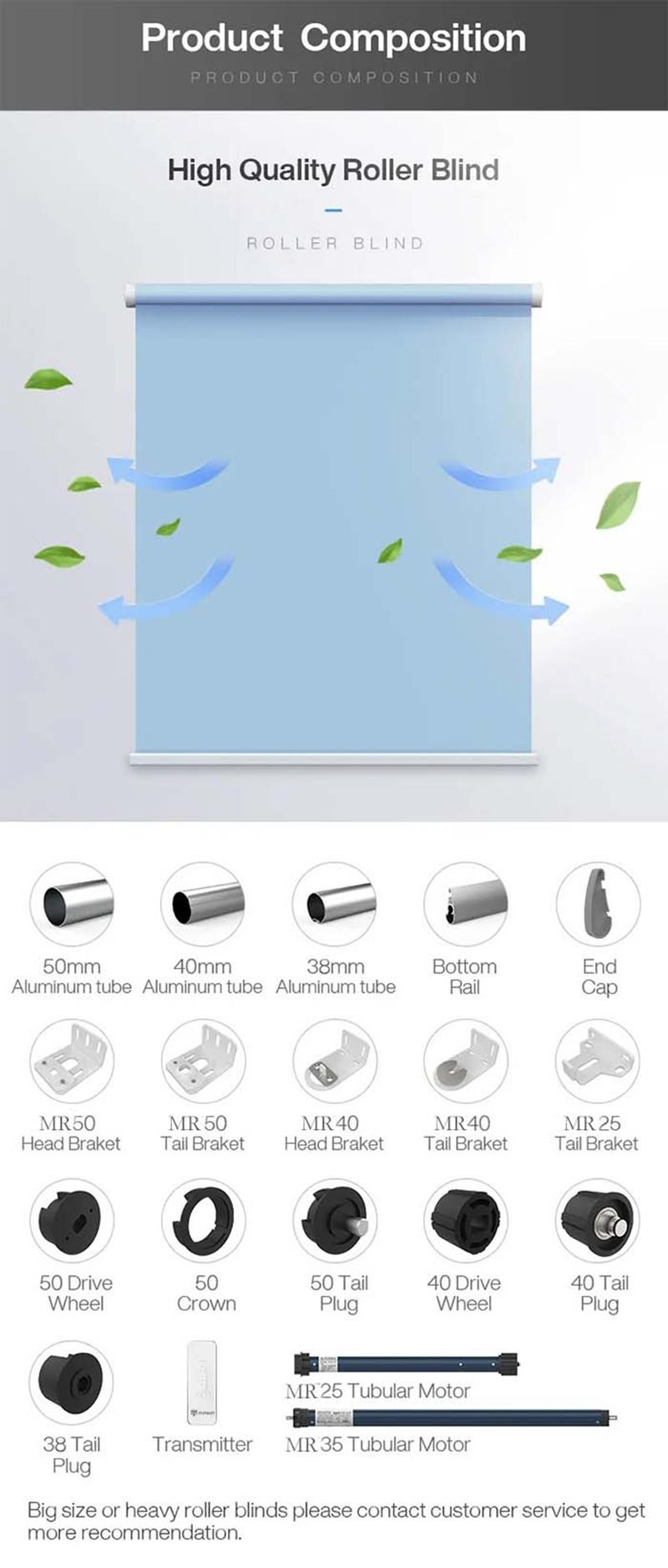

| Accessories Included with Tubular Motor | Shaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit. |
| Optional Accessories | Sun sensor, Rain Sensor, Wind sensor, Weather sensor, Photo Sensor, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), etc. |
Features of Wifi Tubular Motor with Roller Blinds for Windows:
Almost any window treatment in your house can be motorized. with just a click of a button, you can control any shade, anywhere in the house. There are some obvious reasons why this is a good idea.
- Effortlessness and safe.
- Hard to reach windows.
- Conveniently manage glare
- Reduced energy costs
- Increased security

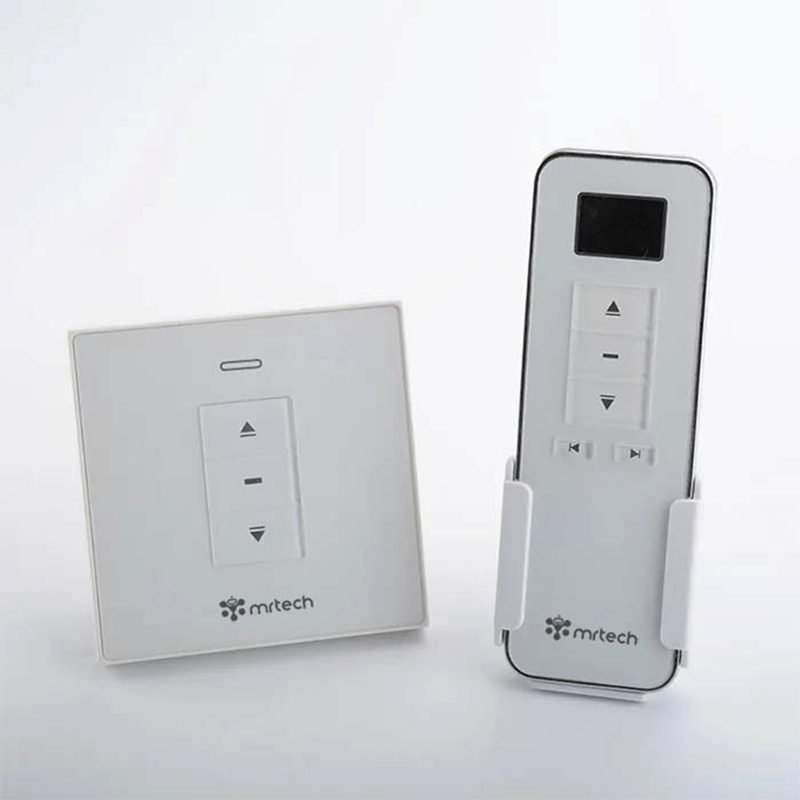

- The speed you can choose is a wall switch or remote controller to reach single control or group controls.
